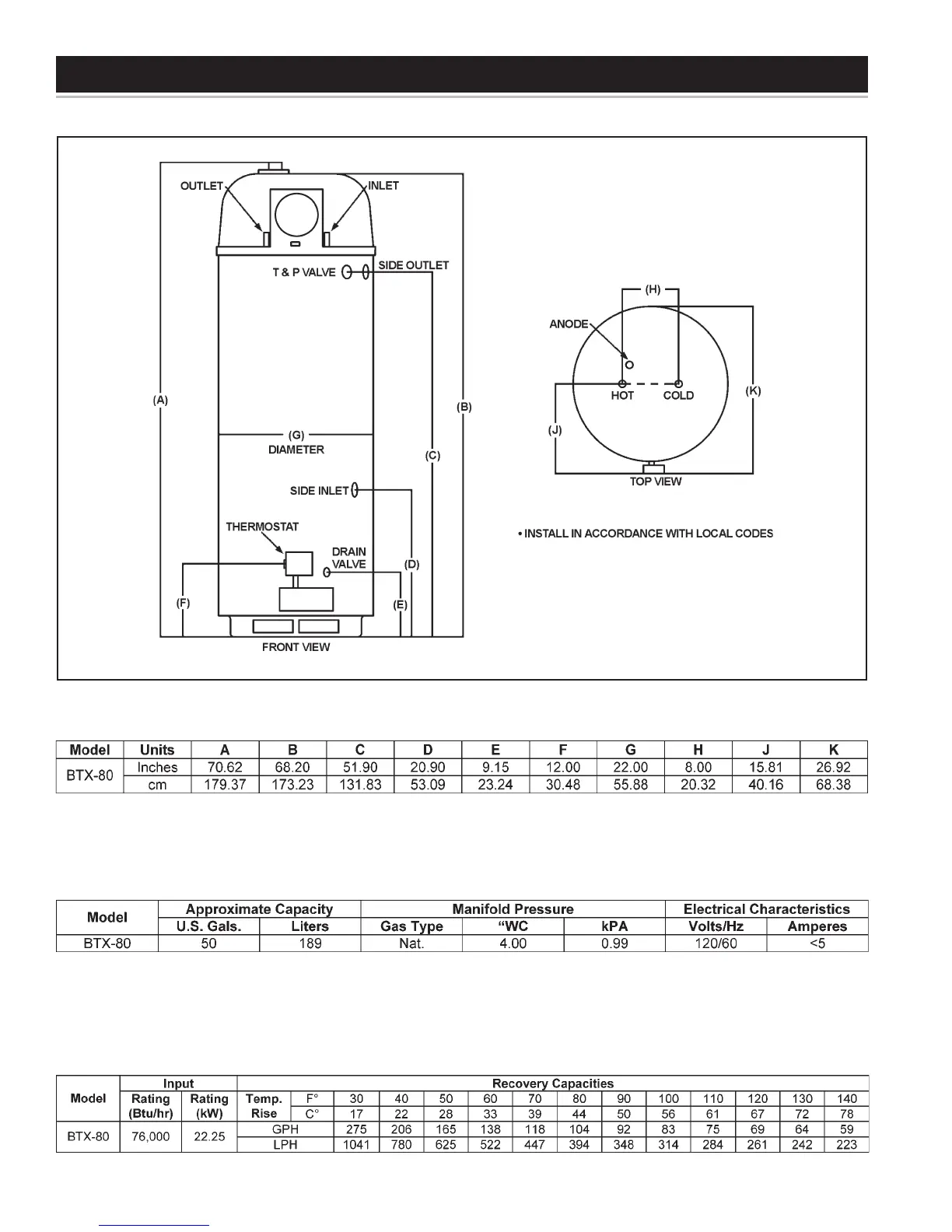

ROUGH-IN-DIMENSIONS
Rough-In-Dimensions
Top/SideInletandOutlet:3/4”NPT
GasInlet:1/2”NPT
Capacity and Gas and Electrical Characteristics
Allmodels-MaximumSupplyPressure:14inchesW.C.(3.48kPa)
MinimumSupplyPressureNaturalGas:5.0inchesW.C.(1.24kPa)
MinimumPressuremustbemaintainedunderbothloadandnoload(staticanddynamic)conditions.
Recovery Capacities - U.S. Gallons/Hr. and Liters/Hr. at Temperature Rise Indicated
Recoverycapacitybasedon90%thermalefciency.
