Aaeon EMB-H81B - Serial ATA 6.0 Gb;s Connectors; Speaker Connector; Minicard Connectors

EMB-H81B
2-22

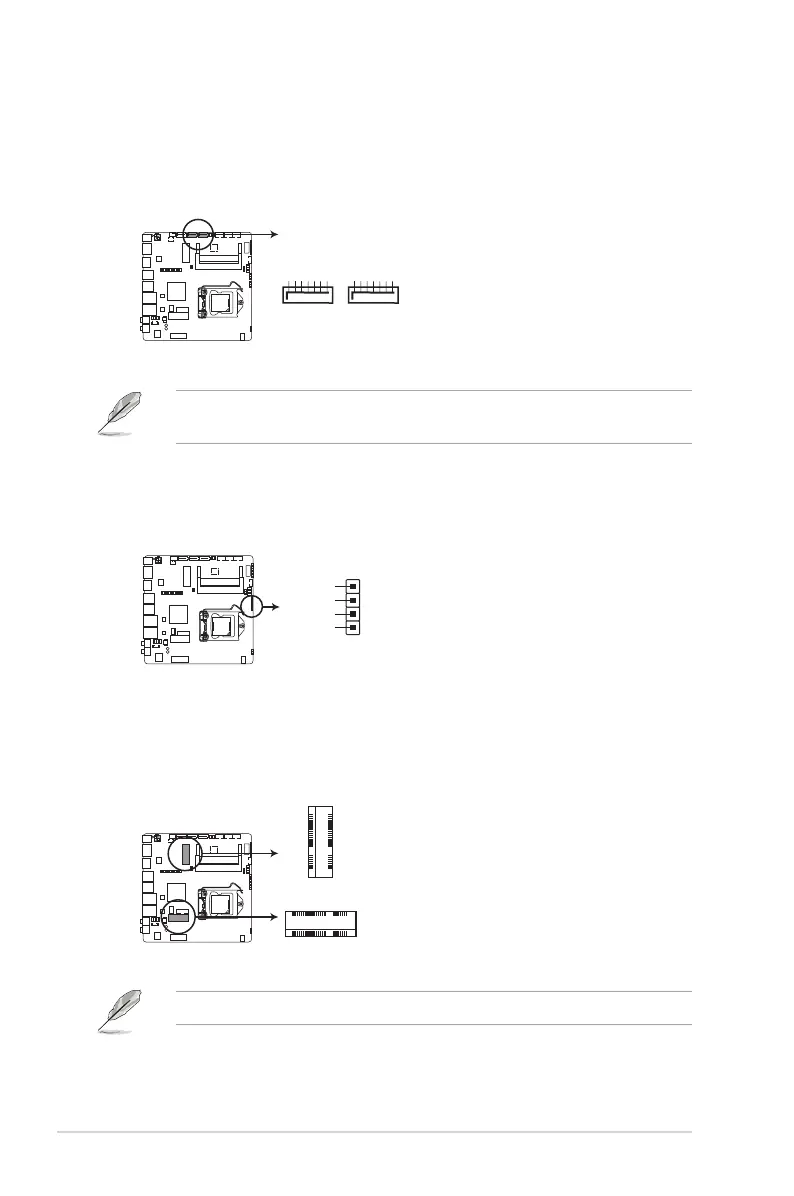

12. Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1/2)
TheseconnectorconnectstoSerialATA6.0Gb/sharddiskdrivesoran
opticaldriveviaSerialATA6.0Gb/ssignalcables.
NOTE:YoumustinstallWindows
®
XPServicePack3orlaterversionbefore
usingSerialATAharddiskdrives.
13. Speaker connector (4-pin SPEAKER)
The4-pinconnectorisforthechassis-mountedsystemwarningspeaker.Thespeaker
allows you to hear system beeps and warnings.
14. Minicard connectors
UsetheseconnectorstoconnectaMinicarddevice.
EMB-H81B SATA 6.0Gb/s connectors
SATA6G_2
GND
RSATA_RXP2
RSATA_RXN2
GND
RSATA_TXN2
RSATA_TXP2
GND
SATA6G_1
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1
GND
EMB-H81B Speaker Out connector
Speaker Out
GND
GND
+5V
SPEAKER
PIN 1
NOTE: TheMinicarddeviceispurchasedseparately.
EMB-H81B MINICARD connectors
MINICARD2 (mSATA)
MINICARD1 (PCIe + USB)
