Aaeon EMB-H81B - Battery Connector; Backlight Inverter Power Connector

2-25
Chapter 2: Motherboard information
18. Battery connector (2-pin BATTERY1)
ThisconnectorisforthelithiumCMOSbattery.
19. Backlight inverter power connector (5-pin INV)
Connectthebacklightinverterpowercabletothisconnector.
NOTE: Thebacklightinverterpowercableandtheinvertermoduleare
purchased separately.

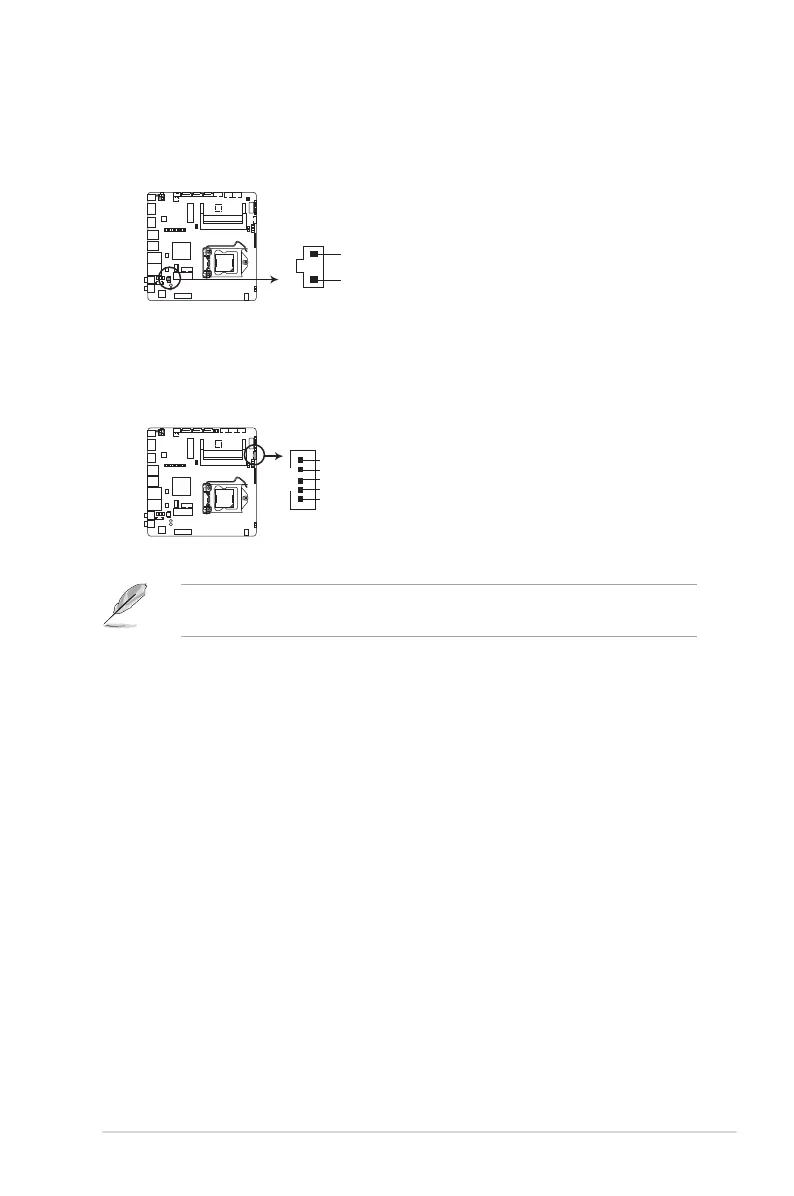

EMB-H81B Battery connector
GND
+BAT
PIN 1
BATTERY1
EMB-H81B Inverter connector
Back Light Enable
GND
GND
Back Light Control
Inverter VCC
PIN1
INV
