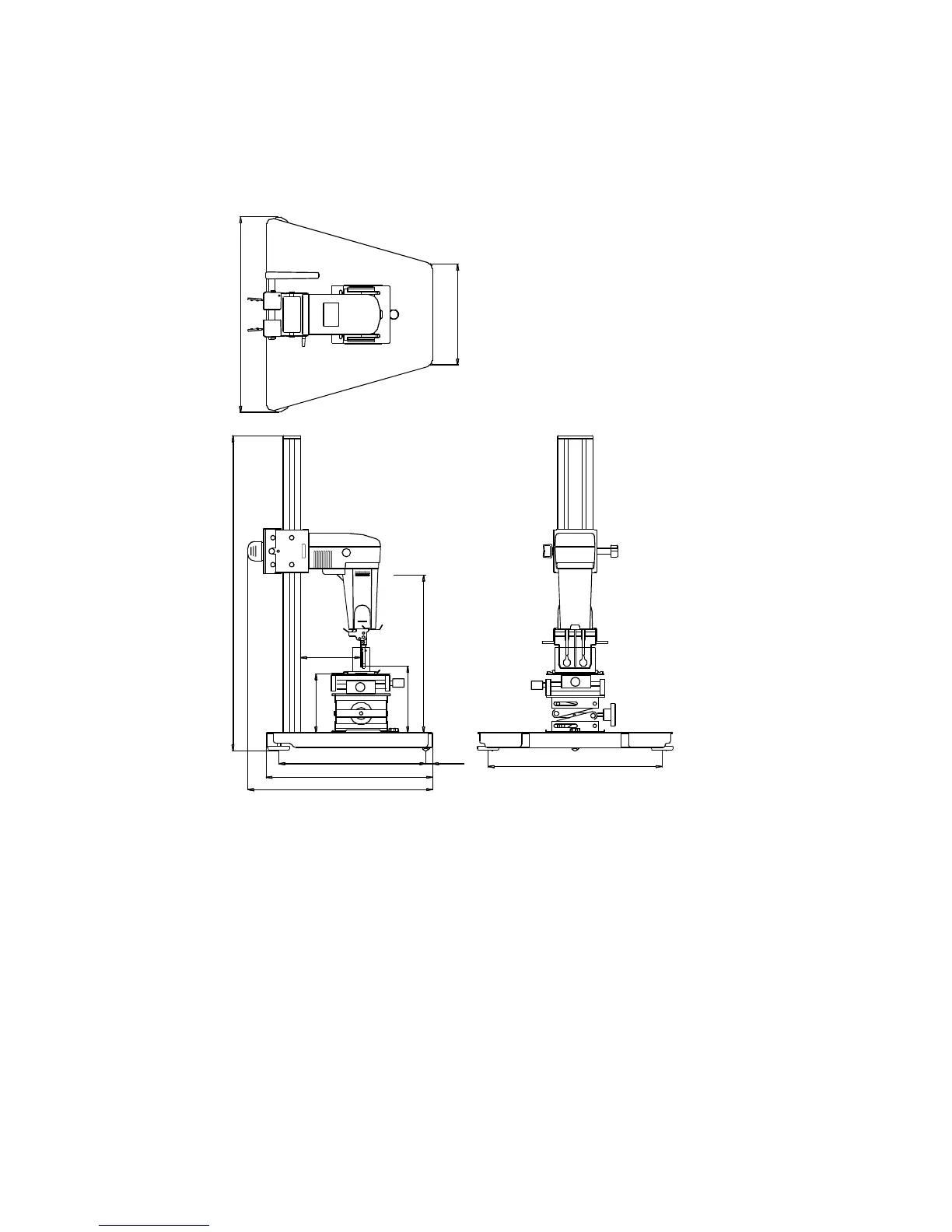

SV-1A / SV-10A / SV-100A Stand unit*
* The SV-H series external dimensions are as follows when the AX-SV-51 (stand set) is used.
Unit: mm
332
170
283
536
314
103
*A
*B
*C
250
11.5
296
*A=Sensor plates lowest position 3.5 mm (With protector used, no table)
*B=Sensor plates highest position 268 mm
*C=Table height 54 to 140 mm
