SV-100A/SV-100H output format example
Viscosity
unit
Display Output format Remarks
L Pa･s
OL,-99999999Pas
Below measuring range error
1.00 Pa･s
ST,+00001.00Pas
10.0 Pa･s
ST,+00010.00Pas
The digit of 0.01Pa⋅s is always zero.
mmPa･s
H Pa･s
OL,+99999999Pas
Above measuring range error
L P
OL,-99999999
P
Below measuring range error
10.0 P
ST,+000010.0
P
100 P
ST,+000100.0
P
The digit of 0.1P is always zero.
P
H P
OL,+99999999
P
Above measuring range error
: Space (ASC 20h)
9-4-2 D.P. Format
Used with the printer MODE 3 when the optional compact printer AD-8121B is connected.
With "prt 0" or "prt 1" selected for "Data output mode (prt)", output contents can be selected by
the settings of "5-at", "5-td" and "5-ed".
With "prt 2" selected for "Data output mode (prt)", only the viscosity value is output
Shown below are SV-10A/SV-10H printing examples.

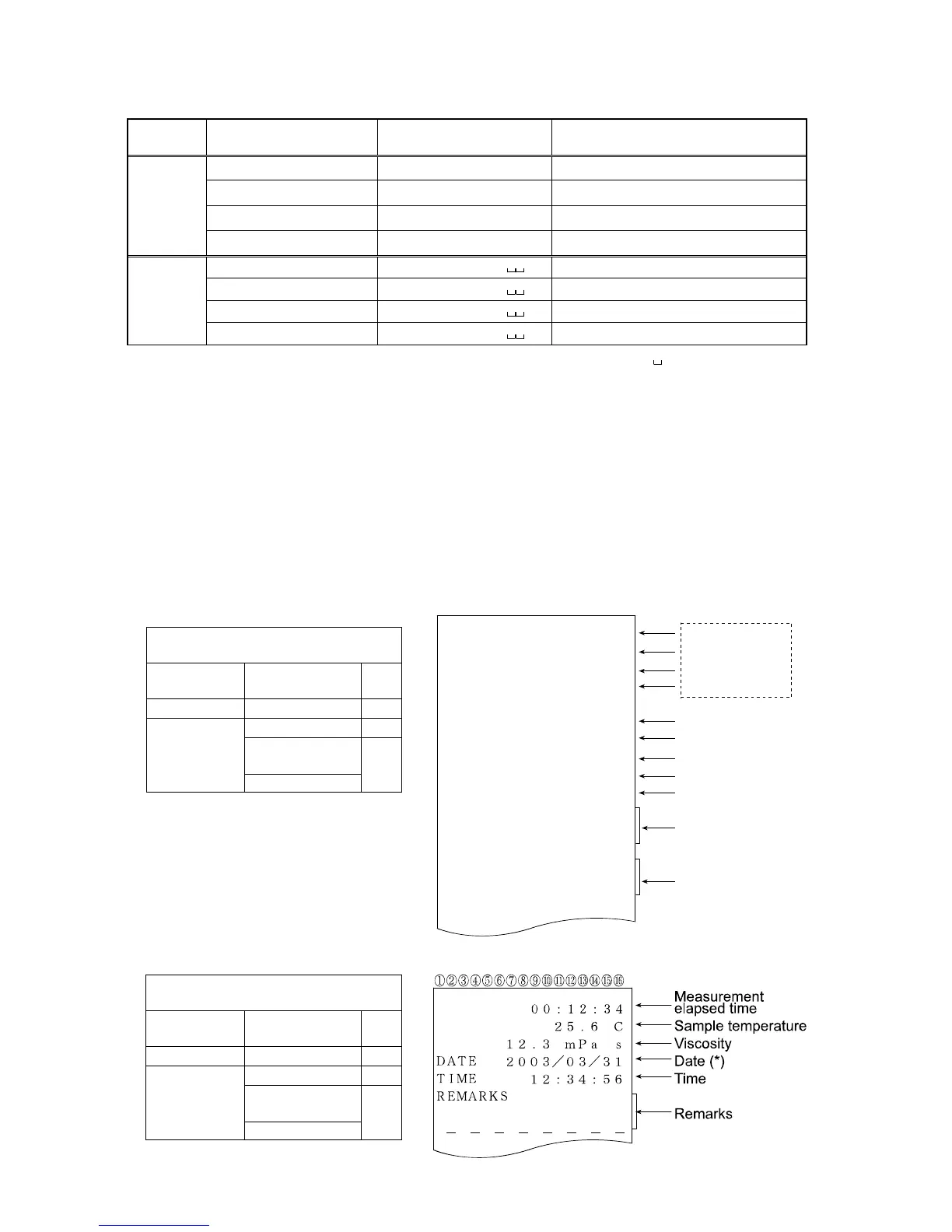

Printing format example (1)
Function setting
(√=Output Blank=No output)
5-at 1
Measurement
elapsed time
√
5-td 1
Date/time
√
Remarks
√
Device ID
information
5-ed 2
Signature
√
Printing format example (2)
Function setting
(√=Output Blank=No output)
5-at 1
Measurement
elapsed time
√
5-td 1
Date/time
√
Remarks
√
Device ID
information
5-ed 1
Signature
ＭＯＤＥＬ
Ｓ／Ｎ
ＩＤ
ＤＡＴＥ
ＴＩＭＥ
ＲＥＭＡＲＫＳ
ＳＩＧＮＡＴＵＲＥ
①②③④⑤⑥⑦⑧⑨⑩⑪⑫⑬⑭⑮⑯
Ｄ
Ｈ
０
２
－
４
Ｃ
ｓ
１
６
＆
／
０
１
３
３
５
Ａ
Ａ
０
－
－
：
６
ａ
／
：
０
０
Ｂ
２
：
Ｐ
３
４
１
０
Ａ
－
１
５
ｍ
０
３
－
８
Ｌ
：
２
／
：
Ｖ
４
－
０
３
３
２
Ｓ
１
０
：
０
１
－
２
０
１
２
－－－
－－－－－－－－
－－－－－－－－
Manufacturer
Model
Serial number
ID number
Measurement
elapsed time
Sample temperature
Viscosity
Date (*)
Time
Remarks
Signature
Device ID information
