LCD SCREENS
Navigation Keys
LCD Display Screen and Navigation Keys
The LCD display screens and buttons allow you to view status and
alarms, and enable force modes. See Figure 4, this page and refer
to Table 3, this page for descriptions.

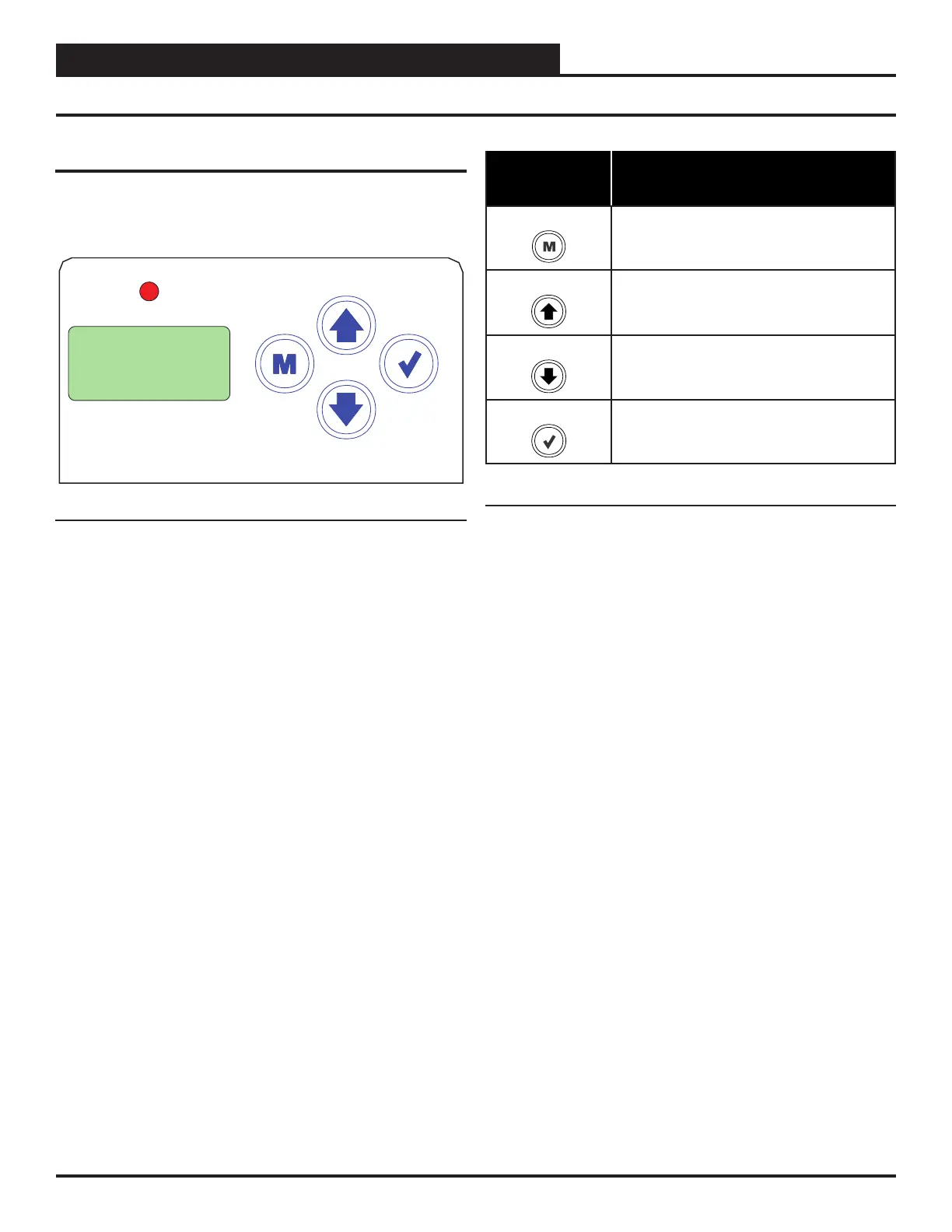

Figure 4: LCD Display and Navigation Keys
Table 3: Navigation Key Functions
NAVIGATION
KEY
KEY FUNCTION
MENU Use the MENU key to move through screens
within Main Menu categories and return to the
Main Menu while at other screens.
UP Use this key to adjust setpoints and change
congurations.
DOWN Use this key to adjust setpoints and change
congurations.
ENTER Use the ENTER key to navigate through the
Main Menu Screen categories.
ALARM
UP
DOWN
ENTERMENU
