IP PHONE FOR MX-ONE™
11 6/1553-DBC 433 01 Uen B6 2010-07-09
Note: The phone does not work during power failure, unless powered
through a PoE.
The phone can be powered either from the network or from a 5 V AC/DC
plug-in power adapter. Only use the plug-in adapter (power supply)
listed below, or an adapter approved by your local retailer.
• RES 141 319/1 for the EU market except for the UK
• RES 141 319/2 for the US market
• RES 141 319/3 for the UK market
For other markets the power adapter can be locally sourced.
2.2 Foot Console
Your phone is equipped with a foot console. This console is available in
two variants; it can be a stand only, or have a built-in option unit. For
more information on option unit, see 13.6 Option Unit (Optional) on page
88.
It is possible to adjust the angle of the phone by tilting the foot console,
see figure below.

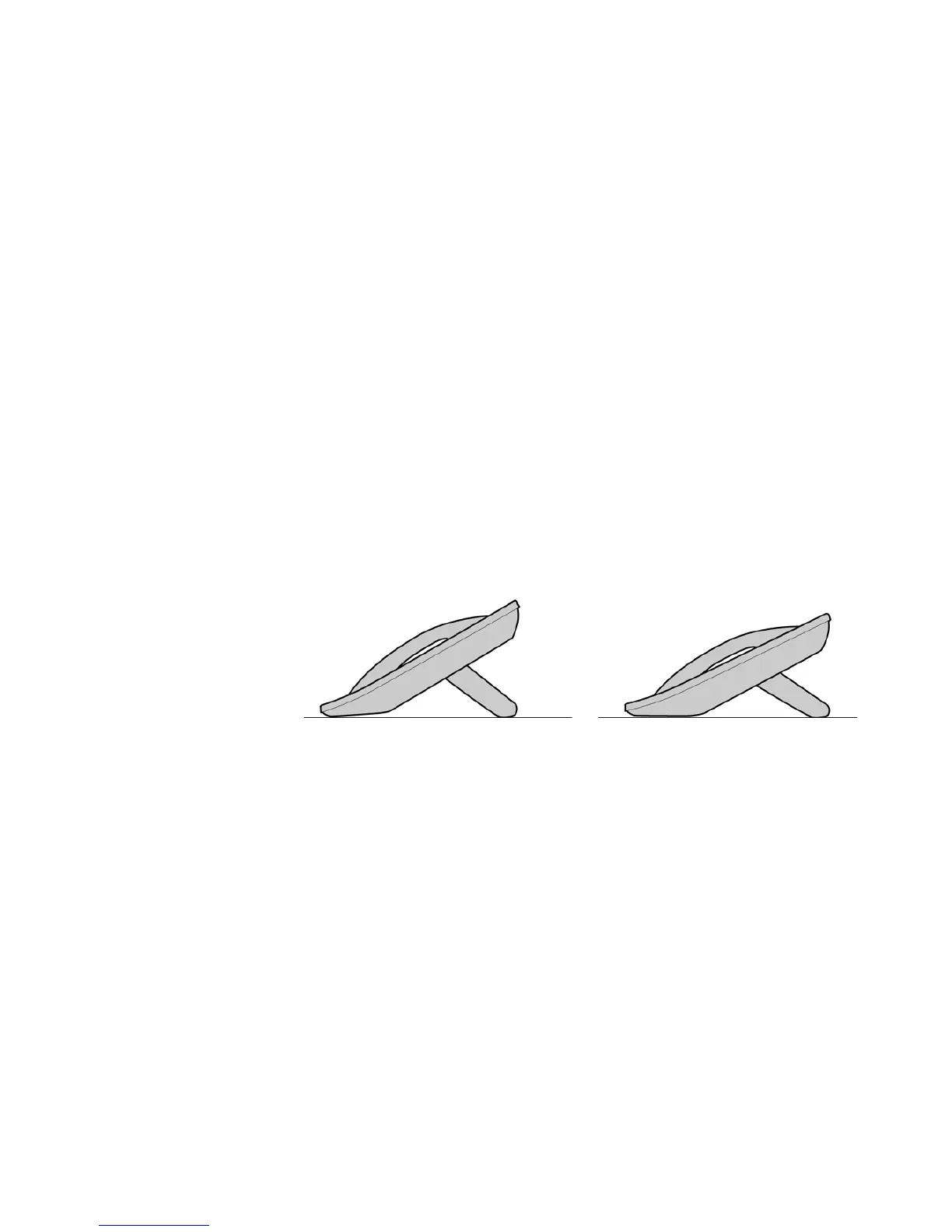

Figure 3: Tiltable Foot Console
To install the foot console, do the following:
1. Attach the foot at the arrows on the back of the phone.
