AB Regin Corrigo E81D-3 - Page 17

Manual Corrigo Ventilation, revision R Chapter 3 Installation and wiring 17

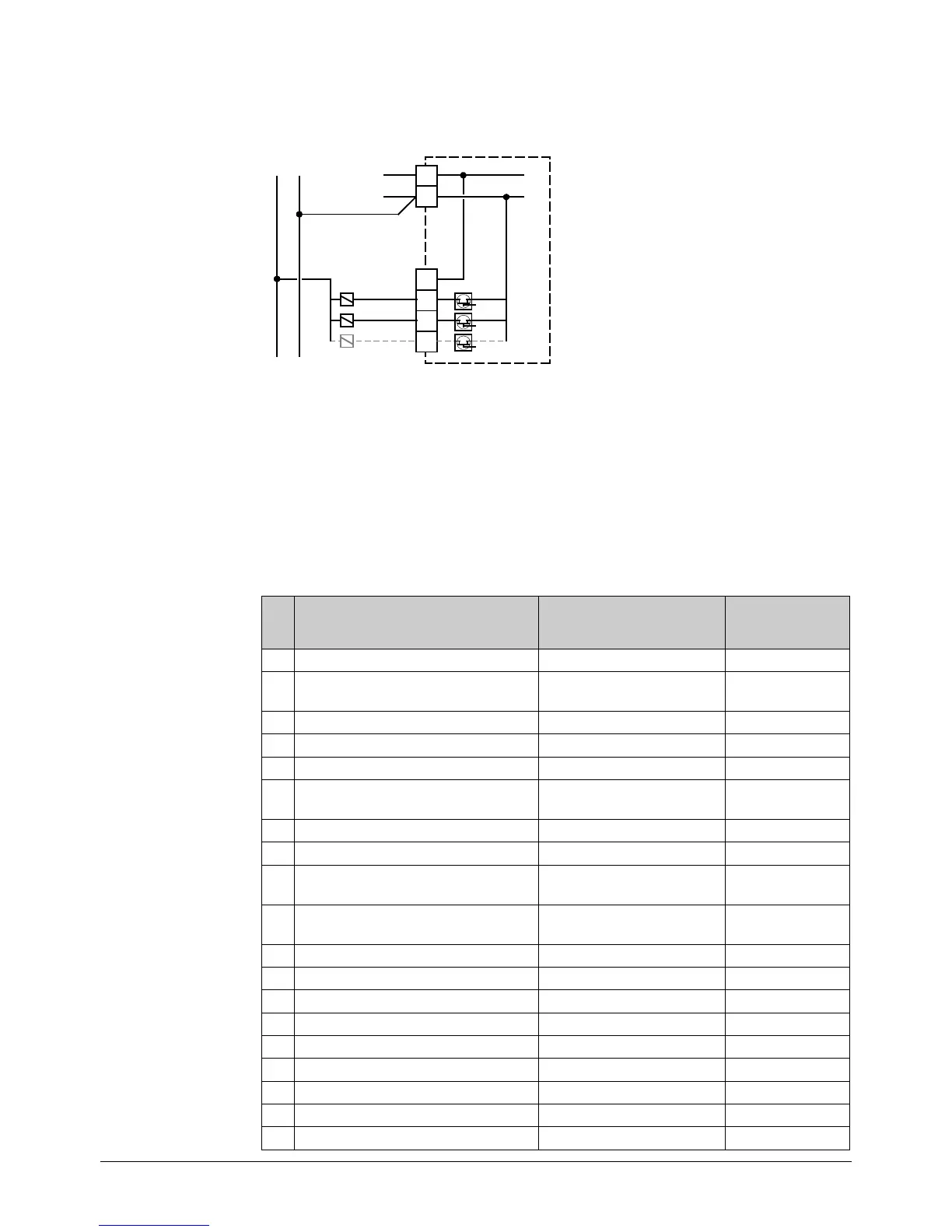

24 V DC supply and 24 V AC relays
3.2.3 Input and output lists
The lists below are intended to be used during commissioning to help you keep track of the desired
input and output functions.
The left column contains a description of the in-/output signal, the middle column displays the name
of the corresponding signal in E tool
©
and the right column shows the text displayed in the Corrigo
controller.
Analogue input signal

Description E tool
©
Display
Inactive input
Not active
Not active
Outdoor temperature sensor, PT1000 or
0…10V
Outdoor Temp Outdoortemp
Supply air temperature sensor Supply Air Temp Supplytemp
Extract air temperature sensor Extract Air Temp Extracttemp
Exhaust air temperature sensor Exhaust Air Temp Exhausttemp
Room temperature sensor 1, PT1000 or
0…10V
Room Temp 1 Roomtemp1
Room temperature sensor 2 Room Temp 2 Roomtemp2
CO
2
sensor, 0…10 V DC
CO2 Sensor
CO2
Pressure transmitter supply air, 0…10
V DC
SAF Pressure SAF pressure
Pressure transmitter extract air, 0…10
V DC
EAF Pressure EAF pressure
De-icing sensor, heat exchanger
Deicing Temp
Deicingtemp
Frost protection sensor Frost Protection Temp Frost prot. temp
Room humidity sensor
Humidity Room
Humidity room
Duct humidity sensor Humidity Duct Humidity duct
Outdoor humidity sensor Humidity Outdoor Humidity out
Temperature sensor, Extra controller
Extra unit temp
Extra unit temp
External control supply air fan External control SAF SAF ext. Ctrl
External control extract air fan
External control EAF
EAF ext. Ctrl
Pressure transmitter supply air 2 SAF Pressure 2 SAF pressure 2
G
G
0
10
11
12
+
-
24 V DC
24 VAC
L N
24 V AC
