14 OI/266/HART-EN Rev. M | 2600T Series Pressure transmitters
5 Mounting
5.5.1 Bracket mounting (optional)

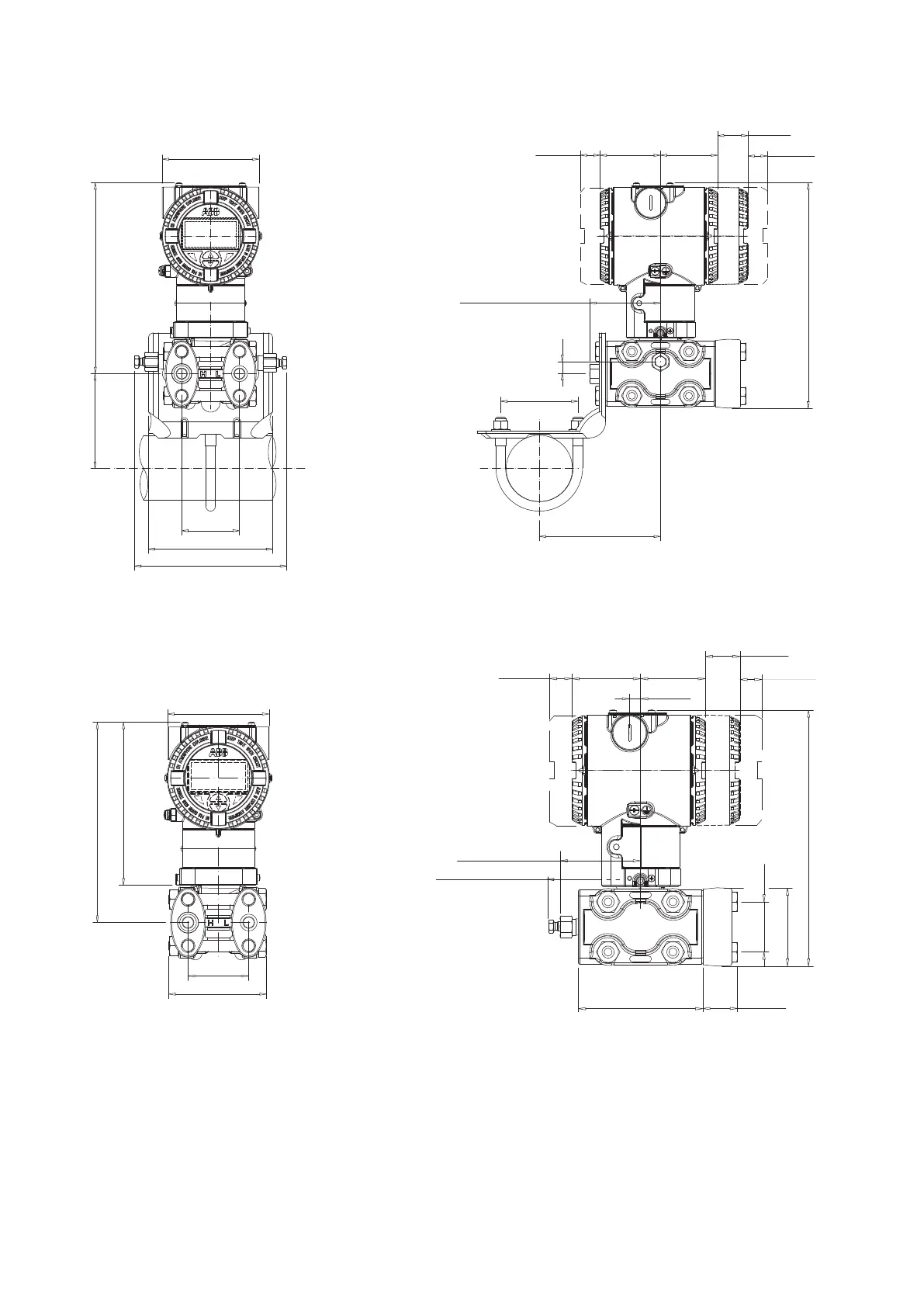

Different mounting brackets are available please refer to the relevant installation drawing below:
89 (3.48)
142 (5.59)
(*)
179 (7.02)
91 (3.58)
116 (4.57)
29 (1.14)
18 (0.71)
18 (0.71)
210 (8.28)
11 (0.43)
113 (4.45)
72 (2.83)
66 (2.60) with plug
78 (3.07) with d/v valve
58 (2.28)
55 (2.17)
Figure 7: Differential Pressure Style transmitter with barrel housing installed on a horizontal pipe with optional bracket (B2)
96.8 (3.81)
100 (3.94) for NACE bolting
179 (7.02)
91 (3.58)
145 (5.70)
54 (2.13)
78 (3.07) with d/v valve
29 (1.14)
18 (0.71)
18 (0.71)
210 (8.28)
58 (2.28)
55 (2.17)
66 (2.60) with plug
41.3 (1.63)
65 (2.53)
102 (4.02)
29 (1.12)
9 (0.35)
Figure 8: Differential Pressure Style transmitter (High Static option)
