2600T Series Pressure transmitters | OI/266/HART-EN Rev. M 17
5 Mounting

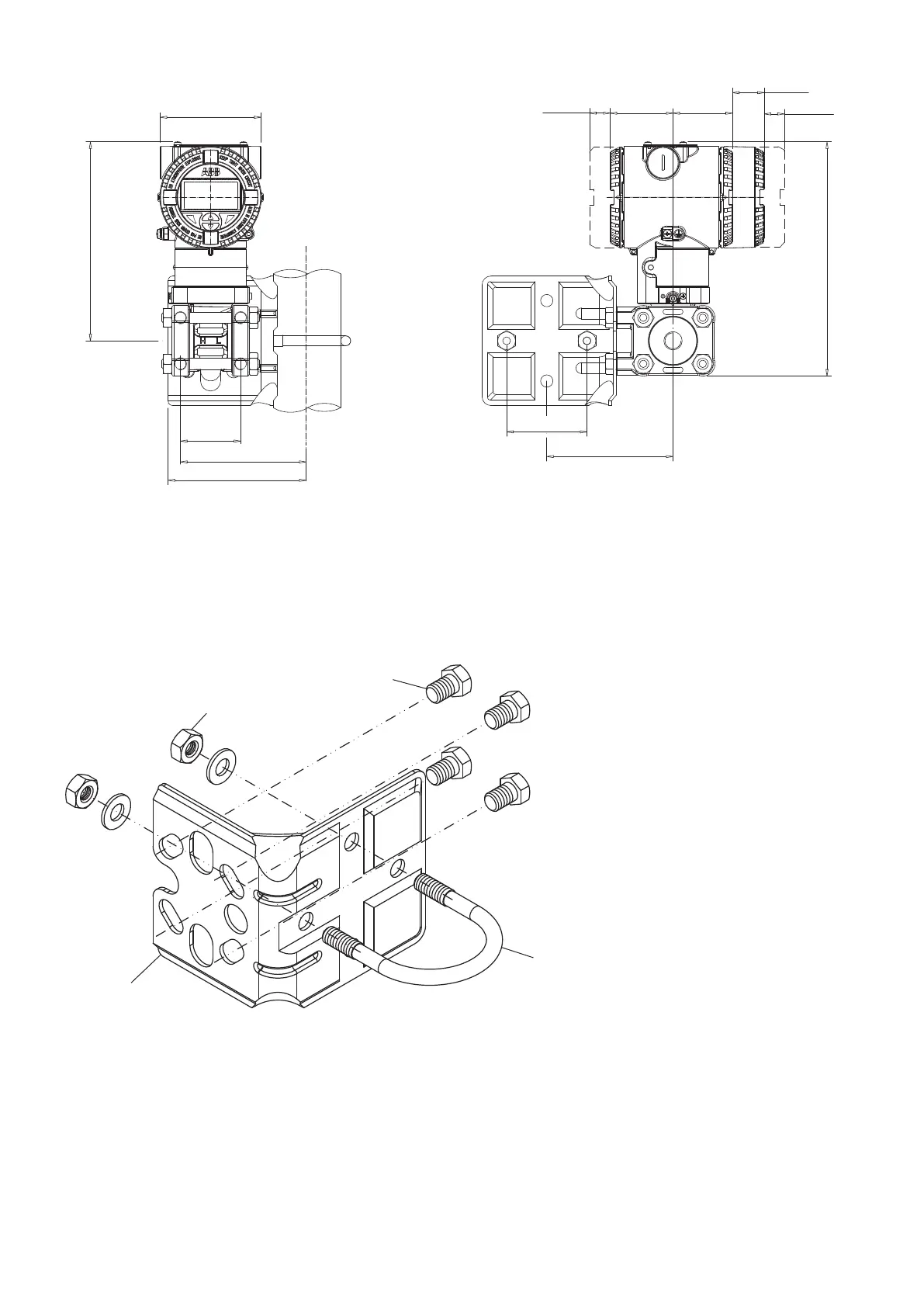

Figure 14: Pipe and wall mounting bracket kit (B2)
1 – U-bolt
2 – U-bolt fixing nuts and washers
3 – Transmitter fixing bolts
4 – B2 bracket
54 (2.13)
123 (4.86)
113 (4.43)
179 (7.02)
91 (3.58)
29 (1.14)
18 (0.71)
18 (0.71)
55 (2.17)
58 (2.28)
210 (8.28)
113 (4.45)
72 (2.83)
Figure 13: Differential Pressure Style transmitter with barrel housing and Kynar inserts installed on a vertical pipe with optional bracket (B2)
5.5.2 B2 Pipe and wall mounting bracket details
All the bolts and nuts supplied are necessary for the installation on pipe. In case of panel or wall installation, the U-bolt and the
U-bolt nuts and washers will not have to be used.
The bolts for panel mounting are not within the scope of supply.
4
1
3
2
