Connections Device description
duplex mode. EDS500devices additionally use a proprietary extension of the SHDSL standard
and can reach data rates of up to 15.000 Mbps. Wires with a diameter of 0.8 mm give a range
of 13 km at 2.048 Mbps or 25 km at 192 kbps.
DSL interface (X3 - X4)
Electrical specification ETSI TS 101 524, ITU-T G.991.2, IEEE
802.3-2008 Cl. 63
Protocol ETSI SDSL (ETSI TS 101 524 V 1.2.1)
ETSI SDSL.bis (ETSI TS 101 524 V 1.2.2)
ITU-T G.shdsl (ITU-T G.991.2)
ITU-T G.shdsl.bis (ITU-T G.991.2)
ITU-T G.hs (ITU-T G.994.1)
IEEE EFM (IEEE 802.3)
Data rate up to 15 Mbps
Plug type Phoenix Contact MSTBT 2,5/3-ST
Cable shielded, twisted telecommunications cable,
up to 25 km with cable diameter 0.8 mm
Circuit classification TNV-1 (acc. IEC 60950-1)
Auto crossover detection yes
Galvanic isolation 3 kV isolation voltage
Overvoltage protection Shield to earth ±6 kV, line to earth ±6 kV, line-
line ±6 kV
Electrical fast transient / Burst, IEC 61000-4-4 4 kV (level 4), criterion A
Surge 1.2/50 µs, IEC 61000-4-5 6 kV line to earth, 6 kV line to line (level x), cri-
terion B
Surge 10/700 µs, IEC 61000-4-5 6 kV line to earth, 6 kV line to line (level x), cri-
terion B
Conducted disturbances, induced by radio-
frequency fields, IEC 61000-4-6
10 V (level 3), criterion A
Conducted, common mode disturbances
in the frequency range 0 Hz to 150 kHz,
IEC 61000-4-16
30 V continuous disturbance/ 300 V short
duration disturbance (level 4), criterion A

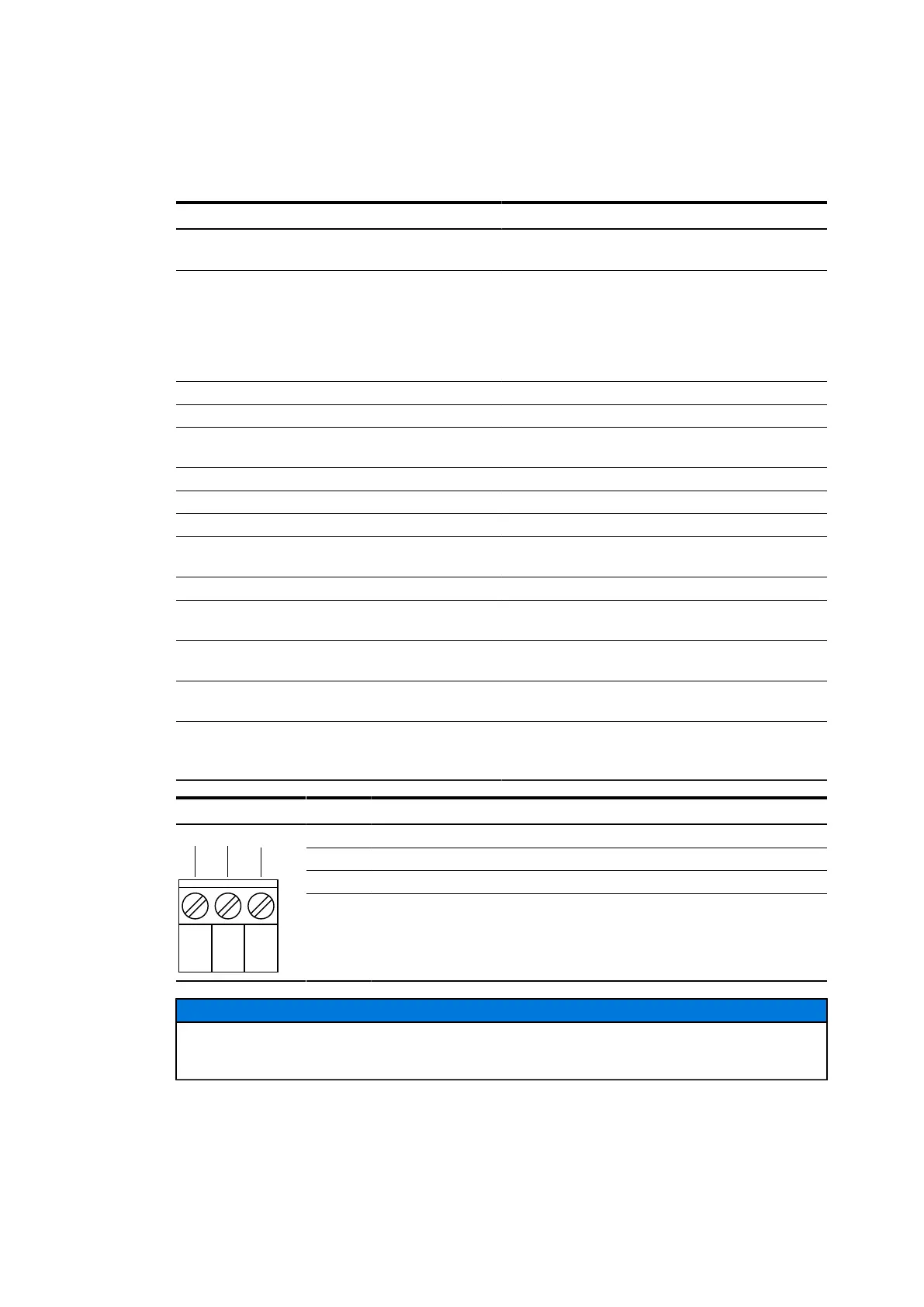

Pin allocation DSL interface (X3 - X4)
Pin Signal
1 Line A (DSL A)
2 Line B (DSL B)
3 2 1
3 Functional earthing and cable shield
ADVICE
The SHDSL interface is designed as a 2 wire interface. For an effective overvoltage
protection it is mandatory to connect the functional earthing as well as the cable shield.
32 1KGT150966 V0001
