ABB 500NMD20 - Serial Interfaces (Con0 - Con1)

Device description Connections
ADVICE
Any SHDSL port supports auto-crossover detection and correction, so signals A and B may
be interchanged.
ADVICE
The signal lines are short-circuit protected and may be connected while the module is
powered and working.
4.7.4 Serial Interfaces (Con0 - Con1)
The serial interfaces of the devices are signal compatible to RS-232. The connector is a RJ-12
female plug. The factory pre-sets are speed 57600 Baud, no parity, 1 stop bit, no flow control.
On delivery, the management console can be accessed via the serial interface.
Serial interfaces (Con0 - Con1)
Electrical specification ITU-T V.24, EIA RS-232 or EIA RS-422/485
Data rate 50 bps... 230.4 kbps
Plug type RJ-12 (6P6C)
Cable shielded RS-232 cable, up to 3 m
Adapter cable 500CAB06 1KGT038912R0001: RS-232 cable,
RJ12 to SubD9F (DTE-PC)
Circuit classification SELV (acc. IEC 60950-1)
Galvanic isolation no
Overvoltage protection Shield to earth ±4 kV
Electrical fast transient / Burst, IEC 61000-4-4 4 kV (level 4), criterion A
Surge 1.2/50 µs, IEC 61000-4-5 4 kV (level 4), criterion A
Conducted disturbances, induced by radio-
frequency fields, IEC 61000-4-6
10 V (level 3), criterion A
Conducted, common mode disturbances
in the frequency range 0 Hz to 150 kHz,
IEC 61000-4-16
30 V continuous disturbance/ 300 V short
duration disturbance (level 4), criterion A

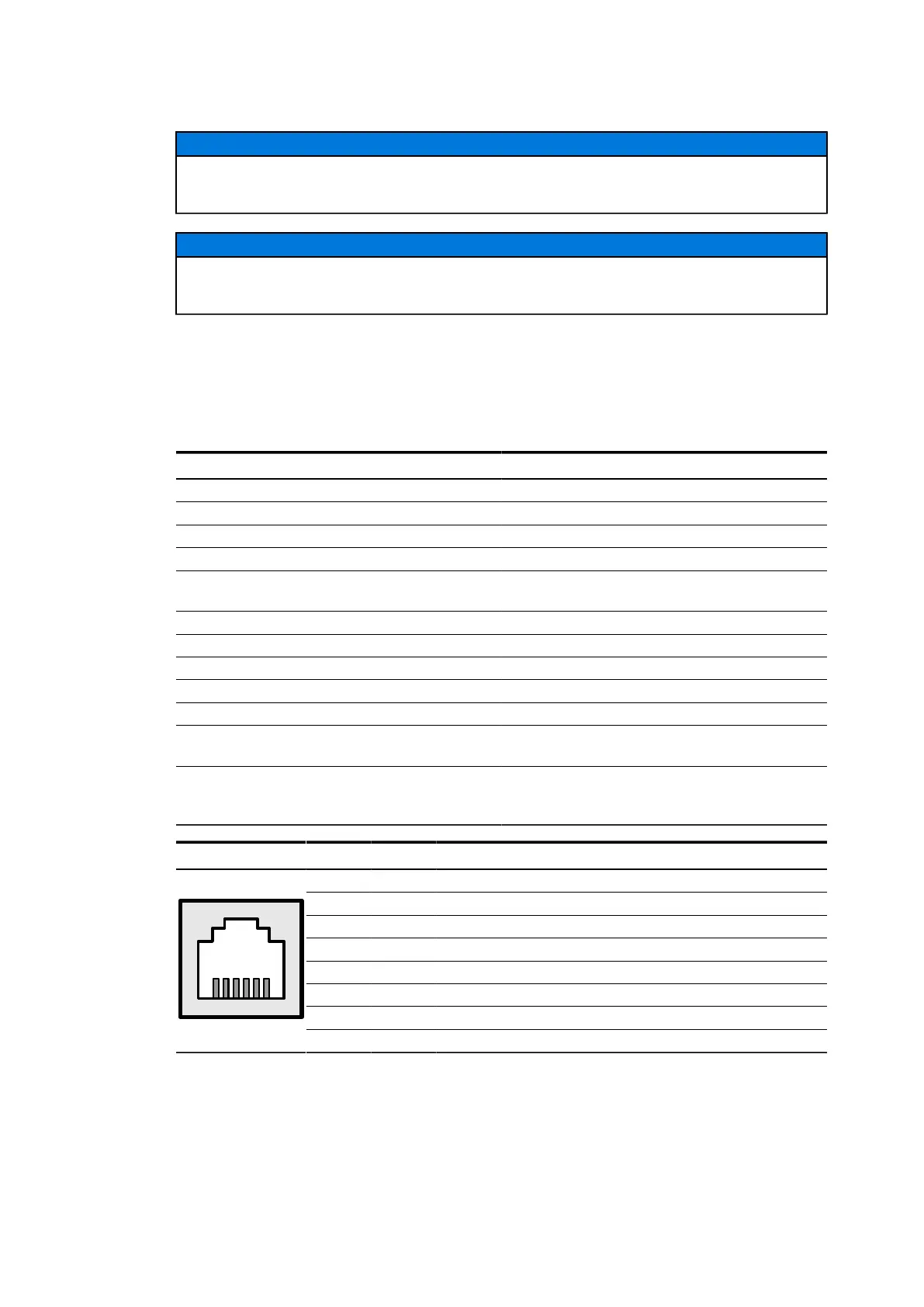

Pin allocation serial interface RS-232 (RJ-12)
RS-232 EDS500 RS-232 PC SUB-D9
Pin Signal Direction Pin Signal Direction
1 DCD Output 1 DCD Input
2 CTS Output 8 CTS Input
3 RTS Input 7 RTS Output
4 GND - 5 GND -
5 RxD Output 2 RxD Input
6
1
6 TxD Input 3 TxD Output
1KGT150966 V0001 33
