Device description Compact device 500NMD01

4 Device description

4.1 Compact device 500NMD01

4.1.1 Overview 500NMD01

2-wire Cu

Console0DSL 1

Tunnel

CFG

SHDSL-Interface

local LAN

3 4

Intelligent Switch

(Layer 2 or 3)

Configuration

and Monitoring

RS-232/

RS-485

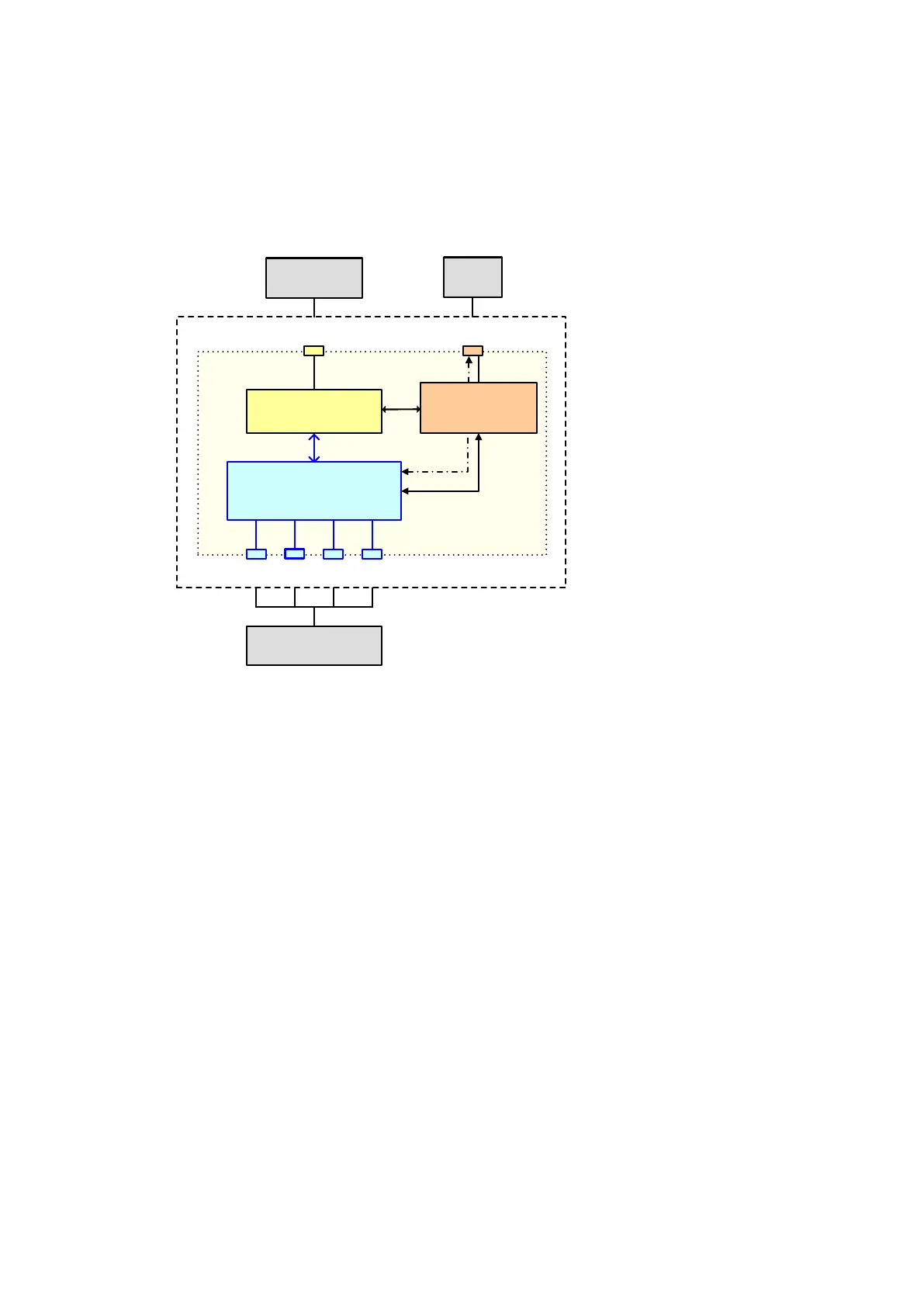

Figure 7: Block diagramm 500NMD01

Legend:

1 Ethernet Port 1

2 Ethernet Port 2

3 Ethernet Port 3

4 Ethernet Port 4

The compact modem 500NMD01 has one wide area network SHDSL interface and four

Ethernet interfaces. There is one serial interface available for configuration or as process

interface. A configurable alarm relais and an extension interface (e.g. to use the configuration

stick) complete the device.

1KGT150966 V0001 19
