Compact device 500NMD01 Device description
4.1.2 Front view and connectors 500NMD01

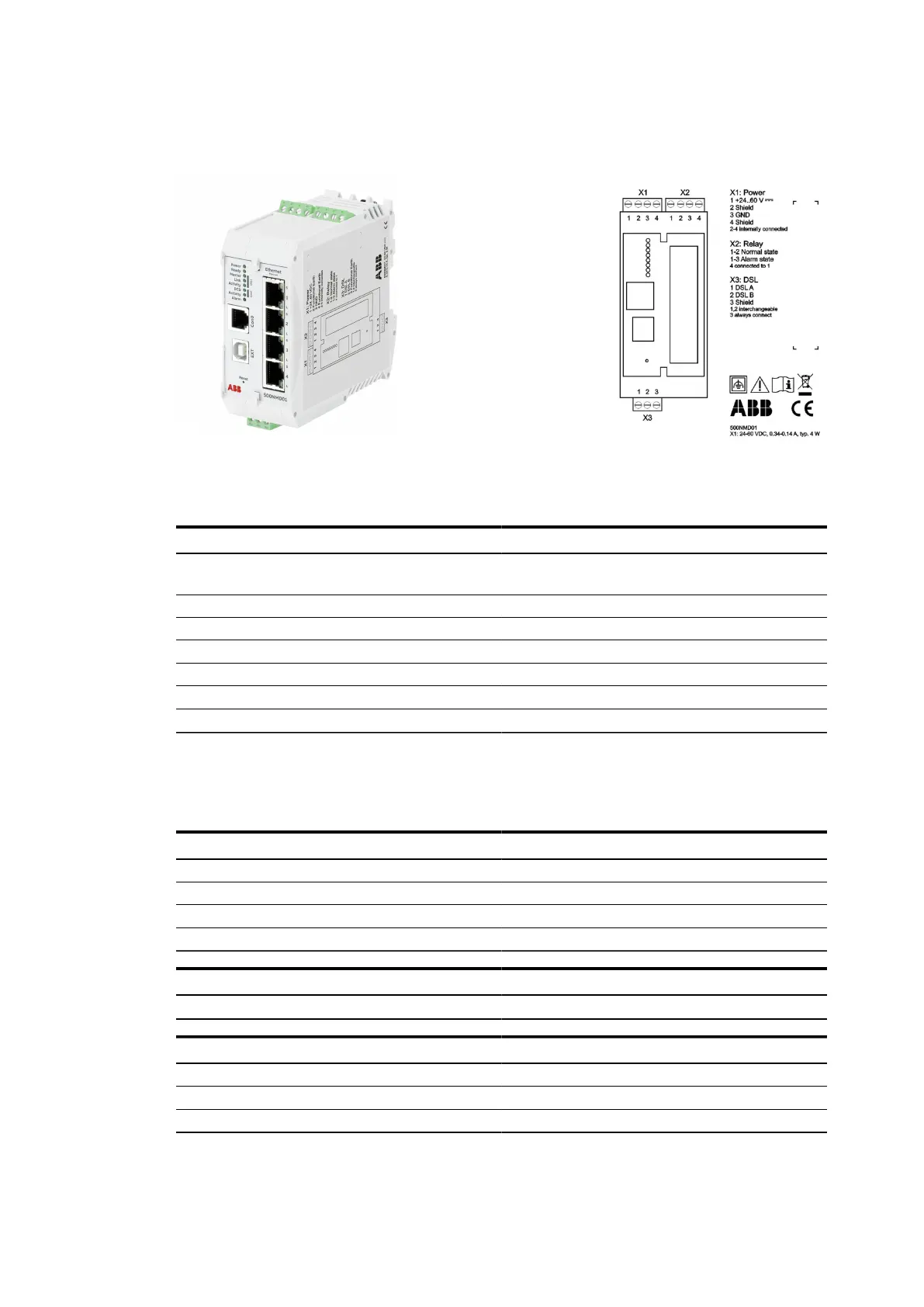

Figure 8: Front view of the
Ethernet DSL switch 500NMD01
Figure 9: Connector plan of the
Ethernet DSL switch 500NMD01
Connectors Type
Port1 - Port4 "Ethernet interfaces (Port1 - Port4)",
page 30
Con0 "Serial Interfaces (Con0 - Con1)", page 33
EXT "Extension interface (EXT)", page 36
X1 "Power connector (X1)", page 34
X2 "Alarm-Relay (X2)", page 35
X3 "DSL interfaces (X3 - X4)", page 31
Table 6: Interfaces 500NMD01
4.1.3 Device data 500NMD01
The interface data can be found in Chapter 4.7, "Connections"
Mechanical layout
Dimensions 99 x 45 x 115 mm (H x W x D)
Mounting 35 mm DIN-rail
Cooling thermal convection (no moving parts)
Weight 250 g
Mean time between failure (MTBF)
Calculation according to MIL-Handbook-217F 153 years @ 40 °C
Power supply input (X1)
Operating voltage 24... 60 V DC -20%... +20%
Power consumption (typical) 4 W (all ports active)
Current demand (peak) 340 mA @ 24 V / 140 mA @ 60V
20 1KGT150966 V0001
