The other options under ConF METER menu are:
ConF AUTO
By selecting this option, the CoMeter is automatically updated
with the LRV, URV and Unit of the HART transmitter connected.
Before accepting the transmitter configuration by pressing
ENTER at the request "ConF UPDATE?", it is possible to view
the LRV (ZERO), the URV (FULL SC) and the UNIT.
If the output transfer function of the transmitter is not linear,
ProMeter and CoMeter shows the message: ConF NO_LIN
and the user cannot update the configuration.
It is necessary to change the output transfer function of the
transmitter to linear.

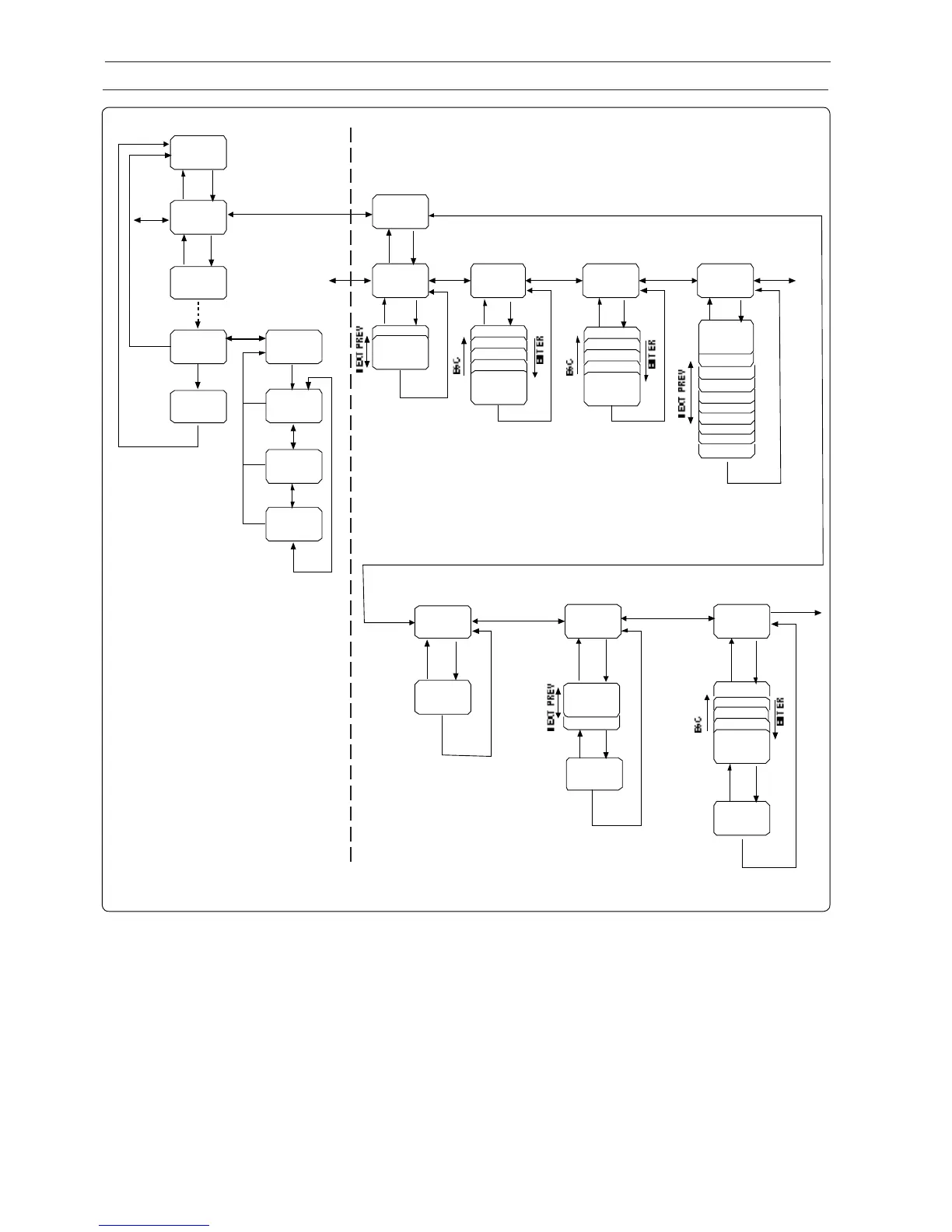

See Fig. 7 - "ConF METER" menu, for ConF AUTO procedure.
ConF MANUAL
The selection of MANUAL configuration allows the user
to define manually the CoMeter configuration, i.e. define
the LRV (ZERO), the URV (FULL SC), and the UNIT, as well
as to decide for a LINEAR on SQR output function. LRV
and URV can have a value between -99999 and +99999.
Refer to Fig.7 - ConF METER menu for detail on the pro-
cedure.
For having the CoMeter to display the analog output current
or the output percentage, select respectively:
ConF CURRENT and ConF PERCENT
CALIBRATION PROCEDURE . . .
UPDATE ZERO,
FULL-SCALE
AND UNIT
SET 4÷20 mA
INDICATION
SET 0÷100% INDICATION
(WITH OR WITHOUT
SQUARE ROOT)
UPDATE NEW
PASSWORD
COMETER only COMETER and PROMETER
