ABB A100-H Series User Manual

Assembly Instructions / A100-H
4 Installing the turbocharger / 4.2 Fitting threaded rods
© Copyright 2020 ABB. All rights reserved. HZTL455311P0004_EN Rev.B July 2020
4.2 Fitting threaded rods

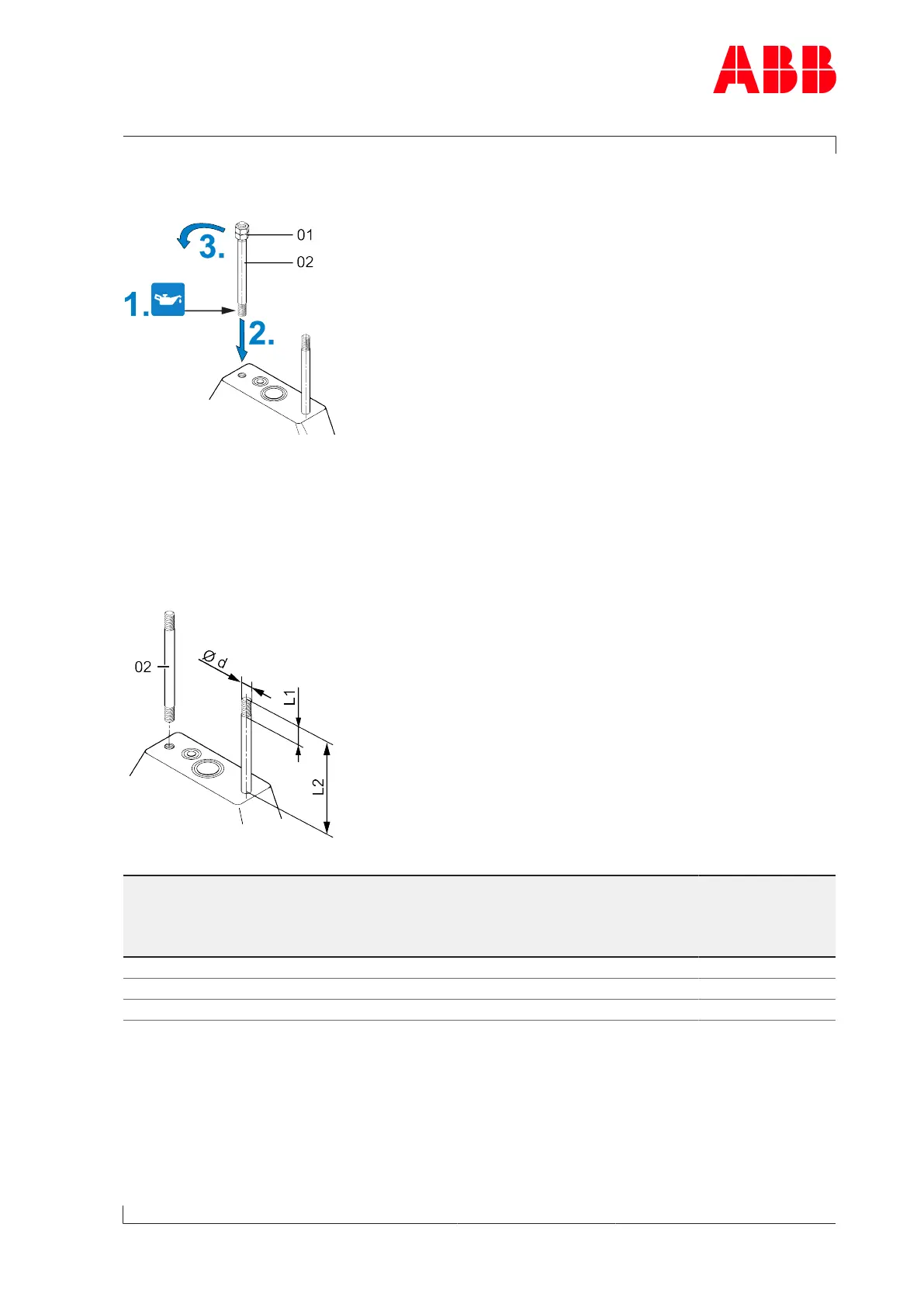

Fig.5: Fitting threaded rods onto the bracket
1. Lightly oil the surfaces of the threaded rods(02) to be screwed in.
2. Screw the threaded rods into the bracket with the aid of locknuts(01).
3. Remove nuts(01) again.
Requirements for the threaded rods
Fig.6: Requirements for threaded rods
Product Diameter
Threaded rod
[mm]
Material
DIN / ISO 898
(Part 1)
Thread length
L1[mm]
Length of
threaded rod
L2 [mm]
A130-H Ø 16 / M16 10.9 / 12.9 ≥ 30 250
A135-H Ø 20 / M20 10.9 / 12.9 ≥ 30 325
A140-H Ø 24 / M24 10.9 / 12.9 ≥ 70 410 … 420
Table5: Requirements for threaded rods
Fastening material, scope of delivery
The threaded rods and nuts for fastening the turbocharger on the bracket are not included
in the ABB scope of delivery.
The clamping nuts are included in the ABB scope of delivery.
Page 11 / 21
