4 Installing the turbocharger / 4.5 Fastening the turbocharger with a
clamping nut
© Copyright 2020 ABB. All rights reserved. HZTL455311P0004_EN Rev.B July 2020
Tightening pressure screws

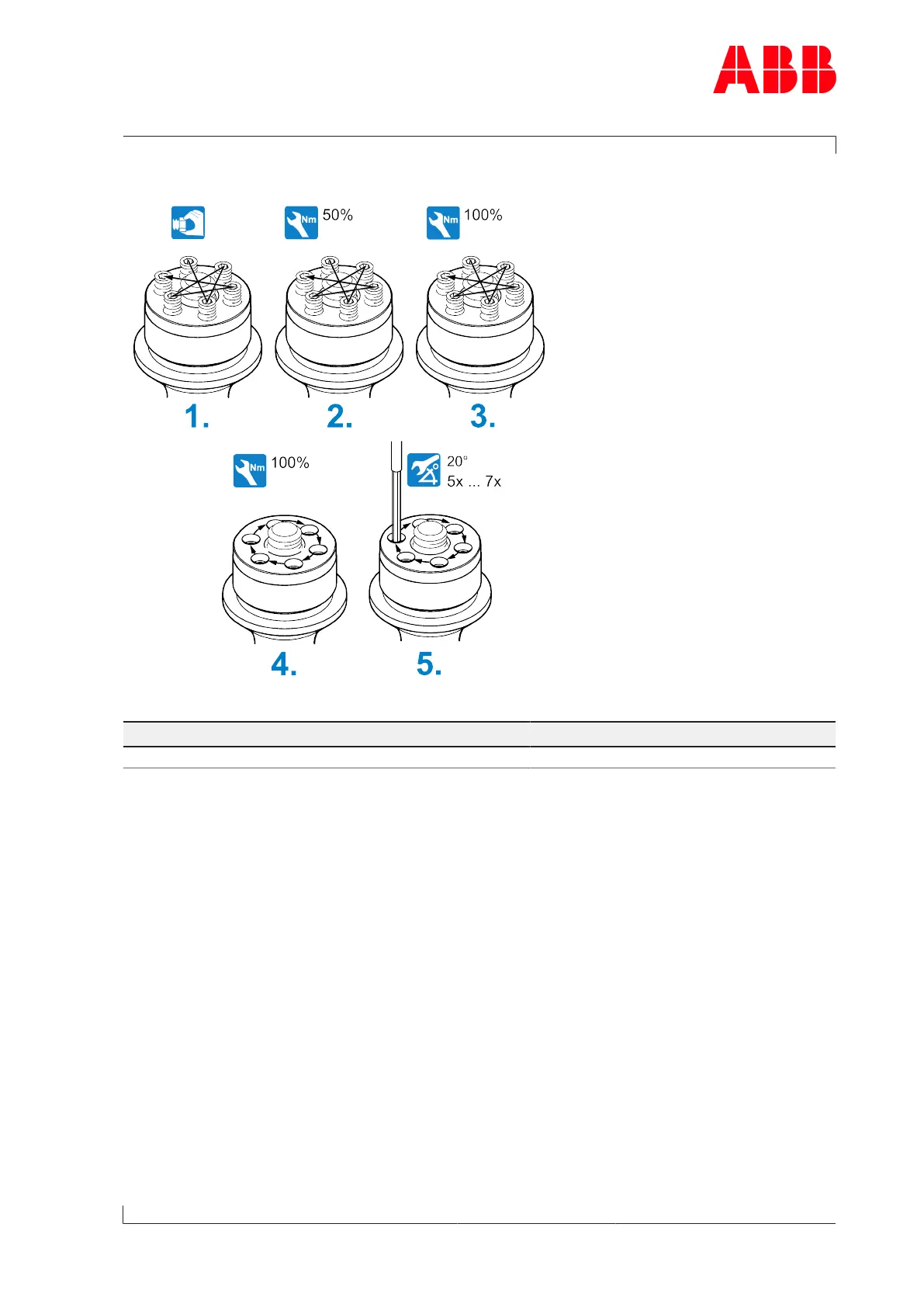

Fig.9: Tightening pressure screws
Product Fixing screw [mm] Tightening torques [Nm]
A140 M24 35
Table7: Torque-controlled tightening of the pressure screws
1. Screw in pressure screws crosswise by hand until reaching the stop.
2. Tighten pressure screws crosswise to 50% of the tightening torque specified in the
table.
3. Tighten pressure screws crosswise to 100% of the tightening torque specified in the
table.
4. Work in a circle to tighten all pressure screws to 100% of the tightening torque specified
in the table.
5. Tighten pressure screws to 100% in 5…7 rounds until the required residual tightening
angle of <20° is achieved.
Page 15 / 21
