ABB A175-M52 - Fig. 73: Flange Tightening Sequence; Table 55: Tightening Torques 61009

Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.15 Table of tightening torques
© Copyright 2020 ABB. All rights reserved. HZTL4033_EN Rev.G December 2020
Tightening sequence

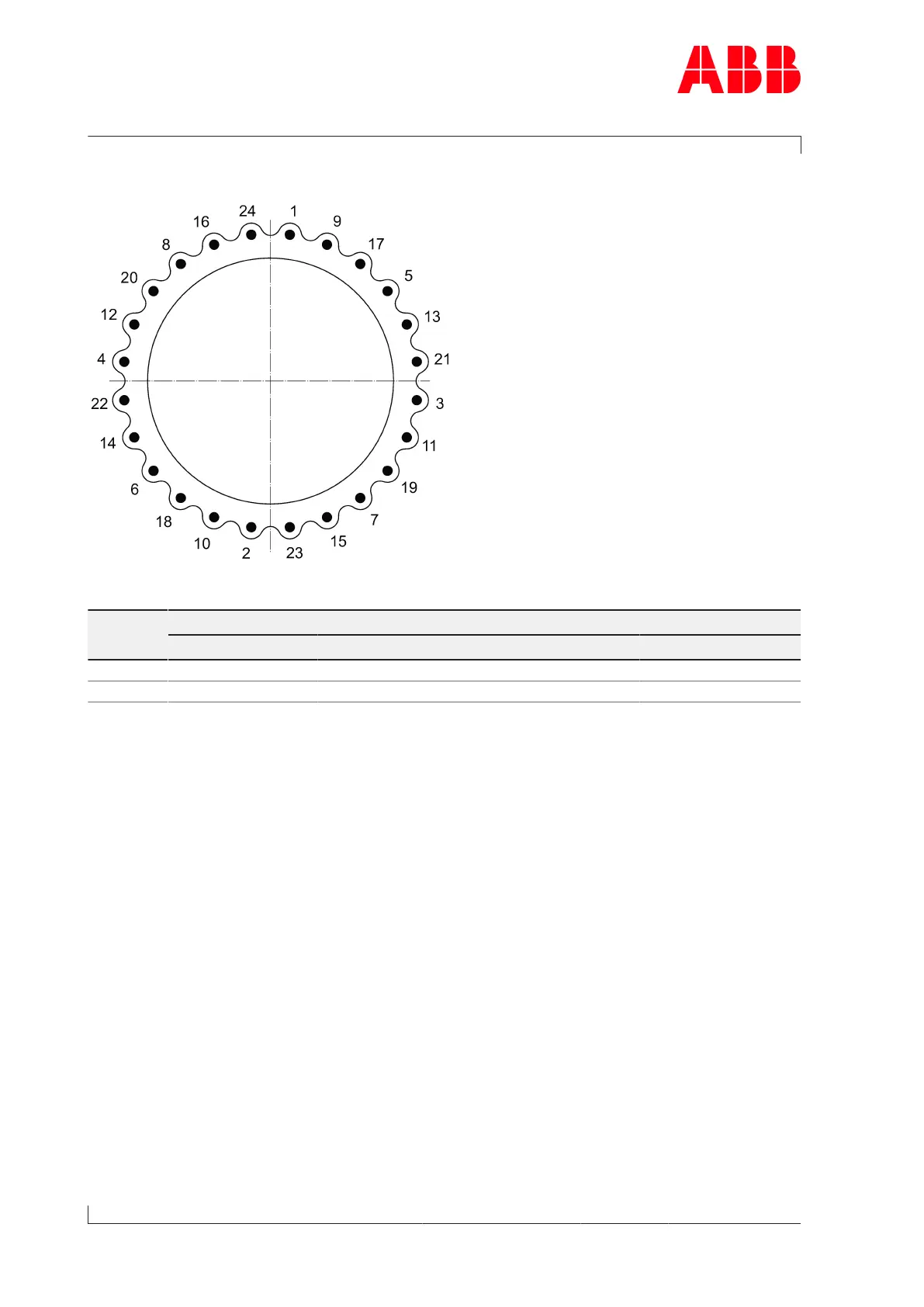

Fig.73: Flange tightening sequence
Product Tightening torque (61009) [Nm]
Step 1 Step 2 Step 3 Step 4
A170-M hand-tight 80 170 280
A175-M hand-tight 100 240 380
Table55: Tightening torques 61009
Page 116 / 143
