ABB A175-M52 - Fig. 39: Removing the Diffuser

Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.5 Removing the compressor casing
© Copyright 2020 ABB. All rights reserved. HZTL4033_EN Rev.G December 2020
Removing the diffuser

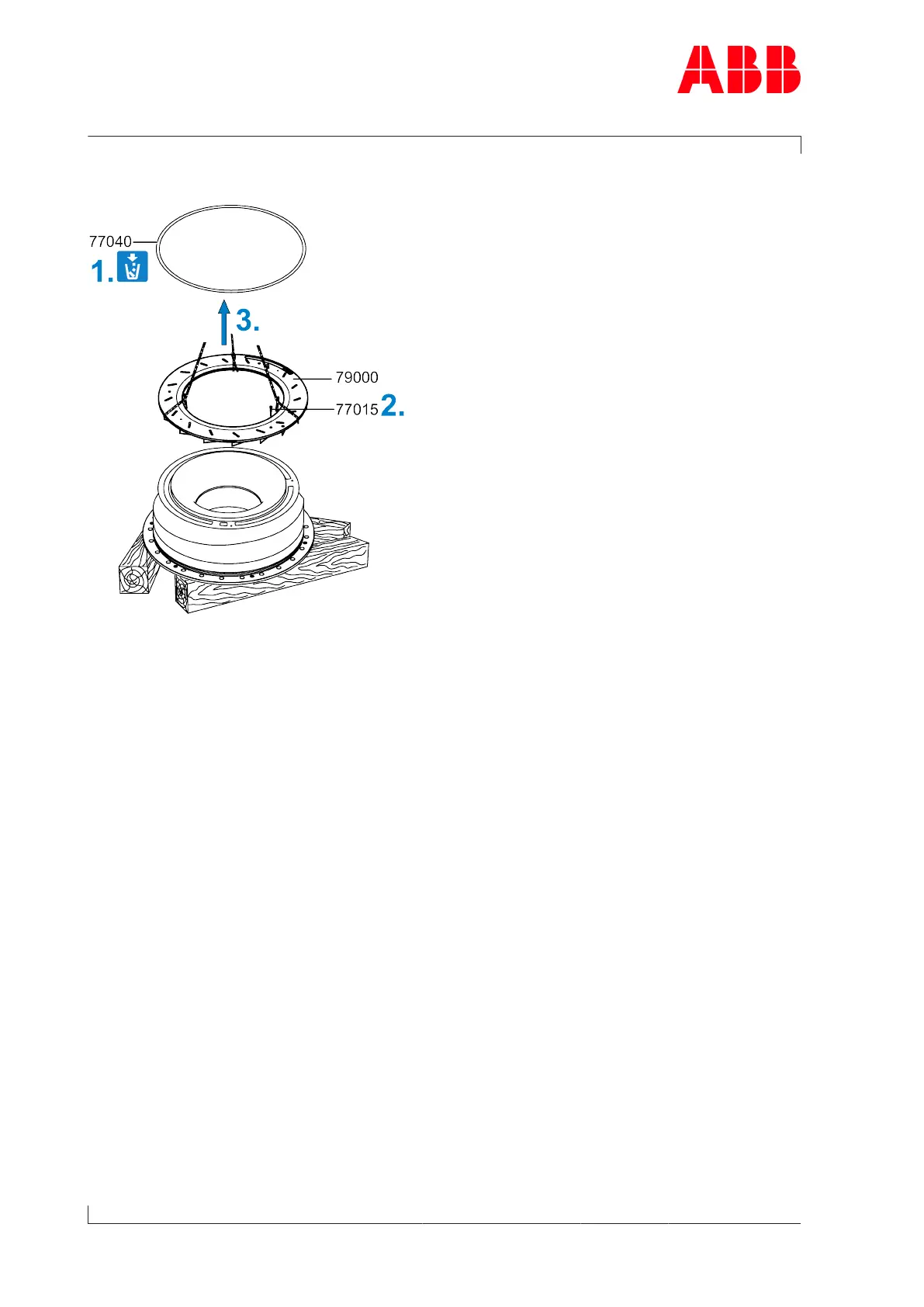

Fig.39: Removing the diffuser
1. Remove and dispose of the O-ring (77040).
2. Loosen and remove screws(77015).
3. Loop lifting gear around diffuser (79000) and remove diffuser.
