ABB A175-M52 - Fig. 47: Removing Cover Ring 2; Fig. 48: Removing Nozzle Ring 1

Operation Manual / A170-M.. - A175-M..
9 Disassembly and assembly / 9.7 Removing the nozzle ring
© Copyright 2020 ABB. All rights reserved. HZTL4033_EN Rev.G December 2020

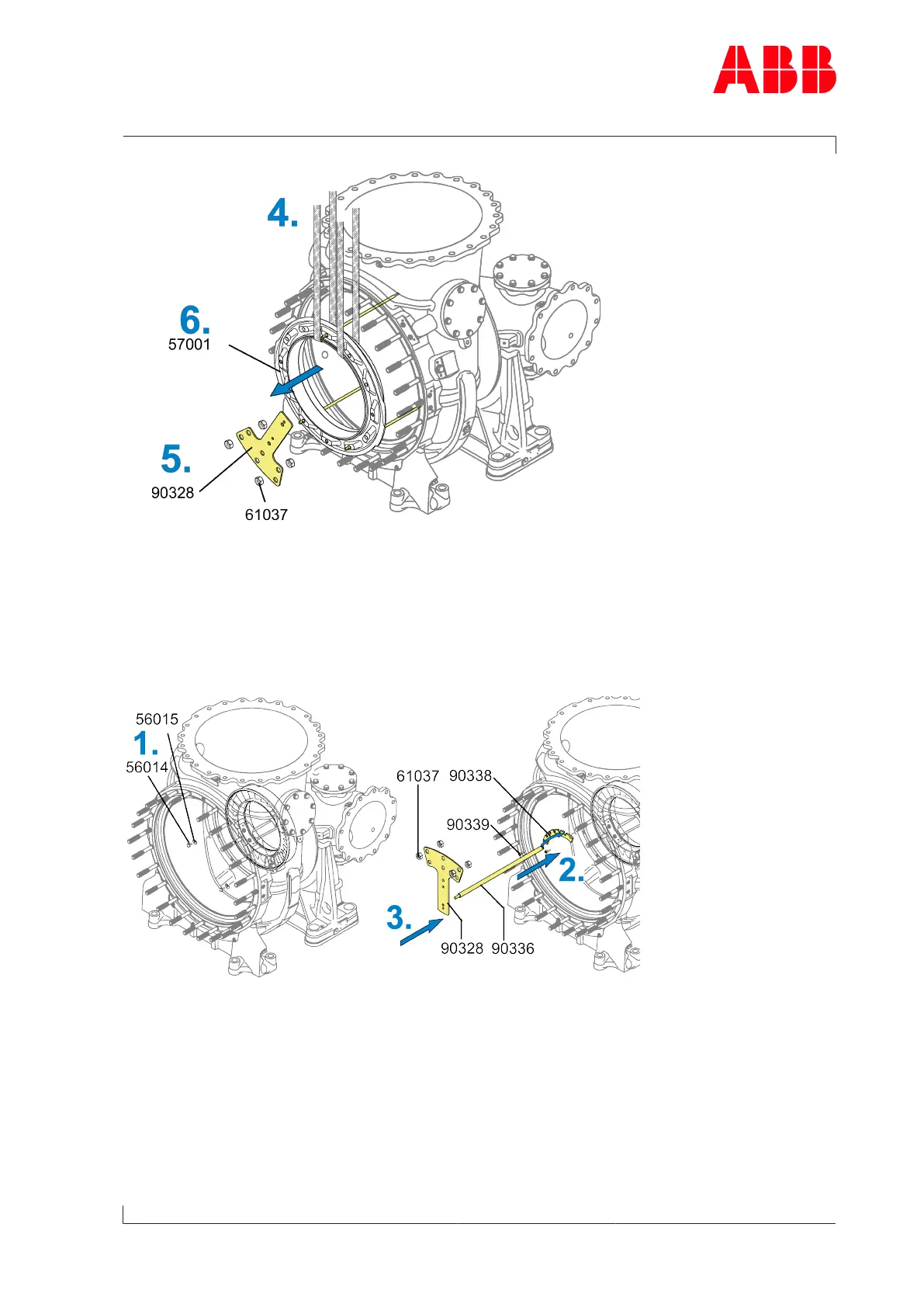

Fig.47: Removing cover ring 2
4. Loop around cover ring and secure to lifting gear.
5. Remove guide plates (90328) and nuts (61037).
6. Fully pull out and put down cover ring (57001).
Removing the nozzle ring
Fig.48: Removing nozzle ring 1
1. Bend open locking washers (56015), loosen and remove screws (56014).
2. Secure retaining plate (90338) with screws (90339) and hook guide rod (90336) into re-
taining plate.
3. Fit guide plate (90328) with nuts (61037).
