Testing the PROFIBUS bus cable and bus connectors Section 4 Commissioning of PROFIBUS
108 3BDS009029R5001 B
2. One bus termination is not powered (5 V) (or two 390 Ohm resistors are
missing):
The measured voltage between the both transmission lines is 0,62 V

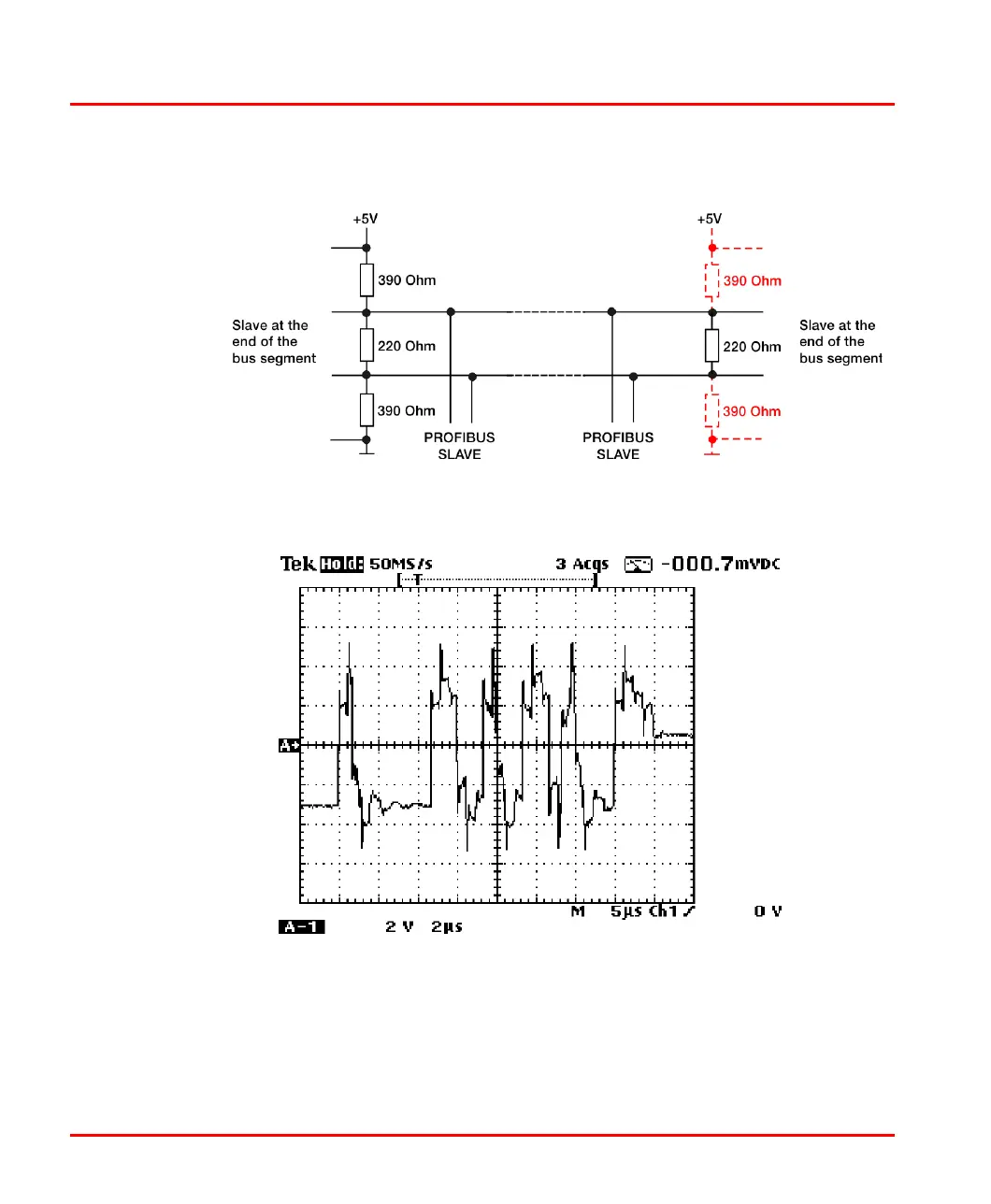

Figure 42. Incorrect terminated PROFIBUS line (termination only on one side)
