Section 2 Transmission Media and Components Thick Cable
9ARD000015-600 27
Table 13 lists the electric current capability based on the network length.
Figure 7 shows the electric current capability on the DeviceNet Power Bus.
Table 13. Electric Current Capability for Thick Cables based on Network Length
Network
Length in
Meters
(feet)
0
25
(82)
50
(164)
100
(328)
150
(492)
200
(656)
250
(820)
300
(984)
350
(1148)
400
(1312)
450
(1476)
500
(1640)
Maximum
Electric
Current
(amps)
8.00 8.00 5.42 2.93 2.01 1.53 1.23 1.03 0.89 0.78 0.69 0.63

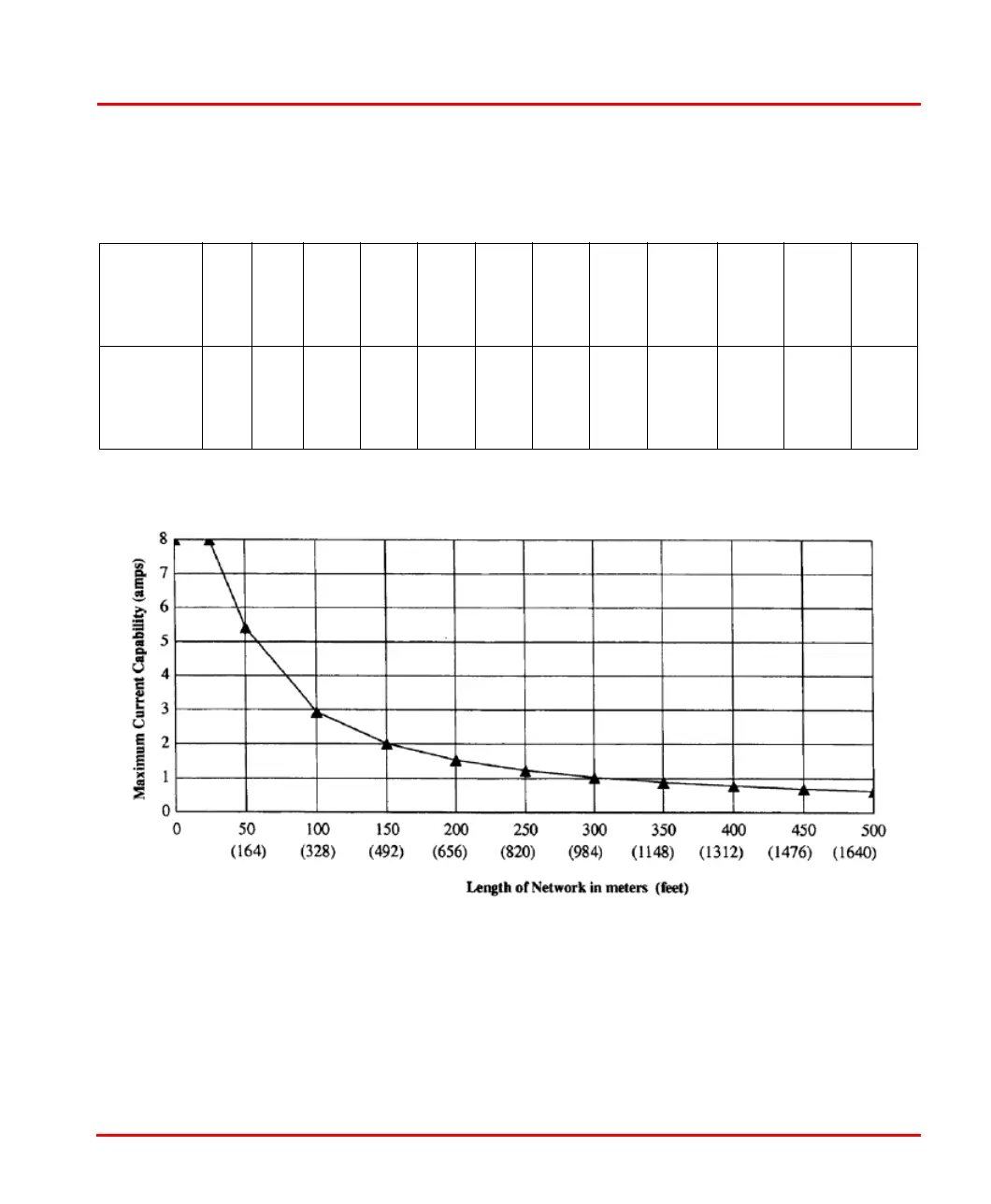

Figure 7. Electric Current Capability on DeviceNet Power Bus
