Section 2 Transmission Media and Components Flat Cable
9ARD000015-600 39
Table 33 lists the electric current capability based on the network length.
Figure 11 shows the electric current capability on the DeviceNet Power Bus.
Table 33. Electric Current Capability Based of Flat Cable on Network Length
Network
Length in
Meters
(feet)
0
12.5
(41)
25
(82)
50
(164)
100
(328)
150
(492)
200
(656)
250
(820)
300
(984)
350
(1148)
400
(1312)
420
(1378)
Maximum
Electric
Current in
amps
8.00 8.00 8.00 5.65 2.86 1.91 1.44 1.15 0.96 0.82 0.72 0.69

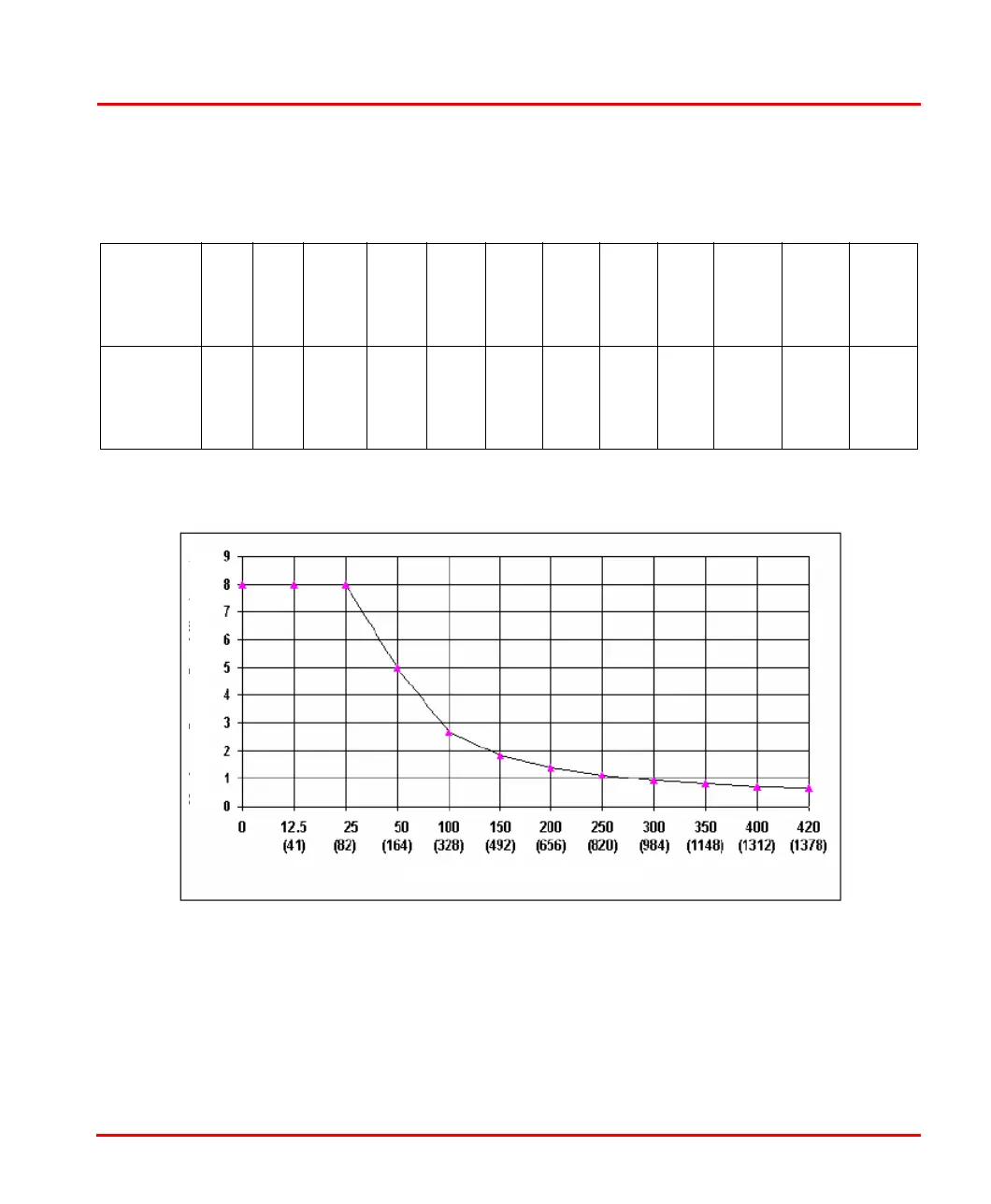

Figure 11. Electric Current Capability on DeviceNet Power Bus
Maximum Current Capability (amps)
Length of Network in meters (feet)
