Connection of Freelance I/O racks Section 3 Modules
46 M&I – AC 900F Controller
CAN Bus connector

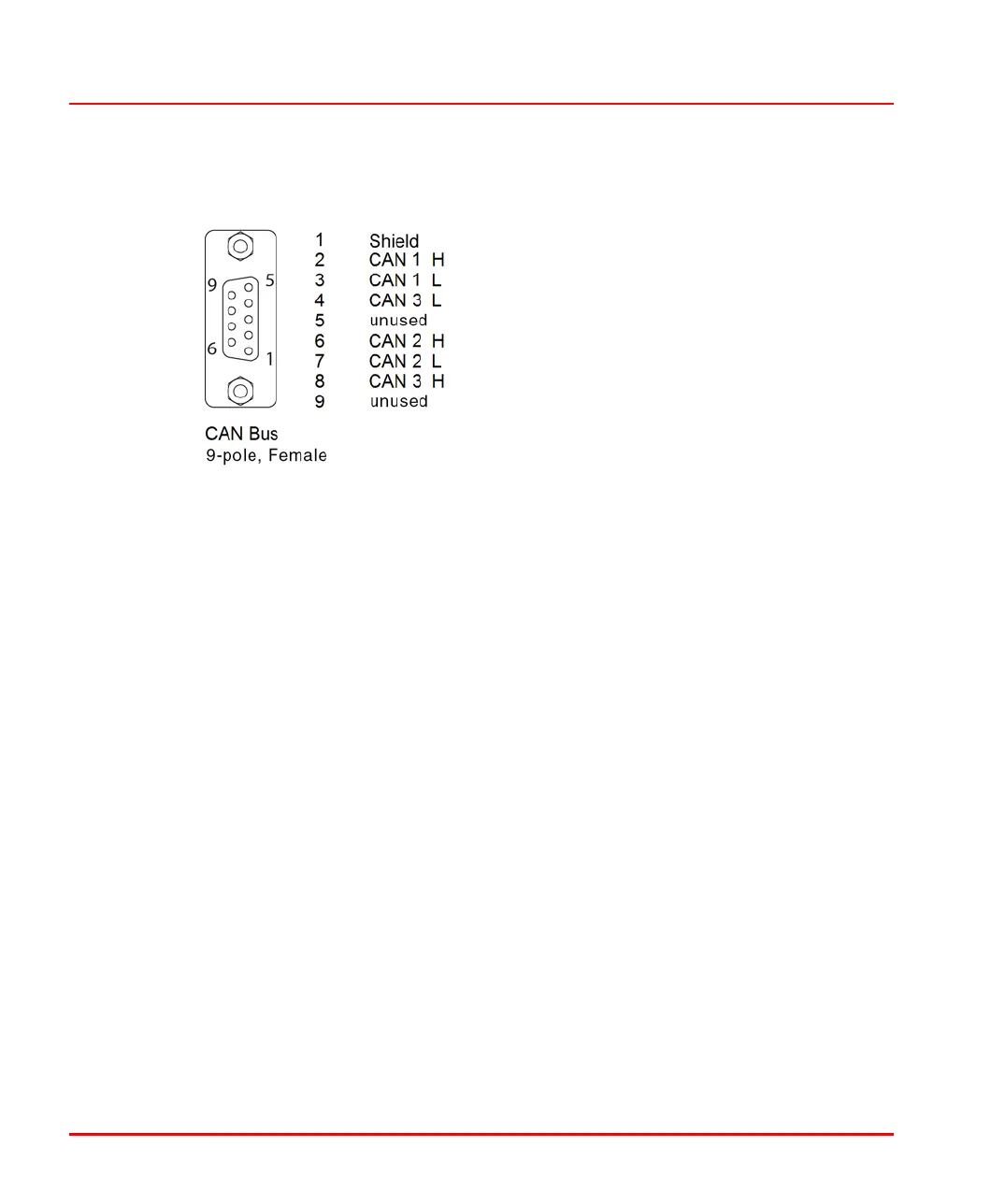

The CAN Bus connector of CI 910F features the following pin assignment:
CAN_Bus_Pin assignment_us.png
Connection of Freelance I/O racks
When connecting the AC 900F controller to a Freelance rack, you have to remove
the DCP 02/10 CPU modules.
For detailed information about the accessories, e.g.regarding their function, pin
assignment, wire color, cable length etc. please refer to Section 4, Accessories.
AC 900F controller at the beginning (end) of the CAN Bus
The TP 910F CAN Bus termination plug is used for terminating the three CAN
busses directly at the controller at the beginning (end) of the bus lines. The open end
of the TK 811F CAN cable is connected to the screw terminals of the TP 910F plug.
