Section 7 Commissioning Controller configuration via display unit
M&I – AC 900F Controller 105
Controller configuration via display unit

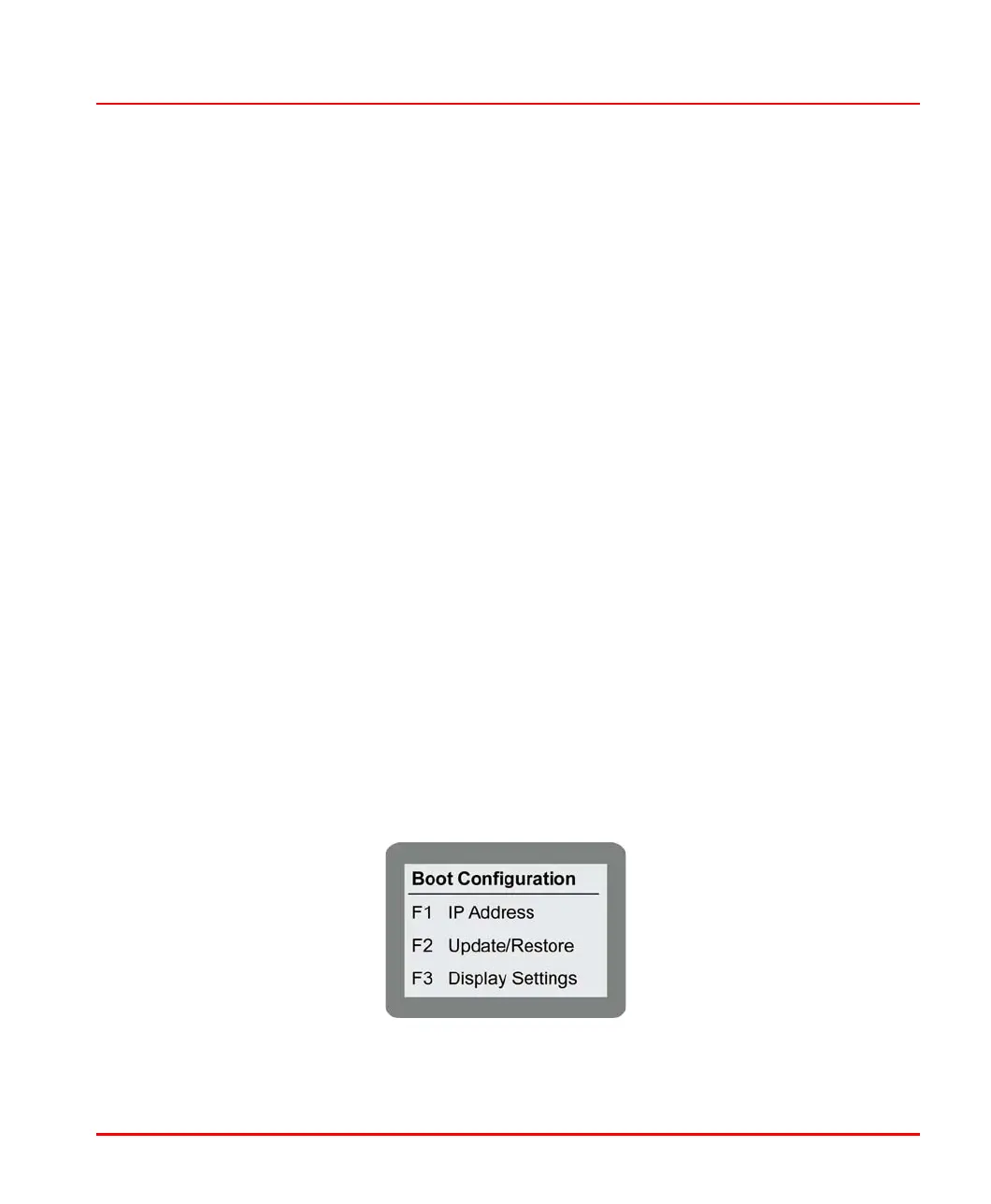

During the first controller start, the TD 951F display shows the Boot Configuration
menu and a prompt for entering the basis settings.
Boot configuration
In order to activate the configuration mode of a controller during operation, the
controller supply voltage must be switched off and on again with the ESC key being
pressed and held during restart.
The Boot Configuration menu features three submenus.
Boot configuration
F1:IP addresses
Control Net
Gateway
Redundancy
F1: ETH1
F2: ETH2
F3: ETH3
F4: ETH4
F2: Update/Restore
Please refer to section 8 “Service”
F3: Display settings
Backlight
Contrast
To Next Page
