Chapter 6 – Service and Maintenance
ACS 501 Installation & Start-up Manual 6-13

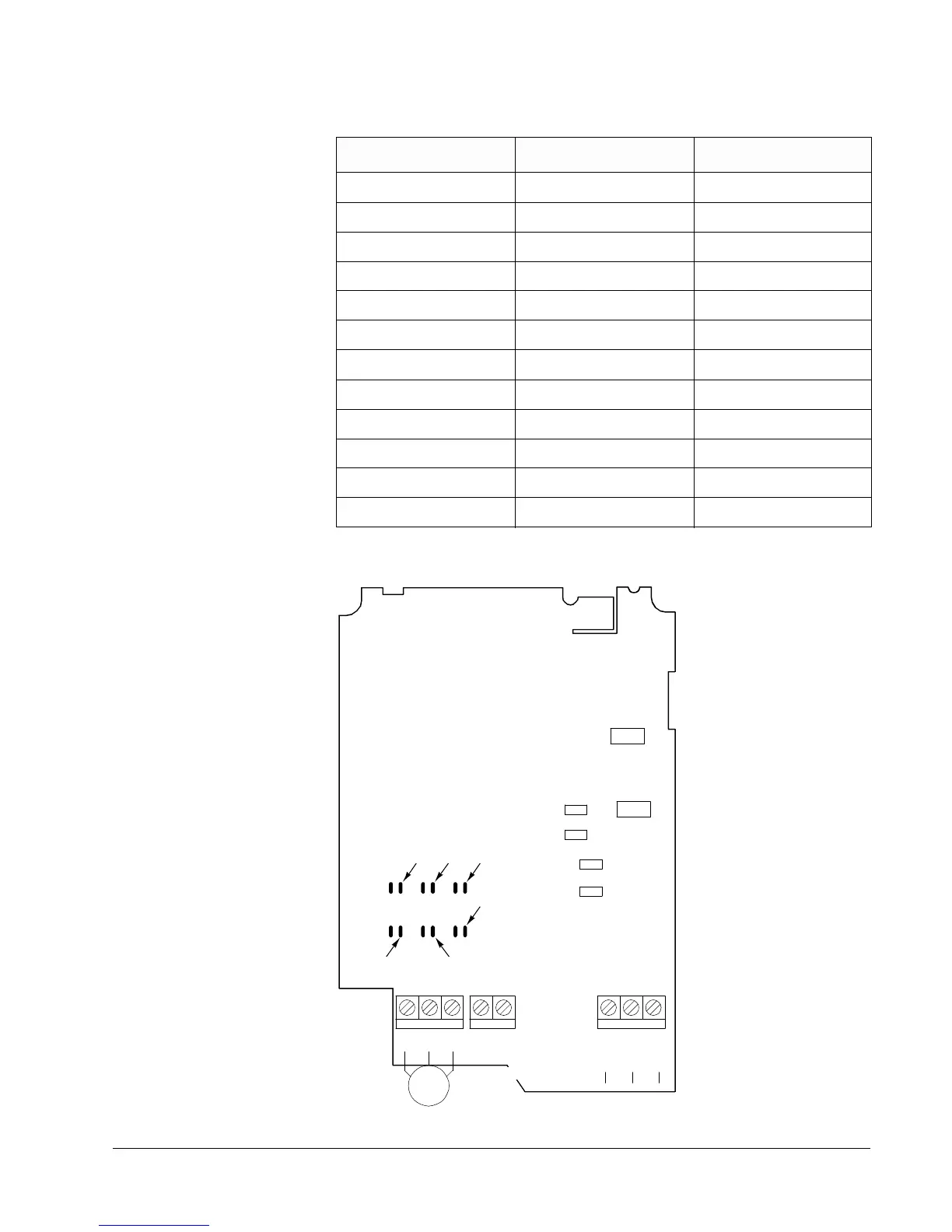

Table 6-4 Meter Connections
Figure 6-6 Motor Control Card
Meter (+) Test Probe Meter (-) Test Probe Reading
G1 X3:W2 1.5
G1 X2:(+) 1.5
G2 X3:V2 1.5
G2 X2:(+) 1.5
G3 X3:U2 1.5
G3 X2:(+) 1.5
G4 X3:W2 1.2
G4 X2:(-) 1.2
G5 X3:V2 1.2
G5 X2:(-) 1.2
G6 X3:U2 1.2
G6 X2:(-) 1.2
G6 G5
G3 G2
G1
G4
Motor Control Card
R11
X9
X7
X8
X6
R3
W1V1U1
Line Input
X1X2X3
M
3 ~
+-
U2 V2 W2
L1 L2 L3
Brake
Chopper
