ABB ACS140 - Output Display; Menu Structure; Setting Parameter Value

22

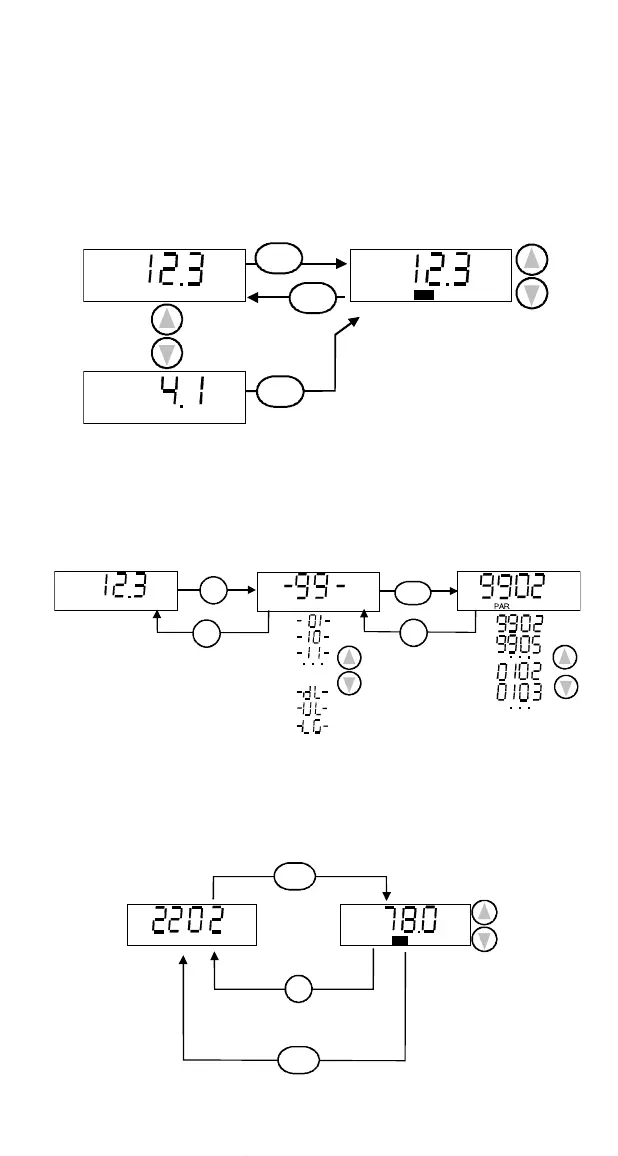

Output Display
When the control panel is powered up, the panel displays the actual output
frequency. Whenever the MENU button is pressed and held, the control panel
resumes this OUTPUT display.
To toggle between output frequency and output current, press the UP or
DOWN button.
To set the output frequency in local control (LOC), press ENTER. Pressing
the UP/DOWN buttons changes the output immediately. Press ENTER again
to return to OUTPUT display.
Menu Structure
ACS140 has a large number of parameters. Of these, only the so-called
basic parameters are initially visible. The menu function -LG- is used to
make the full parameter set visible.
Setting Parameter Value
Press ENTER to view the parameter value.
To set a new value, press and hold ENTER until SET is displayed.
Note! SET blinks, if the parameter value is altered. SET is not displayed, if
the value cannot be altered.
Note! To view the parameter default value, press the UP/DOWN buttons
simultaneously.
OUTPUT
Hz
SET
OUTPUT
Hz
OUTPUT
A
ENTER
ENTER
ENTER
LOC
LOC
LOC
OUTPUT display
Parameter groups
Parameters
OUTPUT
Hz
LOC
LOC
ME NU
LOC
ENTER
MENU
MENU
MENU
...
PAR
SET
s
MENU
ENTER
ENTER
CANCEL
STORE
