31
Application Macro Factory (1)
This macro is intended for applications where there is no control panel
available. It provides a general purpose 3-wire I/O configuration.
The value of parameter 9902 is 0. DI 4 is connected.
*Note! DI 4 is used to configure ACS140. It is read only once when power is
connected. All parameters marked with * are determined by the DI4 input.
Note! Stop input (
DI2) deactivated: panel START/STOP button interlocked
(local).
Factory (1) parameter values:
Input signals Output signals DIP switch S1
• Start, stop and direction (DI1,2,3) • An. output AO: Frequency
• Analogue reference (AI1) • Relay output 1: Fault
• Ramp pair 1/2 selection (DI5) • Relay output 2: Running
*1001
EXT 1 COMMANDS 4 (DI1P,2P,P) 1106 EXT REF2 SELECT 0 (KEYPAD)
1002
EXT 2 COMMANDS 0 (NOT SEL) *1201 CONST SPEED SEL 0 (NOT SEL)
1003
DIRECTION 3 (REQUEST) 1601 RUN ENABLE 0 (NOT SEL)
1102
EXT1/EXT2 SEL 6 (EXT1) 2105 PREMAGN SEL 0 (NOT SEL)
1103
EXT REF1 SELECT 1 (AI1) 2201 ACC/DEC 1/2 SEL 5 (DI5)
S1:1:U
ON ON

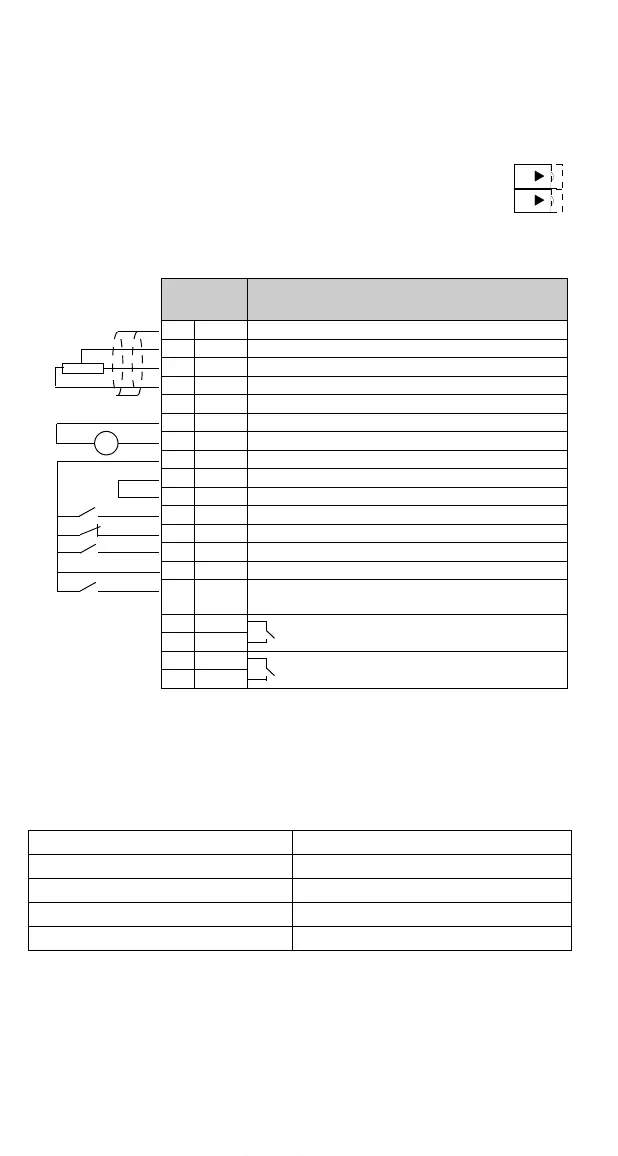

Control
Terminals
Function
1SCR
2 AI 1 External reference1; 0...10 V <=> 0...50 Hz
3AGND
4 10 V Reference voltage 10 VDC
5 AI 2 Not used
6AGND
7 AO Output frequency 0...20 mA <=> 0...50 Hz
8AGND
9 +12 V +12 VDC
10 DCOM
11 DI 1 Momentary activation with DI2 activated: Start
12 DI 2 Momentary deactivation: Stop
13 DI 3 Fwd/Rev; Activate to reverse rotation direction
14 DI 4 Has to be connected!*
15 DI 5 Ramp pair selection. Activate to select ramp pair 2.
Defaults: 5 s (ramp pair 1), 60 s (ramp pair 2)
16 RO 1A Relay output 1
Fault: open
17 RO 1B
18 RO 2A Relay output 2
Running: closed
19 RO 2B
mA
