46

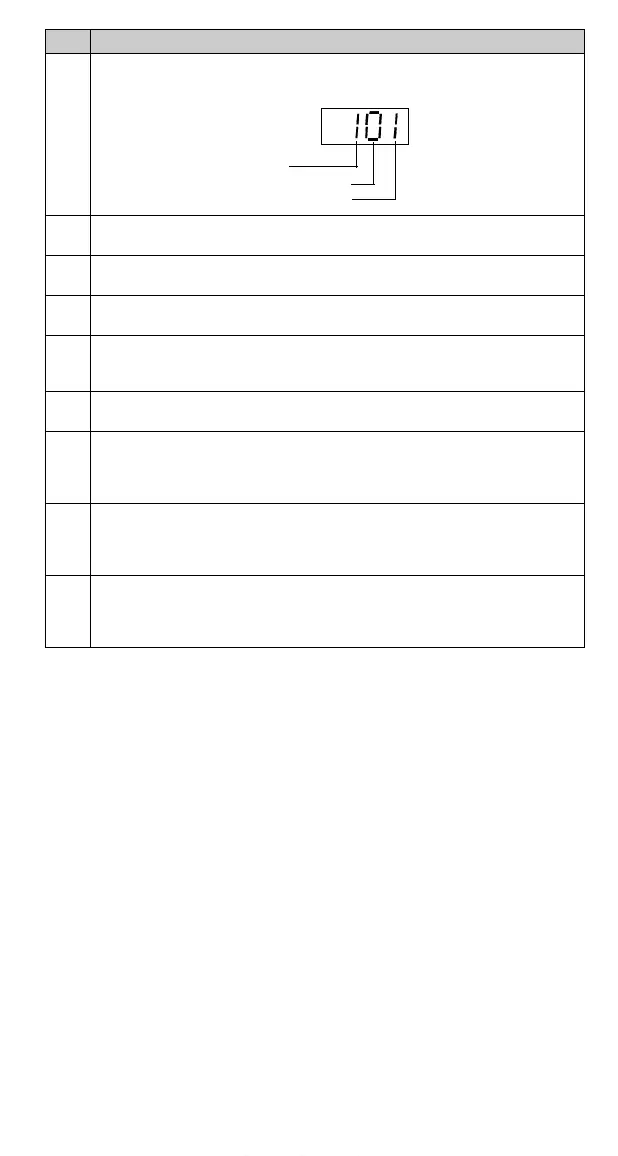

0121 DI5 & RELAYS
Status of digital input 5 and relay outputs. 1 indicates that the relay is energised
and 0 indicates that the relay is de-energised.
0122 AO
Value of analogue output signal in milliamperes.
0124 ACTUAL VALUE 1
PID Controller actual value 1 (
ACT1), displayed in per cent (%).
0125 ACTUAL VALUE 2
PID Controller actual value 2 (
ACT2), displayed in per cent (%).
0126 CONTROL DEV
Displays the difference between the reference value and the actual value of the
PID process controller, displayed in per cent (%).
0127 ACTUAL VALUE
Feedback signal (actual value) for PID controller, displayed in per cent (%).
0128 LAST FAULT
Last recorded fault (0=no fault). See “Diagnostics” on page 81.
Can be cleared with the control panel by pressing UP and DOWN buttons
simultaneously when in parameter set mode.
0129 PREVIOUS FAULT
Previous recorded fault. See “Diagnostics” on page 81.
Can be cleared with the control panel by pressing UP and DOWN buttons
simultaneously when in parameter set mode.
0130 OLDEST FAULT
Oldest recorded fault. See “Diagnostics” on page 81.
Can be cleared with the control panel by pressing UP and DOWN buttons
simultaneously when in parameter set mode.
Code Description
Relay 1 status
Relay 2 status
DI 5
