105 ACS2000 AFE 2MVA UM 3BHS355653 ZAB E01 REV. H
Preparing cables for cable entries with sealing
modules
Top or bottom entry
1. Unscrew the frame and remove the sealing
modules.
2. Prepare the cables with an outer cable screen
for EMC bonding with the metal enclosure of
the cabinet as illustrated in 6-11.
!
For information on removing and install-
ing the sealing modules, see Appendix A –
Additional manuals.
—
References
—

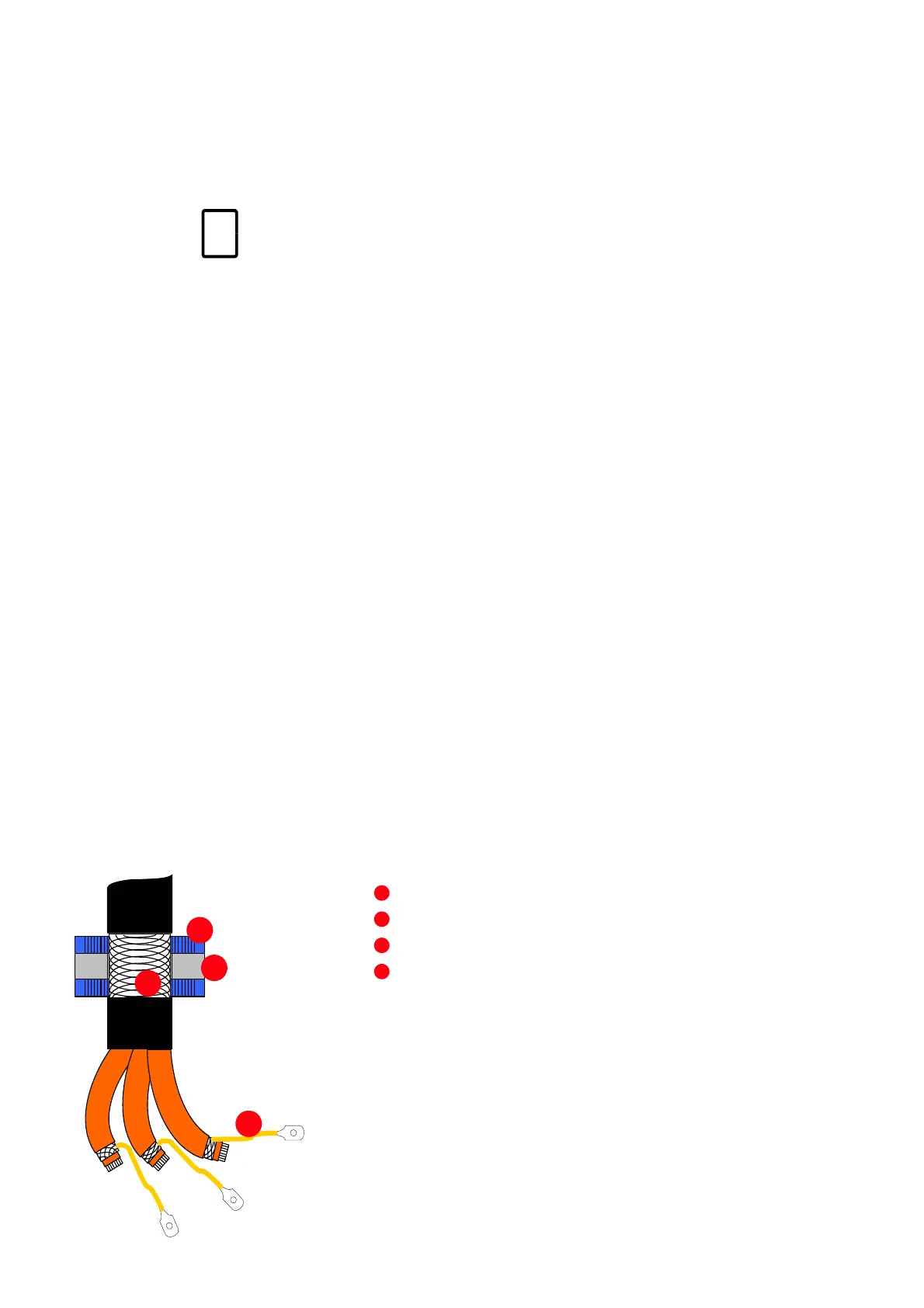

6-11 Preparing control
cables for sealing
modules
—
6-9
Sealing module
Conductive foil
Cable sheath removed to expose cable shield
Conductor screen extension to be connected to PE terminal
1
2
3
4
1
2
3
4
