Overview
The ACS550 can be set up to accept control from an external system using standard
serial communication protocols. When using serial communication, the ACS550 can
either:
• receive all of its control information from the fieldbus, or
• be controlled from some combination of fieldbus control and other available
control locations, such as digital or analog inputs and the control panel.
Two basic serial communications configurations are available:
• embedded fieldbus (EFB) – See chapter Embedded fieldbus on page 219.
• fieldbus adapter (FBA) – With one of the optional FBA modules in the drive’s
expansion slot 2, the drive can communicate to a control system using one of the
following protocols:
– PROFIBUS DP®
– LonWorks®
– Ethernet (Modbus/TCP®, Ethernet/IP®)
– CANopen®
– DeviceNet®
– ControlNet®.
The ACS550 detects automatically which communication protocol is used by the
plug-in fieldbus adapter. The default settings for each protocol assume that the
profile used is the protocol’s industry-standard drive profile (e.g. PROFIdrive for
PROFIBUS, AC/DC Drive for DeviceNet). All of the FBA protocols can also be
configured for the ABB Drives profile.
Configuration details depend on the protocol and profile used.These details are
provided in a user’s manual supplied with the FBA module.

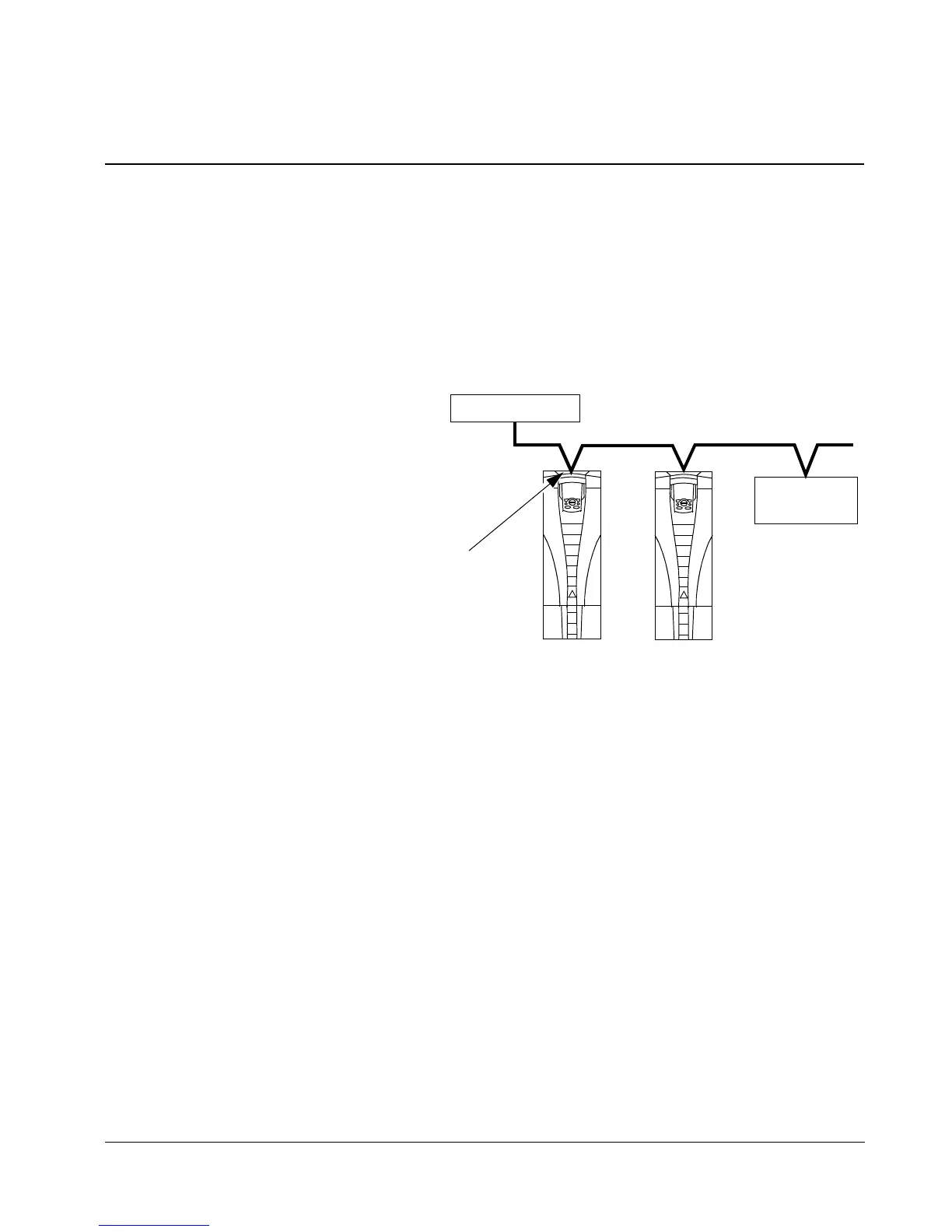

Connect using either:
•
standard embedded fieldbus (EFB) at
terminals X1:28…32
•
fieldbus adapter (FBA) module mounted
in slot 2 (option Rxxx)
Fieldbus
Fieldbus controller
Other devices
