10 The Main menu structure
Submenus
The Main menu items have submenus where you can change settings and set
actions. Some submenus also contain menus and/or option lists. The content of the
submenus depend on the drive type.

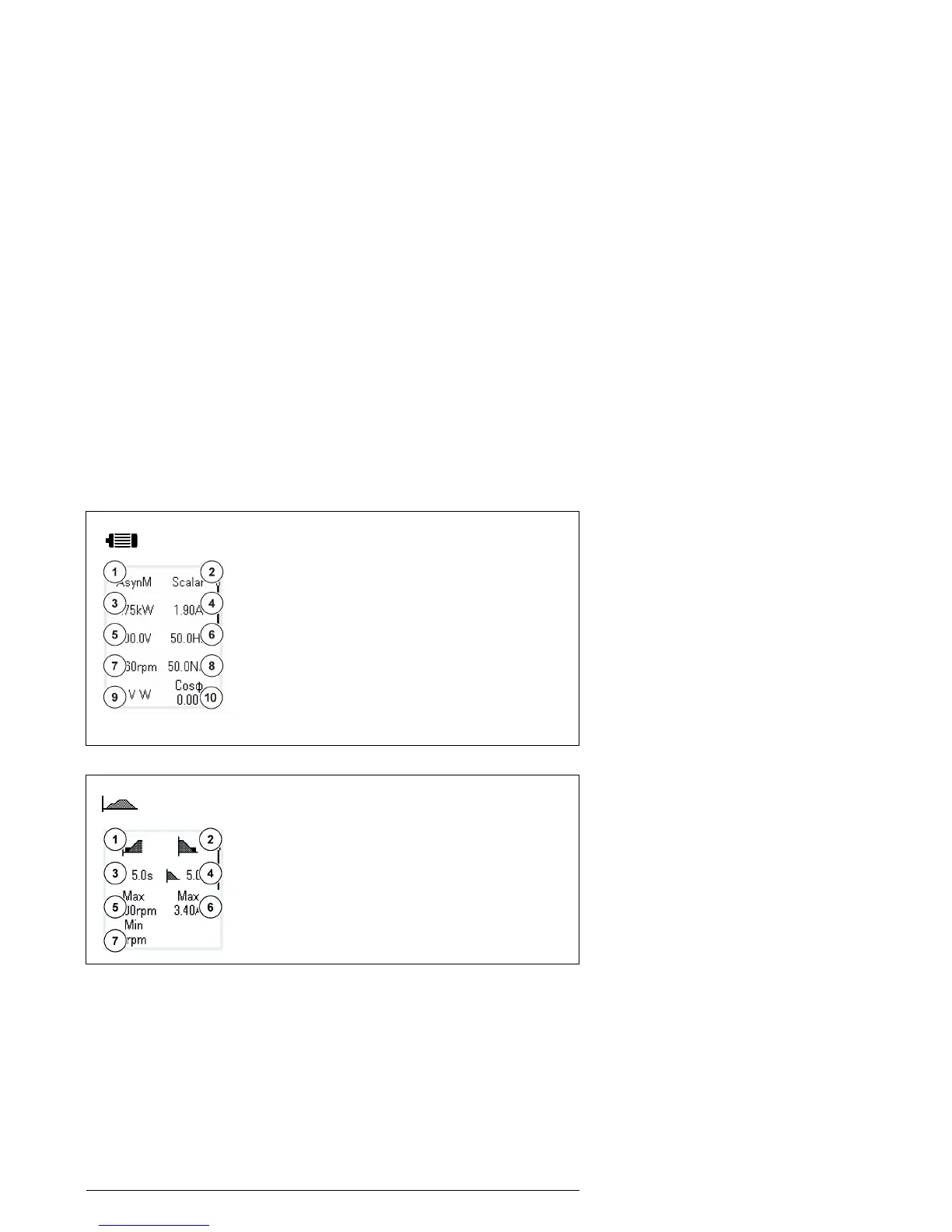

Motor Data
1. Motor type - AsynM, PMSM
2. Control mode - Scalar, Vector
3. Motor nominal power
4. Motor nominal current
5. Motor nominal voltage
6. Motor nominal frequency
7. Motor nominal speed
8. Motor nominal torque
9. Phase order - U V W, U W V
10.Cos Φ
Motor Control
1. Start mode - Automatic, Flying start
2. Stop mode - Coast, DC hold, Ramp
3. Acceleration time
4. Deceleration time
5. Maximum allowed speed/ frequency
6. Maximum allowed current
7. Minimum allowed speed/ frequency
