ABB ACSM1-04 User Manual

Quick installation guide - ACSM1-04/04Lx
10

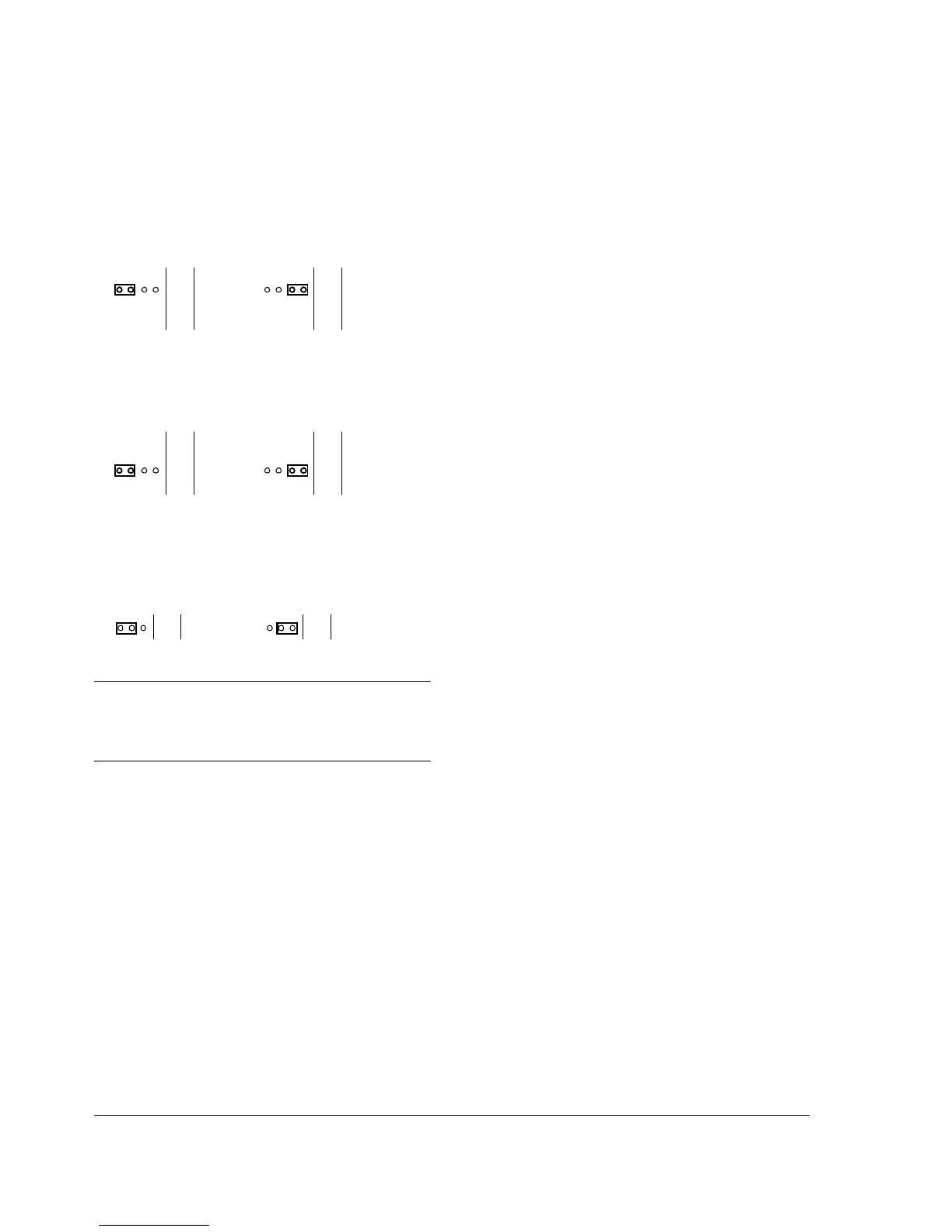

• Set the jumpers on the control unit to the
appropriate position:
J1 – Determines whether Analogue input AI1
is used as a current or voltage input.
J2 – Determines whether Analogue input AI2
is used as a current or voltage input.
J3 – Drive-to-drive link termination. Set to
ON if the drive is the last unit on the link.
Continue with drive start-up according to the
instructions in the appropriate Firmware
Manual.
AI1
AI2
8
7
AI1
AI2
8
7
Current Voltage
AI1
AI2
8
7
AI1
AI2
8
7
Current Voltage
T
Termination ON Termination
OFF
T
