Quick installation guide - ACSM1-04/04Lx
8
Control cabling

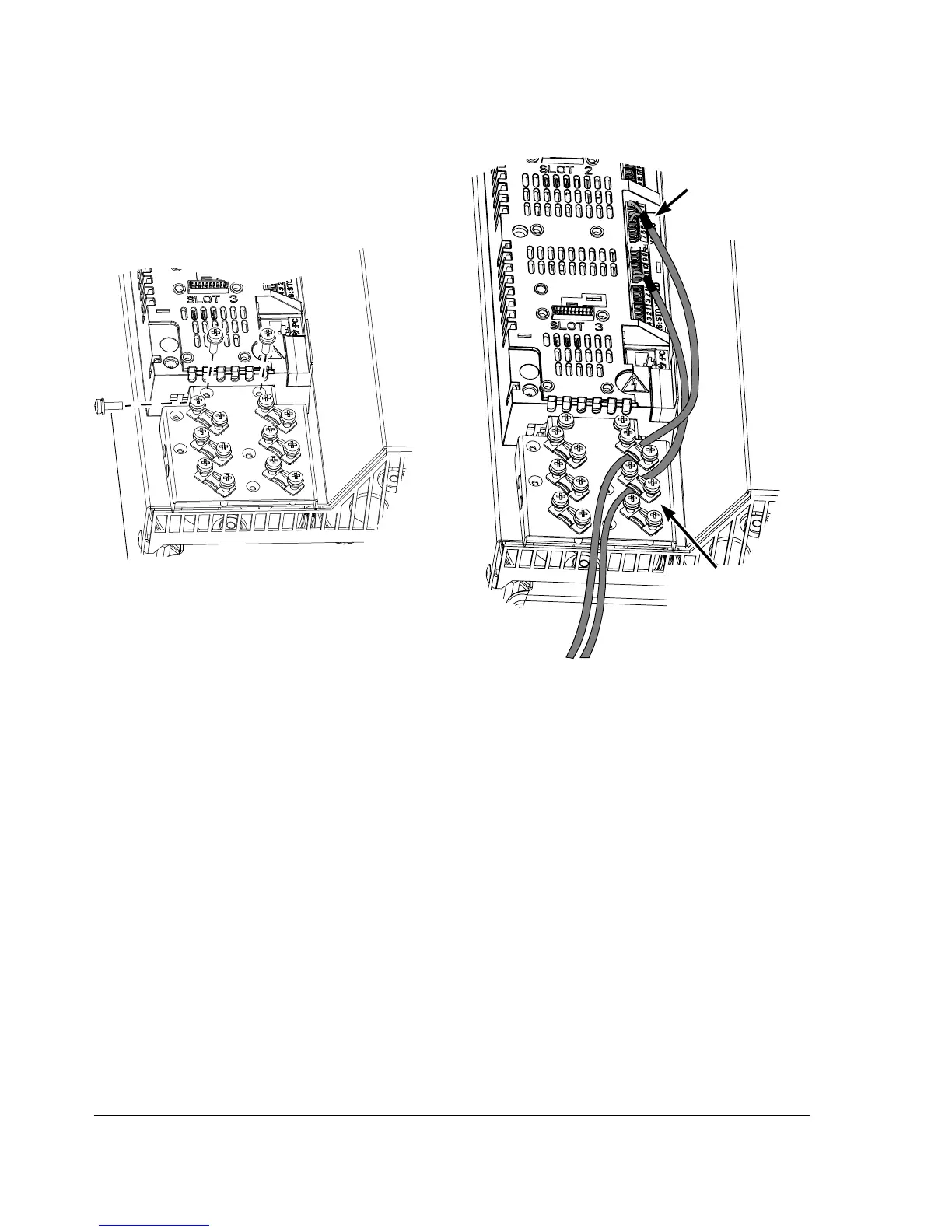

The drive comes with a clamp plate that can be
fastened at the top or the bottom of the JCU
Control Unit.
0.7 N·m
(6.2 lbf·in)
Use shrink tubing
or tape to contain
strands
Remove outer jacket
of cable at clamp to
expose cable shield.
Tighten to 1.5 N·m
(13 lbf·in)
