ABB AMTD-1 P - Page 13

9
Instructions for the assemblage and the use
4 5
V V
> 3 sec.

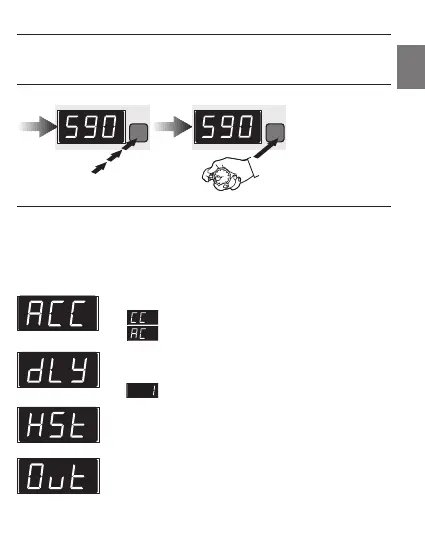

Functions available
Select current to use
-
= direct current
-
= alternating current
4
Press the button repeatedly to view the required value.
5 Press and hold the button for at least 3 seconds to confirm the value selected.
Alarm tripping delay in seconds
- 1-5-10-20-30
-
= tripping without delay
Alarm cutout hysteresis in % of the threshold
- 5-10-20-40
Alarm output configuration
- nO/nC
