Installation and operating instructions, ATS021

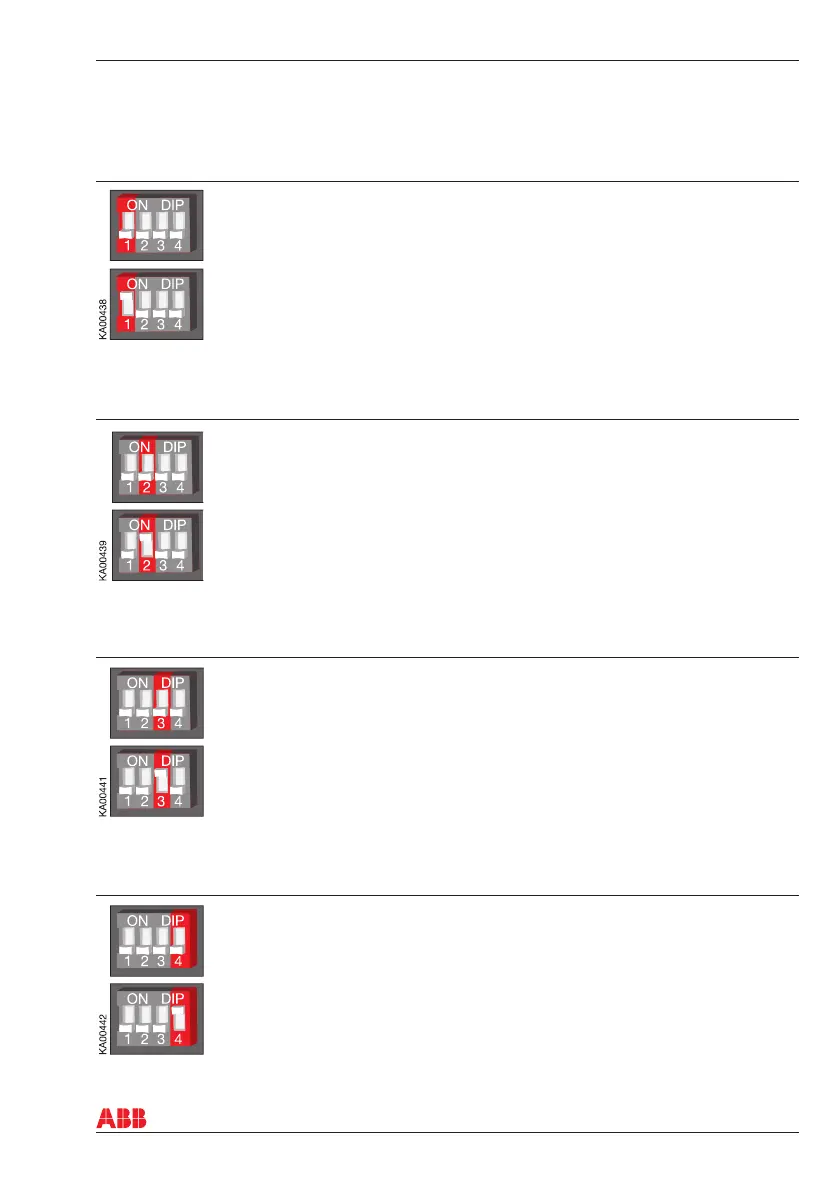

DIP switches S24
DIP-switch S24-1 to set neutral
S24-1 Position Neutral N
OFF N used (default)
ON N not in use
DIP- switch S24-2 to set phase system
S24-2 Position Phase system
OFF three-phase (default)
ON single phase
DIP-switch S24-3 to set the gen use
S24-3 Position Generator
OFF not in use (default)
ON in use
DIP-switch S24-4 to set the generator stop delay Tgoff
S24-4 Position Tgoff
OFF Tgoff = TS (default)
ON Tgoff = 5 minutes
