ABB ATS021 - Mounting the ATS021; Door Mounting Procedure

Installation and operating instructions, ATS021
1SDH000759R0002, L4106
20
160
KA00480
174
9,5
114
115
91
139
5
Ø
19,5
1
2
2a
2b
5. Installation

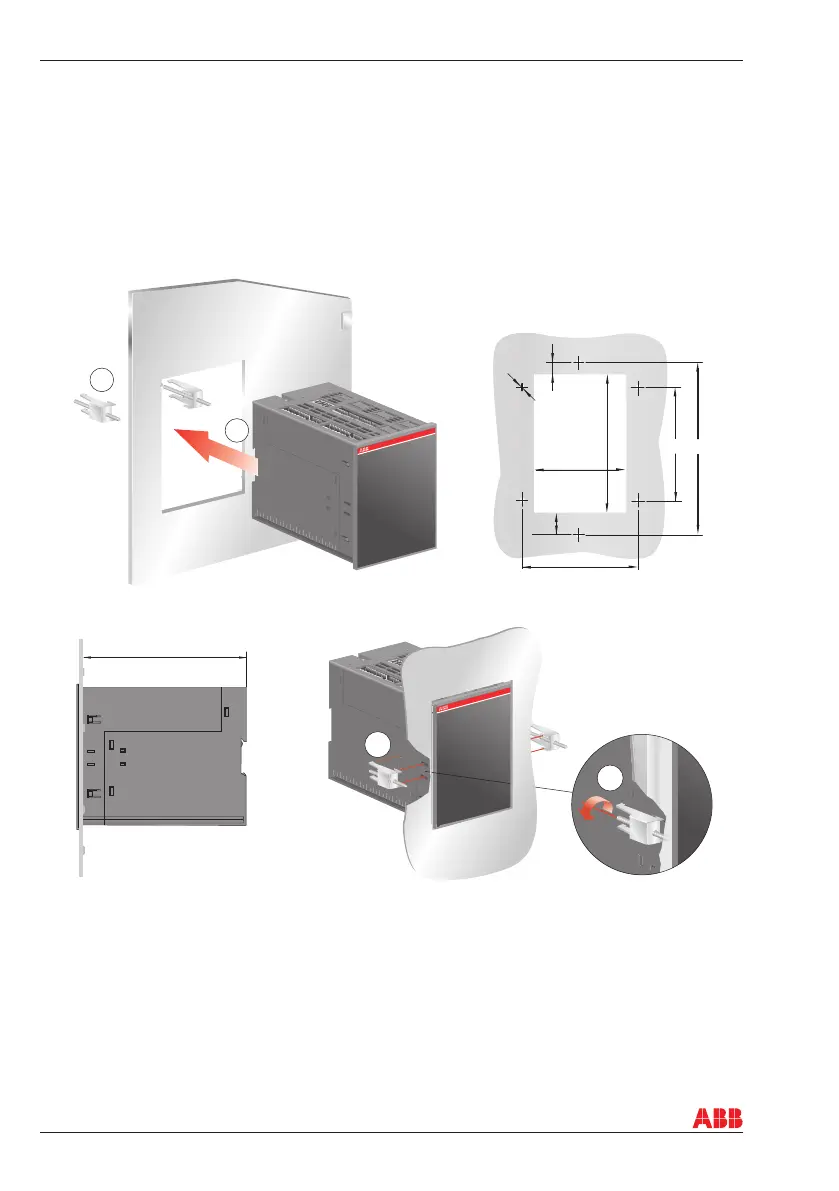

Figure 5.3 Automatic transfer switch ATS021, door mounting
5.2 Mounting the automatic transfer switch ATS021
The automatic transfer switch ATS021 can be mounted on the door or the DIN-rail.
5.2.1 Automatic transfer switch ATS021, door mounting
The automatic transfer switch ATS021 can be mounted on the door with the fastener, see Figure 5.3 /j
and k. Door drilling when mounted on the door according to Figure 5.3.
