3
+
0 to 95% RH
0 to 80% RH
55°C
(131°F)
Max.
0°C
(32°F)
Min.
A – Within Temperature Limits
B – Within Humidity Limits
C – Use Screened Cables
12.63 (320.8)
12.63
( 320.8)
0.32 (8.3)
2.23
(56.8)
1.18 (30.1)
1.18 (30.1)
Dimensions in inches (mm)
2.60 (66)
1.38 (35.1)
0.94 (22.4)
7.22
(183.4)
1.44 (36.6) Typical Space Between
Adjacent Knockout Centers
1.30 (33)
15.23
(386.8)
15.04 (382)

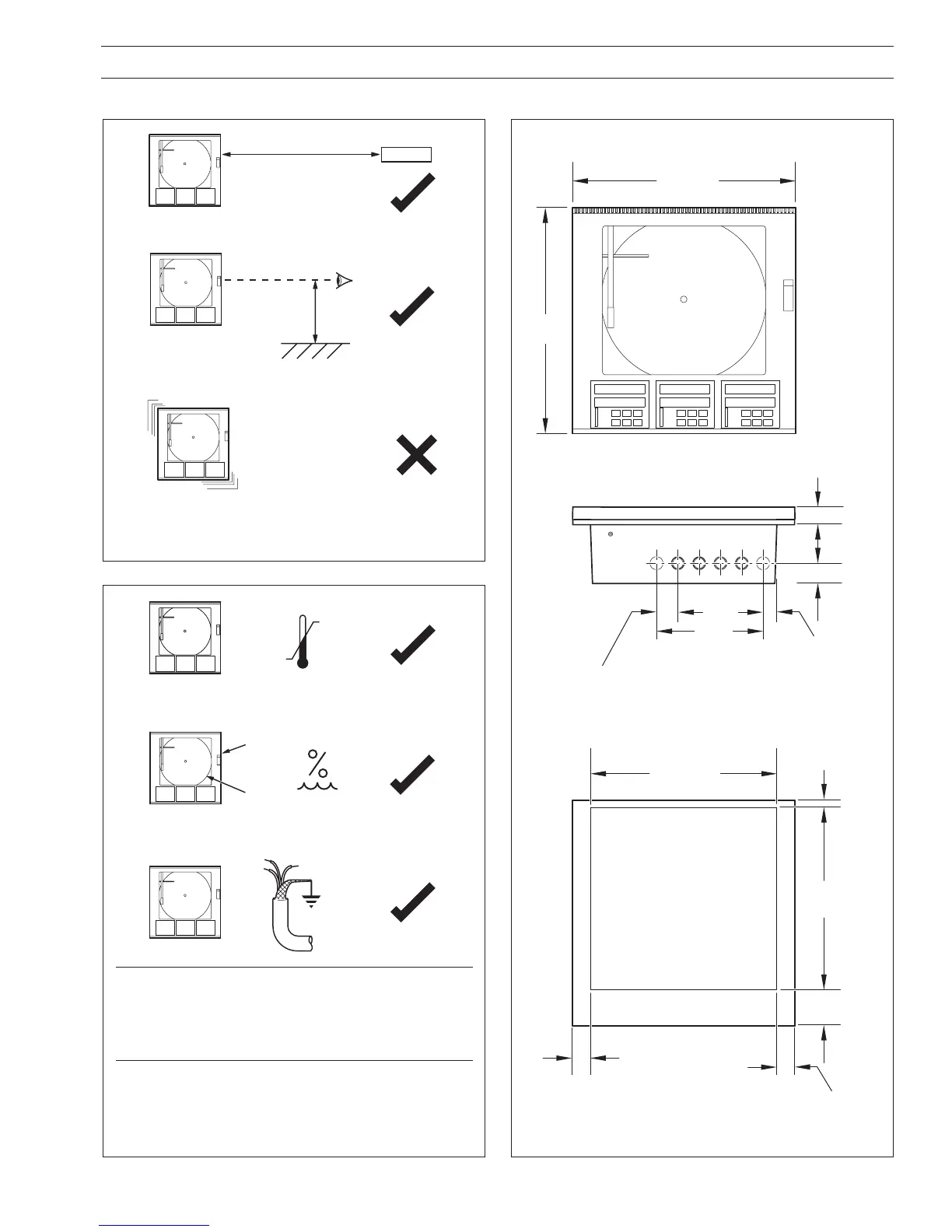

3 MECHANICAL INSTALLATION
3.1 Siting – Figs 3.1 and 3.2 3.2 Mounting – Figs. 3.3 to 3.5
Caution. Select a location away from strong electrical
and magnetic fields. If this is not possible, particularly in
applications where mobile communications equipment
is expected to be used, screened cables within earthed
(grounded) metal conduit must be used.
Fig. 3.2 Environmental Requirements Fig. 3.3 Overall Dimensions
Fig. 3.1 General Requirements
Sensor
Minimum
A – Close to Sensor
C – Avoid Vibration
B – At Eye-level Location
