4

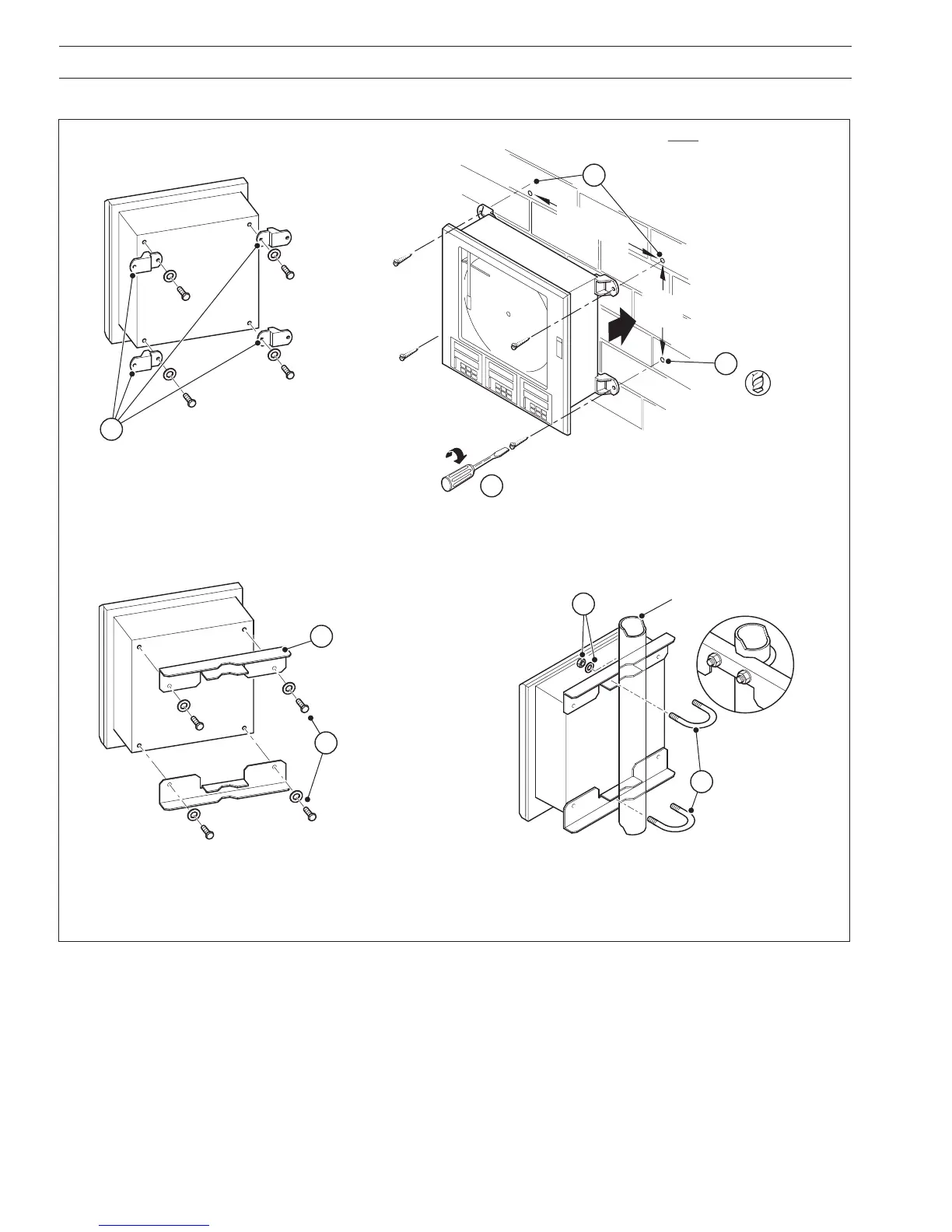

3.2.1 Wall-/Pipe-Mounting – Fig. 3.4
Fig. 3.4 Wall-/Pipe Mounting
…3 MECHANICAL INSTALLATION
B – Pipe-Mounting (Optional)
A – Wall-mounting (Optional)
3
2
4
Mark fixing centers on wall (4)
Drill suitable
holes (4)
Secure instrument to
wall using suitable fixings
14.81 (376.3)
11.06
(281.0)
Secure mounting
brackets (4) to case
1
Position mounting
brackets to suit horizontal
pipe-mounting or vertical
pipe-mounting as required
Secure mounting
brackets to case using
bolts and washers
2
1
3
Fit 'U' bolts
into brackets
Secure using
two nuts and
washers
2
3
/
8
in. (60mm) OD
horizontal or vertical pipe
4
