ABB CL-LMR 18AC2 Series User Manual

7-day time switch
141
1SVC 440 795 M0100

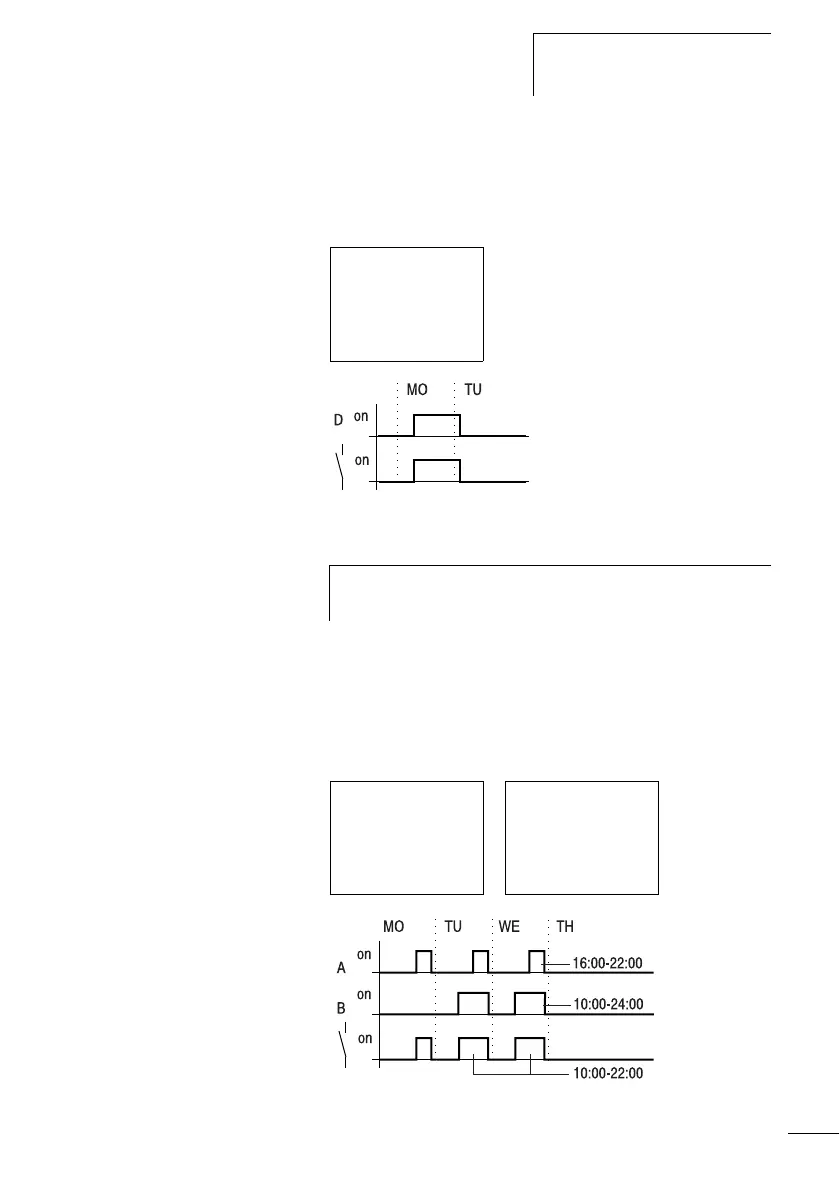

Night switching example
Time switch
Ö3 switches on at 22:00 on Monday and
switches off at 06:00 on Tuesday.
Figure 60: Night switching signal diagram
Time overlaps example
The time settings of a time switch overlap. The clock
switches on at 16:00 on Monday, whereas on Tuesday and
Wednesday it switches on at 10:00. On Monday to
Wednesday the switching-off time is 22:00.
Figure 61: Time overlaps signal diagram
Ö3 D +
D MO
ON 22:00
OFF 06:00
h
If the Off time is before the On time, the logic relay will
switch off on the following day.
Ö4 A +
D MO-MI
ON 16:00
OFF 22:00
Ö4 B +
D TU-WE
ON 10:00
OFF 00:00
