Wiring with the logic relay
158
1SVC 440 795 M0100

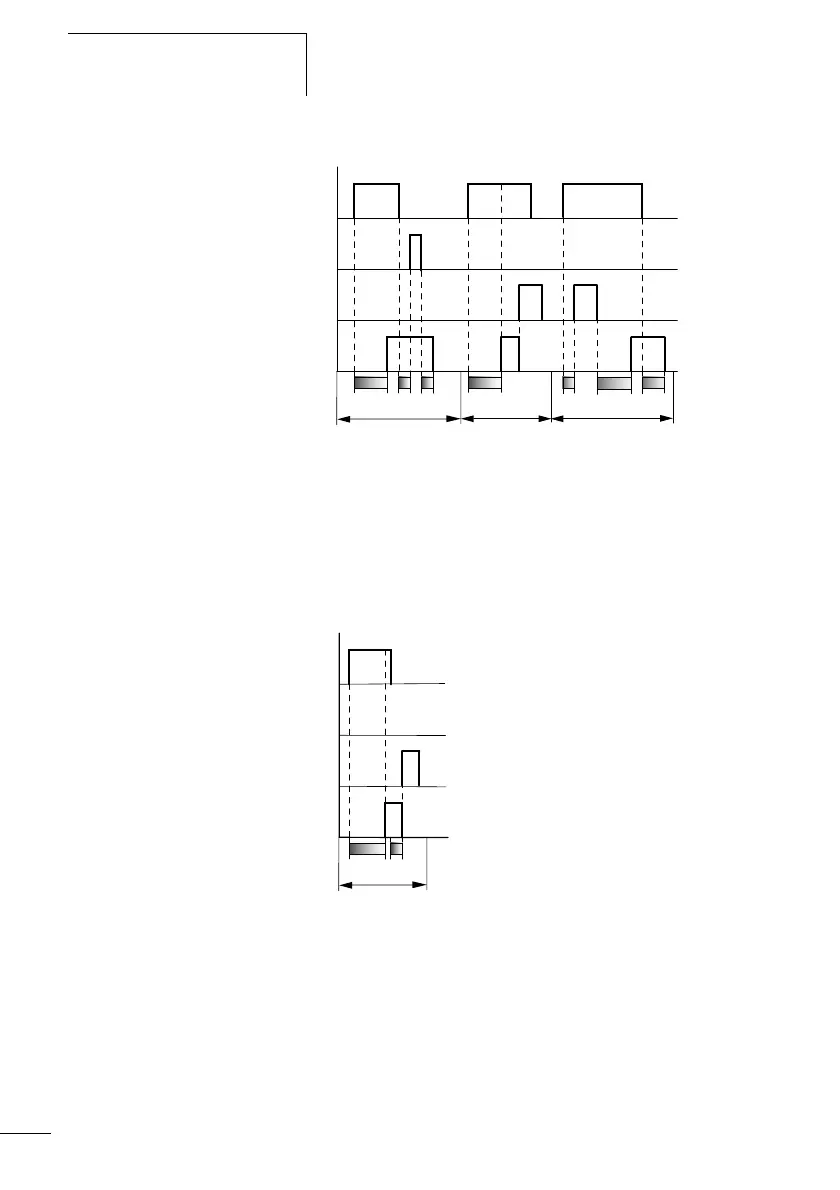

Figure 67: Signal diagram timing relay, on and off-delayed 2
• Range E: The stop coil stops the timeout of the off-delay.
• Range F: The reset coil resets the relay after the on-delay has
elapsed
• Range G: The reset coil resets the relay and the contact whilst the
on-delay is timing out. After the reset coil drops out, the time
elapses normally.
Figure 68: Signal diagram timing relay, on- and off-delayed 3
• Range H: The Reset signal interrupts the timing out of the set
time.
E
F
t
1
+ t
2
= t
s2
G
1
2
4
3
tt
s1
t
s1
t
s1
t
s2
H
t
1
2
4
3
t
s1
