TRANSFORMER COMPONENTS
Q.ty Description Reference standard
-
—
4. Installation
4.5 Comem OLI22 / Comem
eOLI22 (with special flange)
Insert the arm with float through the machined hole
on the conservator. Place the o-ring in the slot
behind the flange (Fig.19/C). Insert the flange on the
threaded pins (Fig.19/A) of the conservator flange
and fix it with the items showed in the table 6
(Fig.19/B). Fix the gauge on the flange using 4
screws M4x12 (Fig.19/D).

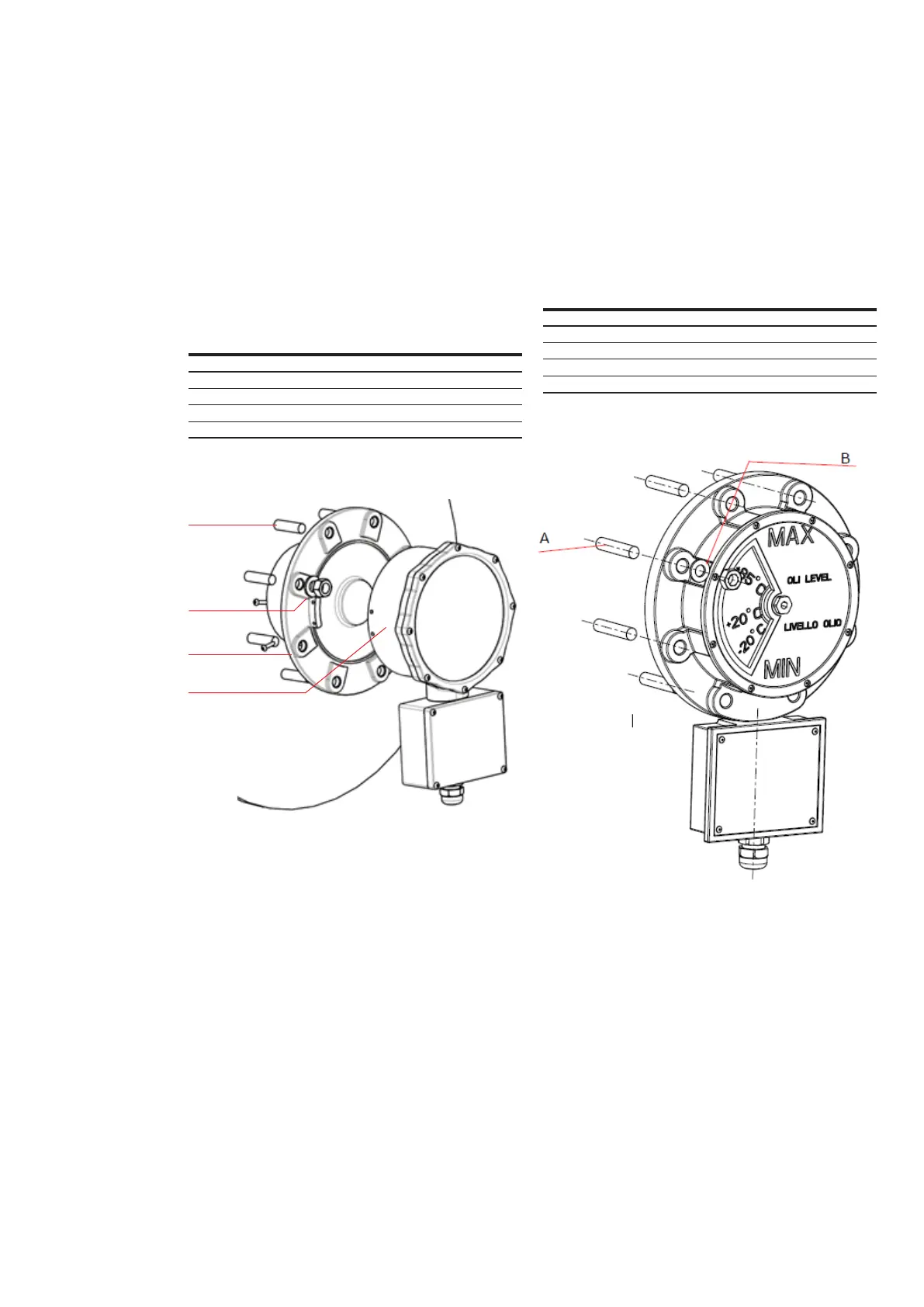

Figure 19
Q.ty Description Reference standard
-
Table 6
4.6 Comem L220
Insert the arm with float through the machined hole
on the conservator. Place the o-ring on the slot
behind the gauge. Insert the device on the threaded
pin of the conservator flange (Fig L220/A). The oil
level indicator has to be mounted using the items
(Fig.L220/B) showed in the table L220.).
Q.ty Description Reference standard
-
Table L 220
Figure L220
