Powerful operator display
The CM15 features a full-color 5.5 cm (2.2 in.) display for
displaying detailed process information to the user. Process
details such as alarm messages and diagnostic information are
displayed clearly in full text without the need for difficult-to-
read scrolling displays.
Example of an operator page
Automatic selection of standard display templates immediately
makes best use of the CM15's display. Extensive
customization features then enable the displayed information
to be tailored to suit the process requirements.
Diagnostics and alarm status display
The diagnostics and alarm status display provides detailed
information on any active alarm or diagnostic condition. The
operator can see, at-a-glance, the status of any alarm
condition present within the process. Additionally, diagnostic
messages are presented clearly to the operator, enabling rapid
notification and simple diagnosis of any critical instrument
status condition.
Historical information of diagnostic messages can also be
viewed in the indicator's diagnostic log.

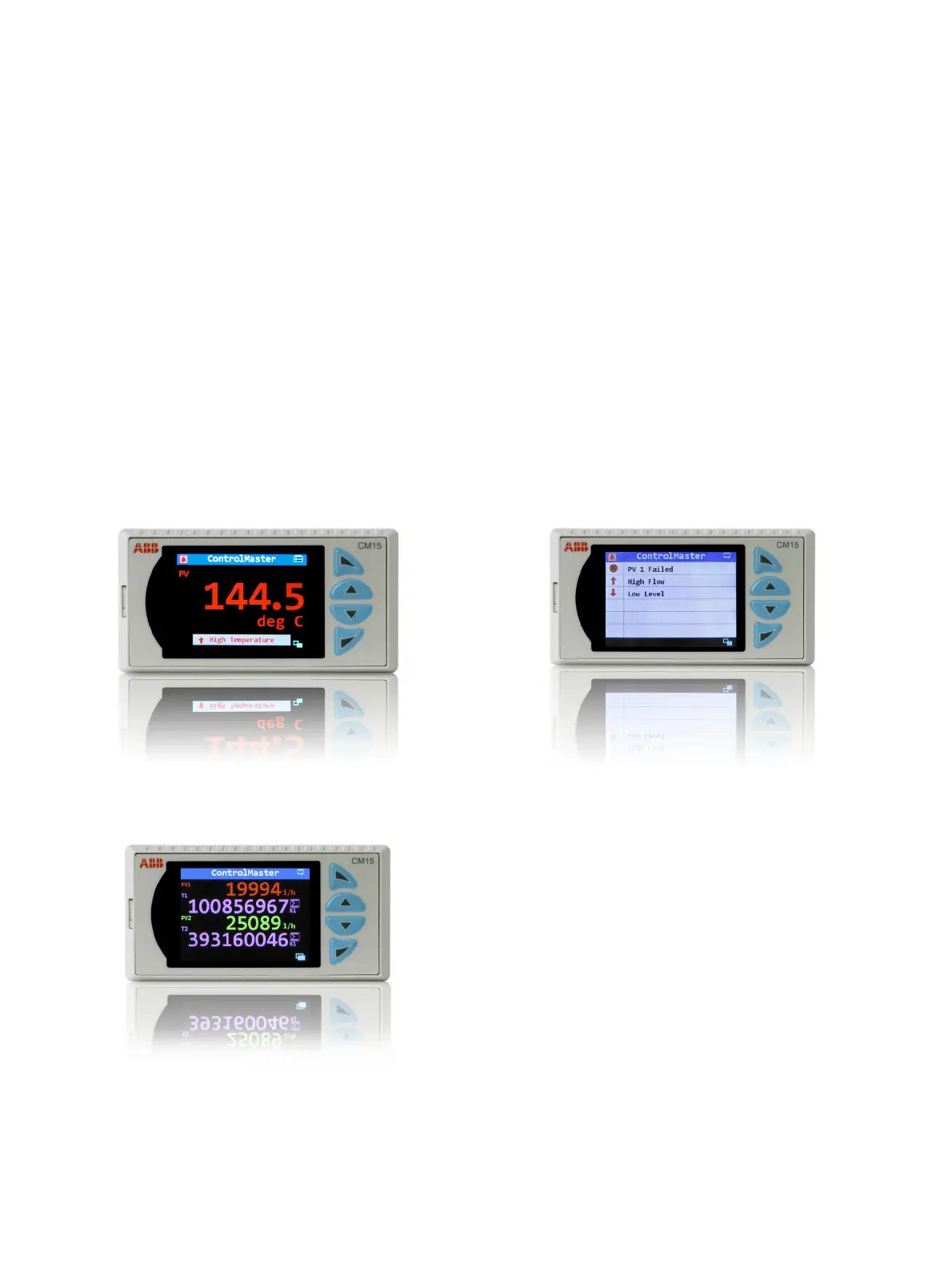

Fig. 2: Single PV indication template display
Fig. 3: Dual PV and totalization display
Fig. 4: Alarm status display
