ControlMaster CM15 | Universal process indicator,
1
/
8
DIN | DS/CM15–EN Rev. J 17
EMC
Emissions & immunity
Meets requirements of IEC 61326 for an Industrial Environment
Environmental
Operating temperature range
0 to 55 °C (32 to 131 °F) *
Operating humidity range
5 to 95 % RH (non-condensing)
Storage temperature range
–20 to 70 °C (–4 to 158 °F)
Enclosure sealing
Front face:
— IP 66 & NEMA 4X
Rest of enclosure:
—IP 20
Vibration
Conforms to EN60068–2–6
Safety
Approvals and certifications
EN 61010-1
cULus
General safety
Overvoltage Class III on mains, Class II on inputs and outputs
Pollution category 2
Insulation category 2
Isolation
Key
= Isolation
* Restrictions may apply – refer to relay specification on page 15
Electrical
Supply ranges
100 V to 240 V AC ±10 % (90 V min. to 264 V max.) 50 / 60 Hz
10 to 36 V DC (optional)
Power consumption
10 W max.
Power interruption protection
No effect for interrupts of up to 60 ms
Physical
Size
50 x 97 x 141 mm (2.0 x 3.8 x 5.5 in.)
Weight
0.38 kg (0.84 lb) approx. (unpacked)
Panel cutout
45 x 92 mm (1.8 x 3.6), 120 mm (4.8 in.) behind panel
Case material
Glass-filled polycarbonate

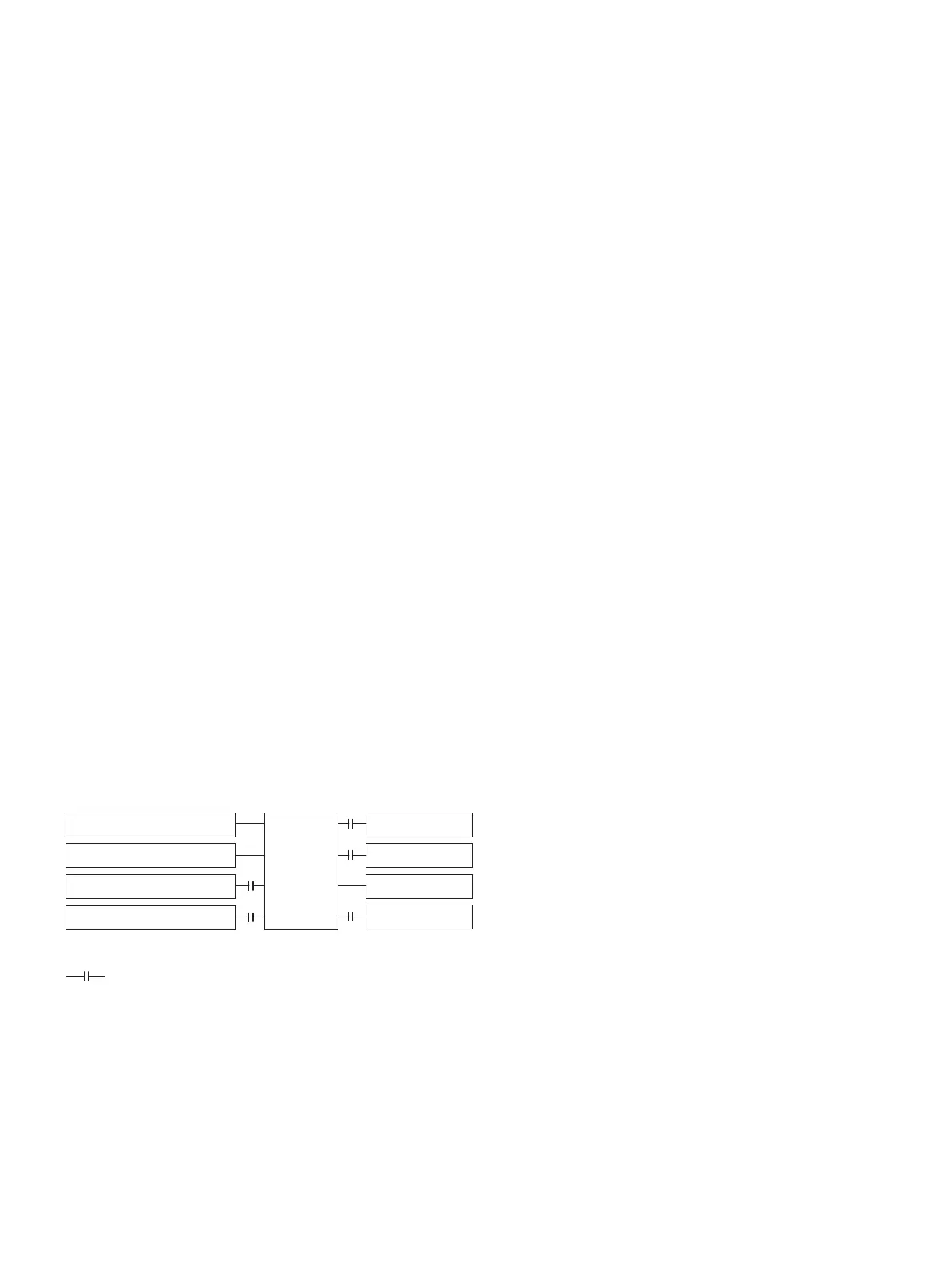

Analog Inputs
Analog Output 1
Analog Output 2
Mains Supply
CPU
Comms
Relays
Digital I/O
Transmitter Power Supply
