ControlMaster CMF160 | Universal process indicator, fieldmount | DS/CMF160–EN Rev. B 9
Application templates
To minimize commissioning time, the CMF160 features up to 8 pre-configured templates. Simply selecting the required template
configures the CMF160's function blocks and display automatically. Customization of the pre-configured templates is also
possible, providing the flexibility to create versatile solutions.
Single PV indication
This template provides indication of a single process value.

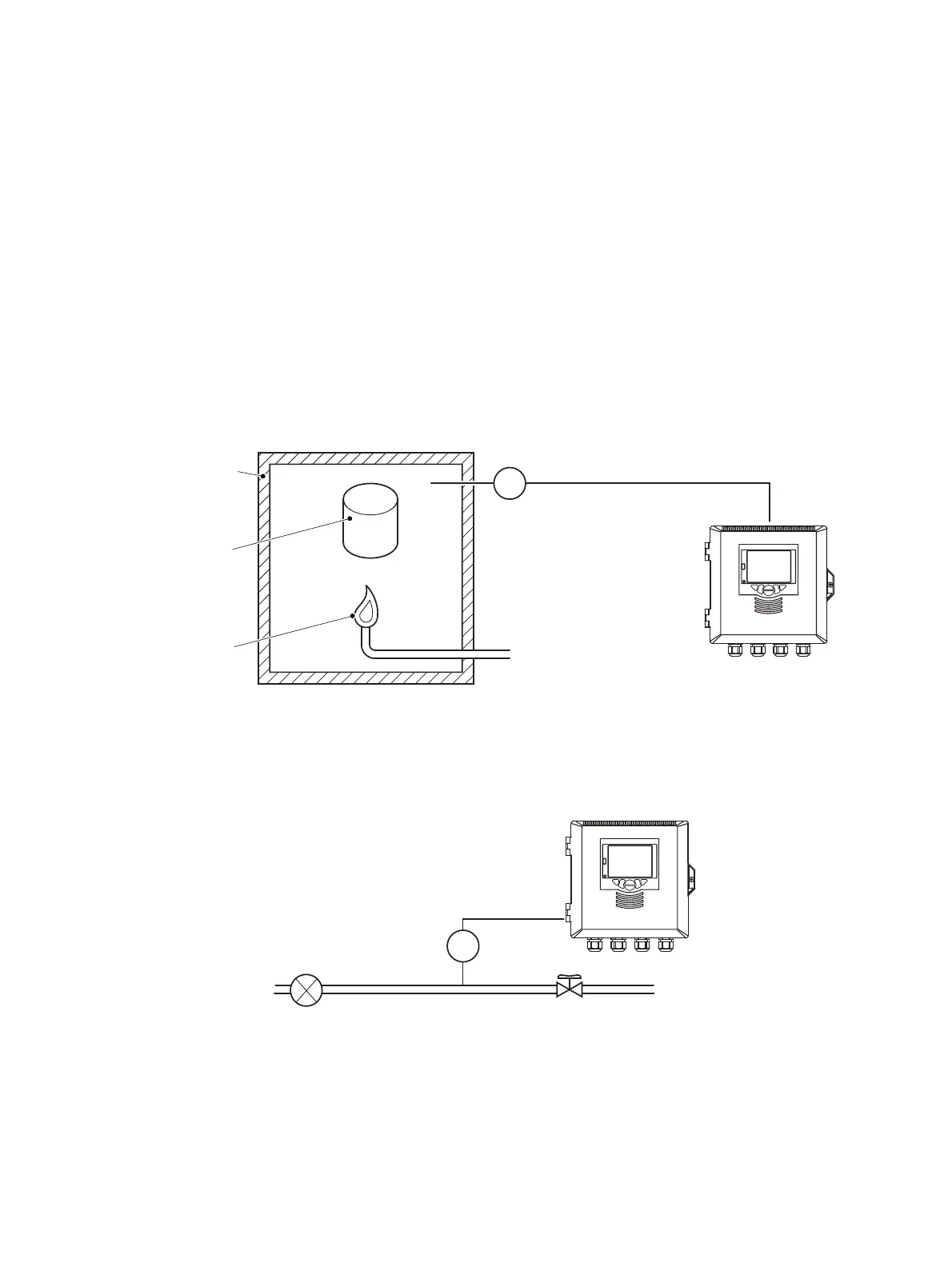

In this example, the CMF160 is indicating the temperature of a heat treatment furnace:
Single PV with totalization
This template adds totalization to the single PV indication template.
In this example, the CMF160 is monitoring a pipeline to provide indication of instantaneous flow rate and totalization and could
be connected to the flowmeter via an analog (for example 4 to 20 mA) or frequency signal:
PV
TT
Load
Gas Feed
Furnace
Burner
