Electromagnetic Flowmeter
COPA-XE / MAG-XE

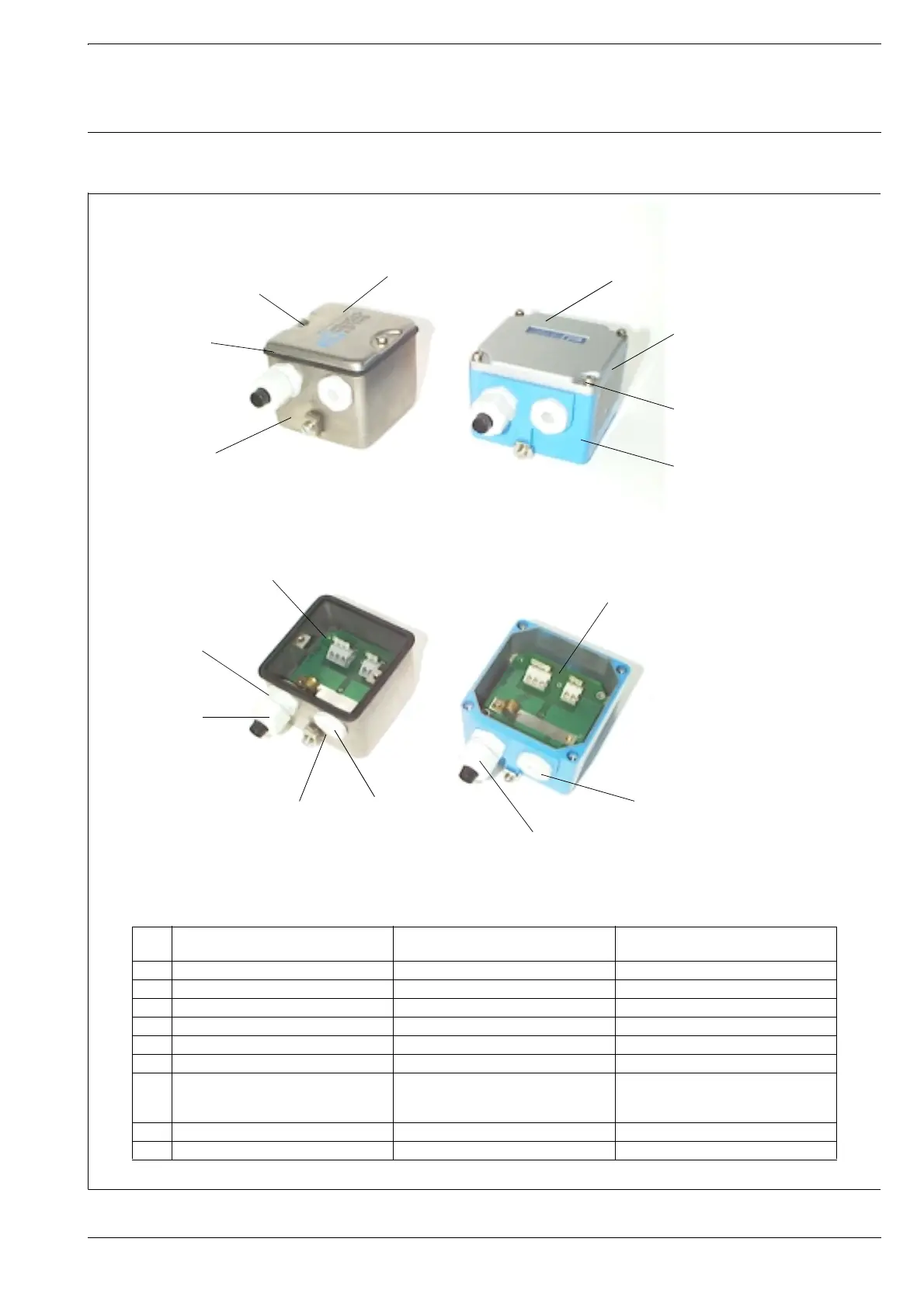

7.3 Replacement Parts for Flowmeter Primary
Connection Box
Flowmeter Primary
Stn. Stl. Design (Series 2000)
Connection Box, Flowmeter Primary
Aluminum Design (Series 4000)
No. Description Connection Box for Series 2000
Part Number
Connection Box for Series 4000
Part Number
1 Housing cover D612A127U01 D612A152U01
2 Housing cover gasket D333F016U01 D333F022U01
3 Cable connector D150A008U02 (Pg 13.5) D150A004U14 (M20 x 1.5)
4 Seal ring for cable connector D150Z007U06 -
5 Seal plug D150Z007U05 D150Z007U08 (M20 x 1.5)
6 Seal plug gasket D150Z007U06 -
7 Screw M4 x 14 with
flat washer and
spacer
D396B013U01 and
D115B004U01 and
D375A018U01
D009G113AU20
D085A021BU20
D106A001U25
8 Connection box, lower section D612A128U01 D612A153U09
9 Connection board, compl. D684A690U02 D685A862U02
1
7
2
8
2
1
7
8
3
9
5
4
9
3
65
Fig. 20
