36 CoriolisMaster FCB400, FCH400 CORIOLIS MASS FLOWMETER | CI/FCB400/FCH400-EN REV. H
… 5 Installation
… Installing the transmitter in the remote mount design

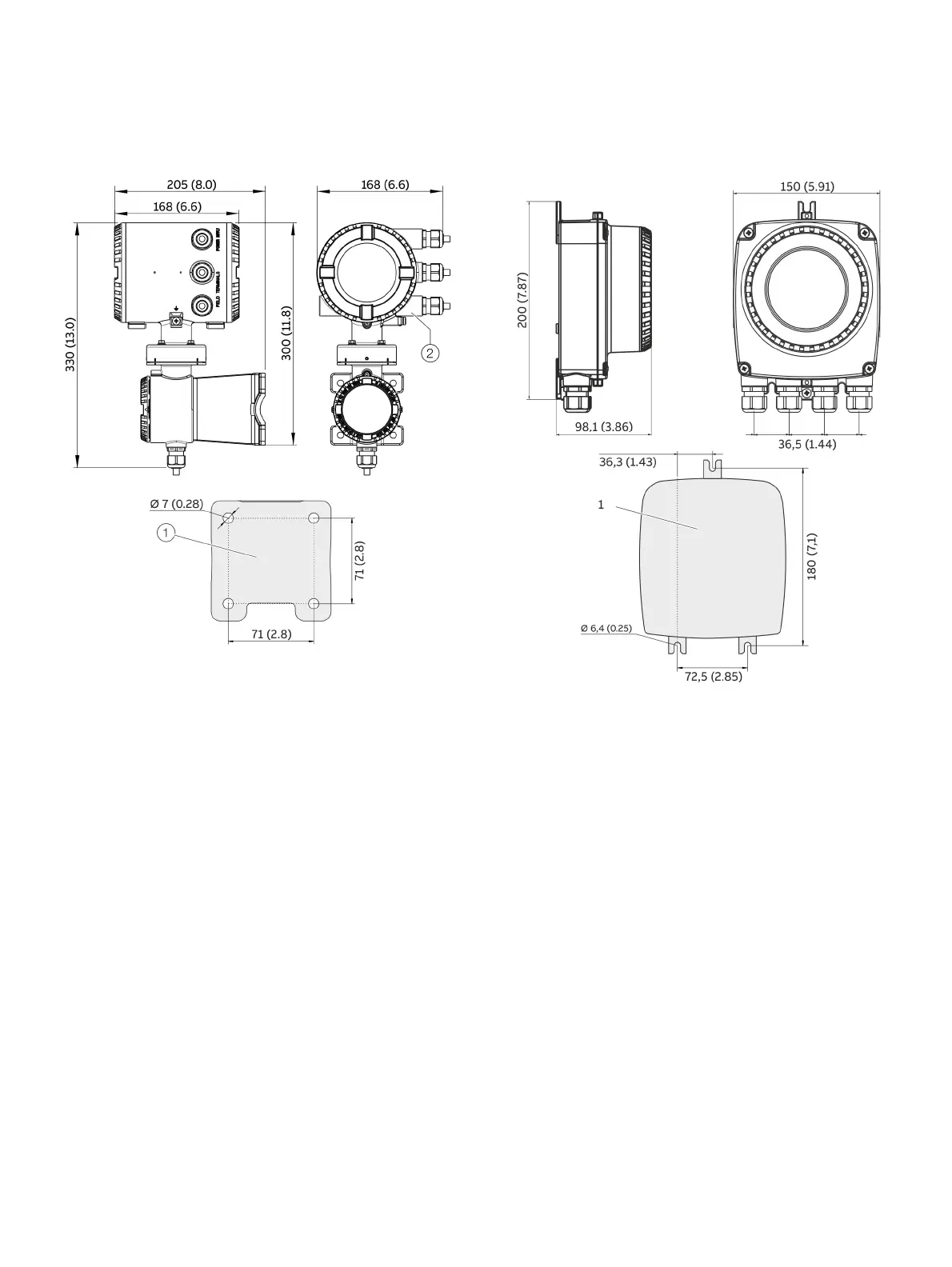

1 Hole pattern for mounting holes
2 Female thread (either ½ in NPT or M20 × 1.5), see model coding. In the
case of a ½ in NPT, there is a plug instead of a cable gland.
Figure 17: Mounting dimensions dual-compartment housing
1 Hole pattern for mounting holes
Figure 18: Mounting dimensions single-compartment housing
