… 6 Electrical connections
… Digital communication
Topology No. Ethernet cables
connected
No. wires in
Ethernet cable
PoE Port Clamp Function Cable
Ring or daisy-chain 24*No11 RD+ white / orange
2 RD− orange
3 TD+ white / green
4 TD− green
21 RD+ white / orange
2 RD− orange
3 TD+ white / green
4 TD− green
* If you use 8-wire cables, 4 wires will not be connected.

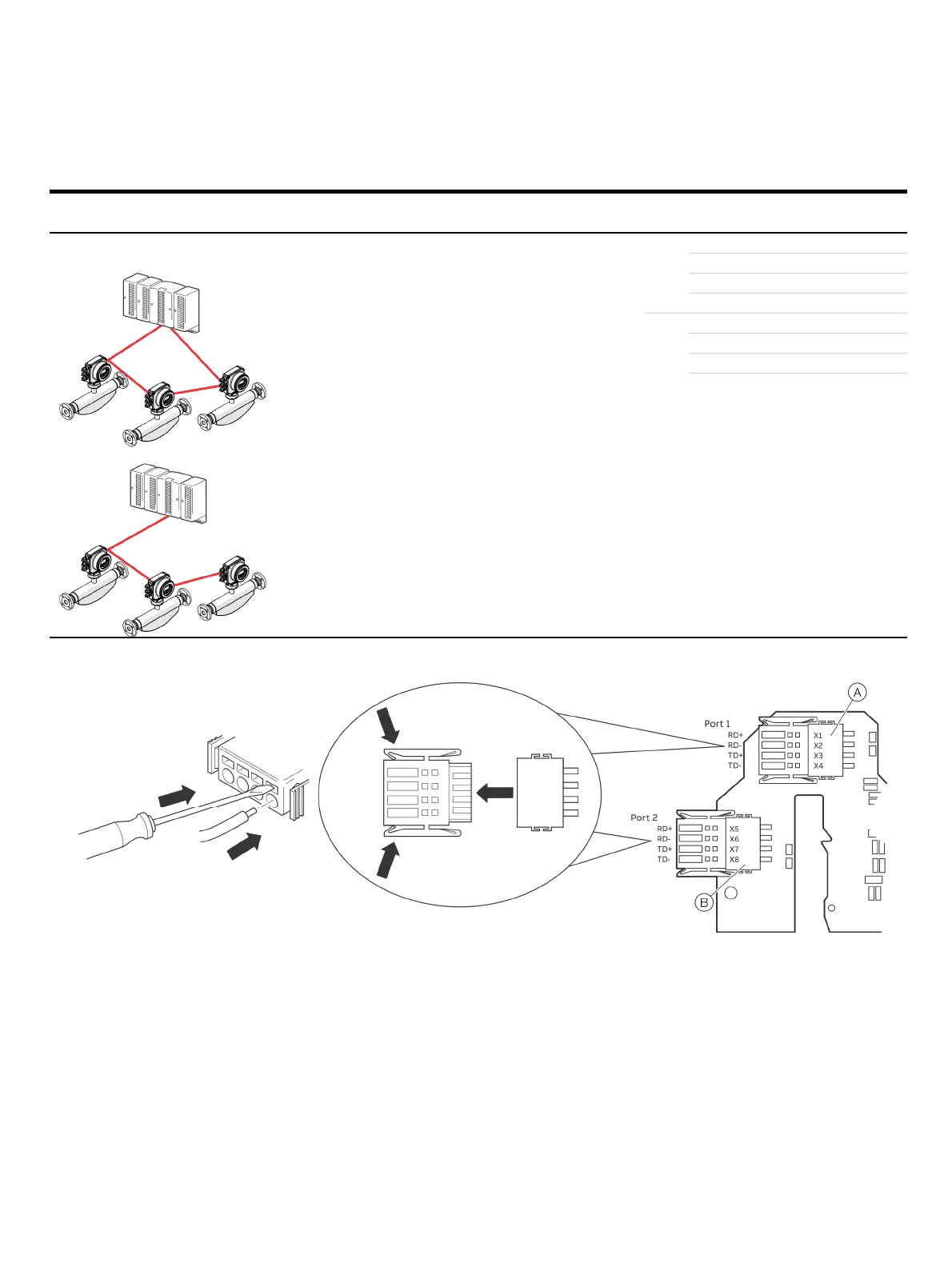

Connect the retractable plug to the Ethernet card
A Port 1 B Port 2
Figure 58: Ethernet card connection
