CoriolisMaster FCB400, FCH400 CORIOLIS MASS FLOWMETER | CI/FCB400/FCH400-EN REV. H 75

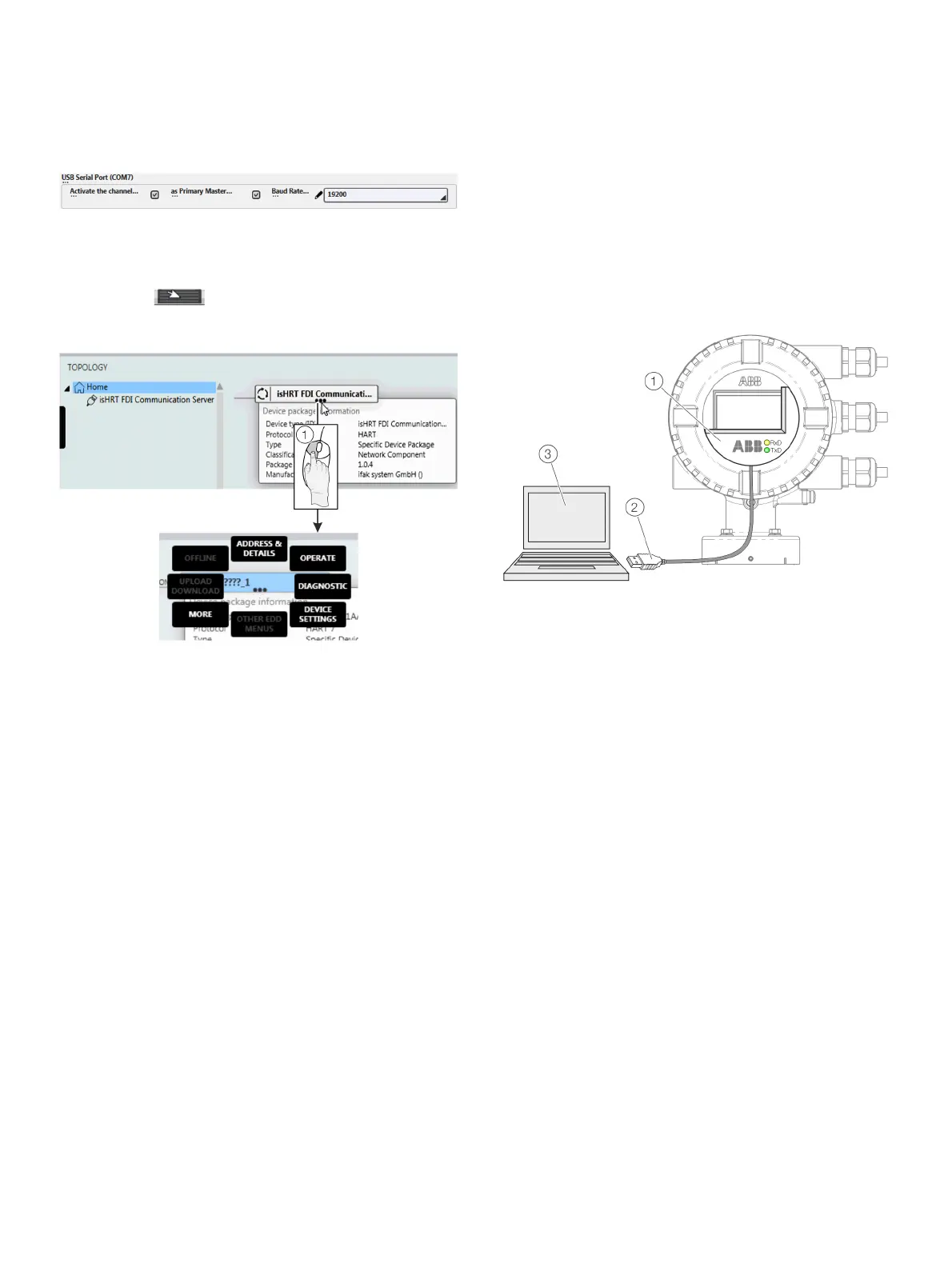

Figure 67: Select FIM – COM-Port
8. Select the corresponding COM port. Close the menu by
clicking on “send”.
9. By using the menu button on the left side, the
flowmeter is displayed under ‘TOPOLOGY’.
Figure 68:
All the submenus can be accessed by clicking the three points
below the tag name of the flowmeter with the left mouse
button
1 .
Parameterization via the infrared service port adapter
Configuration via the infrared service port adapter on the device
requires a PC / notebook and the FZA100 infrared service port
adapter.
By combining the HART-DTM and the software ‘ABB AssetVision’
available at www.abb.com/flow, all parameters can also be set
without a HART connection.
1 Infrared service port adapter
2 USB-interface cable
3 PC / Notebook running ABB
AssetVision and HART DTM
Figure 69: Infrared service port adapter on the transmitter (example)
1. Position the infrared service port adapter on the front plate
of the transmitter as shown
2. Insert USB interface cable into a free USB female connector
on the PC / notebook.
3. Switch on the device power supply.
4. Start ABB AssetVision and perform the parameterization of
the equipment.
Detailed information on operating the software is available in
the relevant operating instructions and the DTM online help.
