Rotate LCD indicator – dual-compartment housing
The LCD indicator can be rotated in three increments of 90°
each.

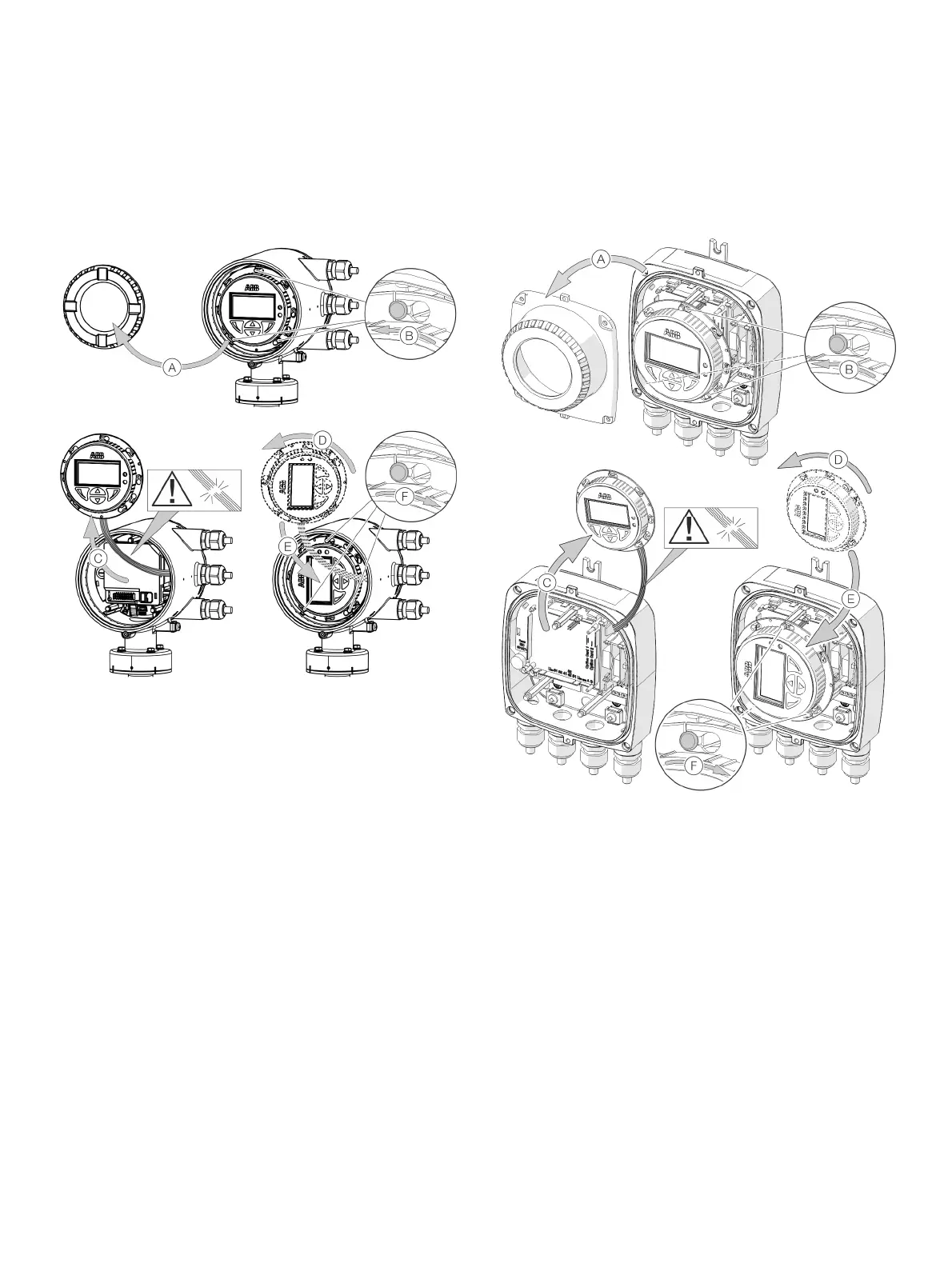

Figure 22: Rotating the LCD indicator
Turn the LCD indicator:
1. Open housing
A, see Opening and closing the housing
on page 37.
2. Perform steps
B to F.
Rotate LCD indicator – single-compartment housing
The LCD indicator can be rotated in three increments of 90°
each.
Figure 23: Rotating the LCD indicator
Turn the LCD indicator:
1. Open housing
A, see Opening and closing the housing
on page 37.
2. Perform steps
B to F.
